SGD-6M 6 MHz Dual Channel DDS Function Generator
Entry-level 6 MHz DDS with 200 MSa/s, LCD display, USB interface and 60 MHz frequency counter — everything needed for basic bench signal generation.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

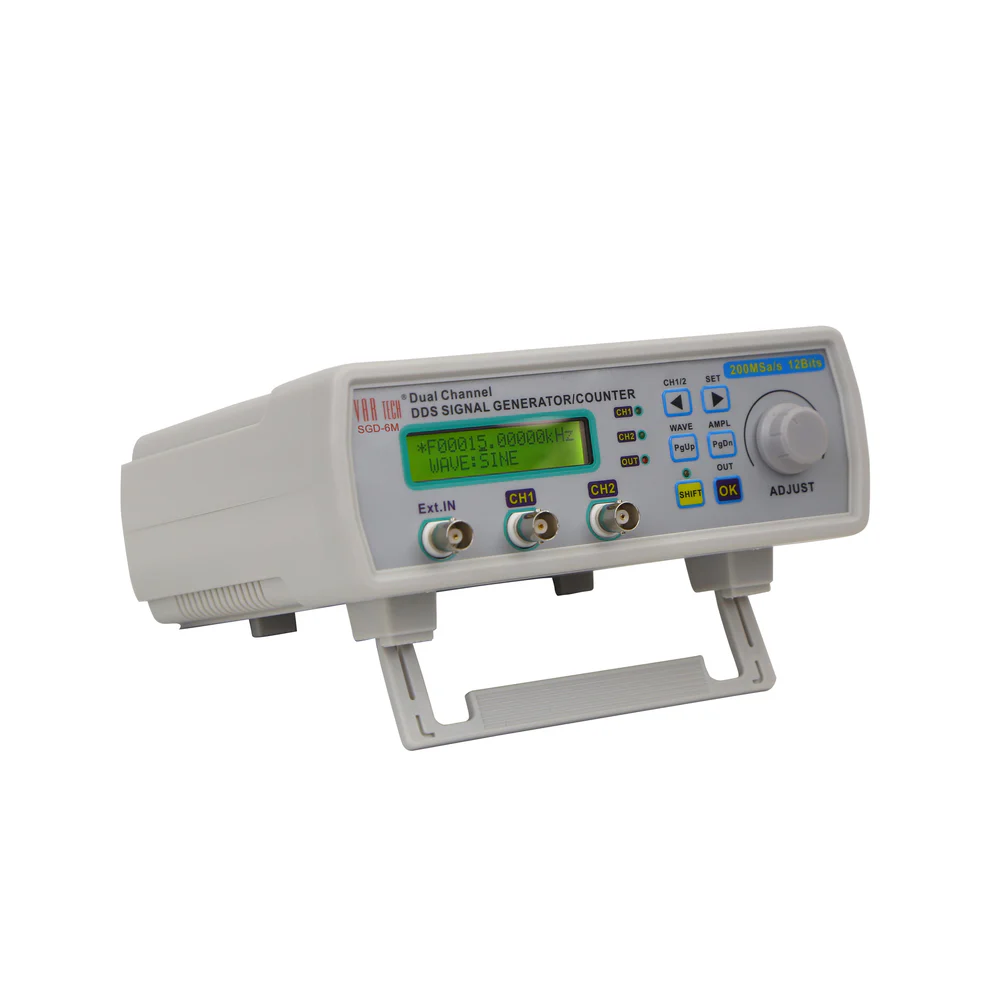

The Vartech SGD-6M is a 6 MHz dual-channel DDS function generator with 200 MSa/s sampling rate, 12-bit resolution and a 16×2 backlit LCD display. It generates sine, square, triangle, sawtooth, TTL digital and 16 arbitrary waveforms. Amplitude is 5 mVpp to 20 Vpp with −20 dB attenuation. A multifunction frequency counter covers 0.1 Hz to 60 MHz. DC offset, linear/log sweep, burst, invert and settings store/recall are included. USB and TTL external interface. Powered by DC 5V adaptor (220V AC supplied).
Key Features
- 6 MHz output; dual independent channels
- 200 MSa/s, 12-bit resolution
- Sine, square, triangle, sawtooth, TTL digital and 16 arbitrary waveforms
- Amplitude: 5 mVpp ~ 20 Vpp; −20 dB attenuation
- Frequency counter: 0.1 Hz ~ 60 MHz
- DC offset, sweep (Lin/Log), burst, invert, store/recall
- 16×2 backlit LCD; USB & TTL external interface
Technical Specifications
| Channels | 2 (Dual Channel) |
| Frequency Range | 6 MHz (10 mHz resolution) |
| Sampling Rate | 200 MSa/s (12-bit vertical resolution) |
| Waveforms | Sine, Square, Triangle, Sawtooth, TTL Digital Signal Wave + 16 Arbitrary Waveforms |
| Amplitude | 5 mVpp ~ 20 Vpp; −20 dB attenuation facility |
| Frequency Counter | 0.1 Hz ~ 60 MHz |
| Other Functions | DC Offset, Sweep (Lin / Log), Burst, Invert, Settings Store/Recall |
| Display | 16×2 LCD with Backlight |

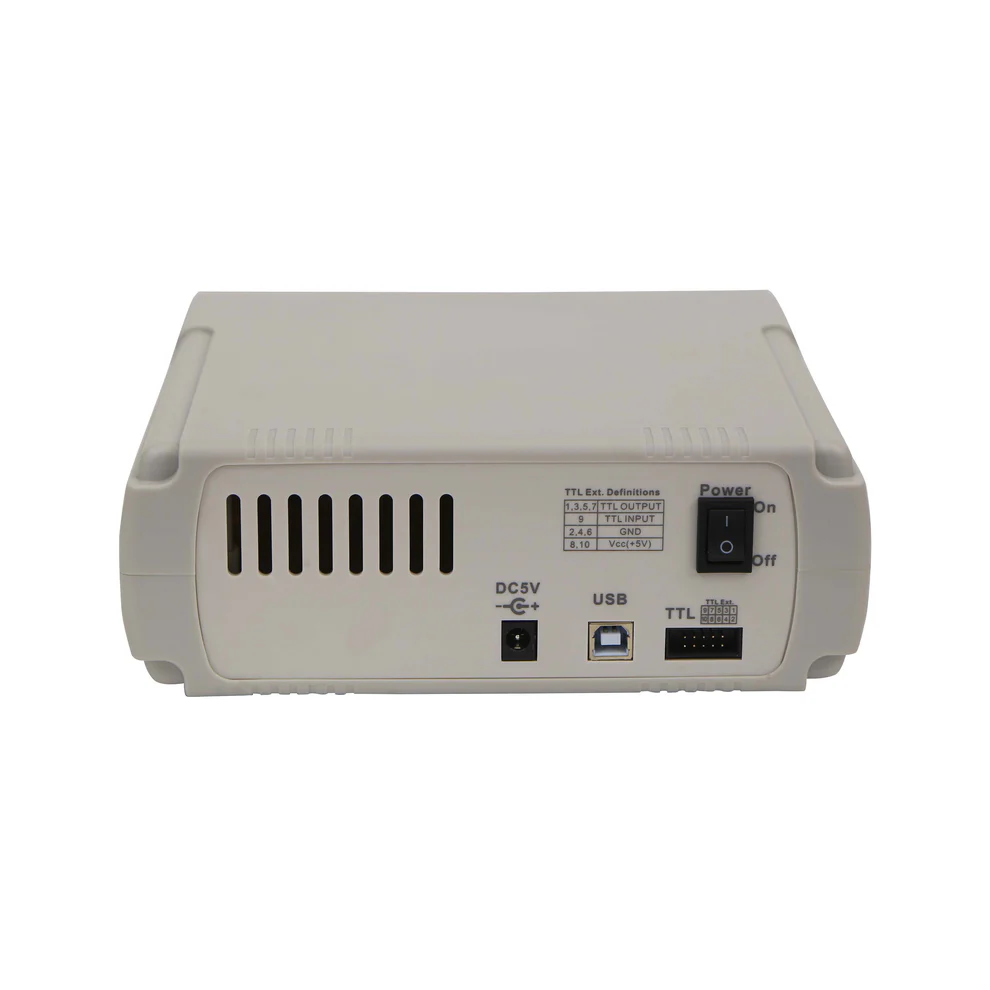

| Interface | USB & TTL External |
| Power Supply | DC 5V ±0.5V via adaptor (adaptor for 220 V AC ±10%, 50 Hz provided) |
| Accessories | Power adaptor, user manual, S/W CD, USB cable, BNC cable |
| Dimensions & Weight | 180 × 190 × 71 mm | Approx. 600 g (+450 g adaptor) |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
