— Vartech® Oscilloscopes
SS-5080DS4 80 MHz 4-Channel Digital Storage Oscilloscope (DSO)
4-channel 80 MHz DSO with 1 GS/s, 7-inch TFT, 64K record length and built-in DVM — see four signals simultaneously.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

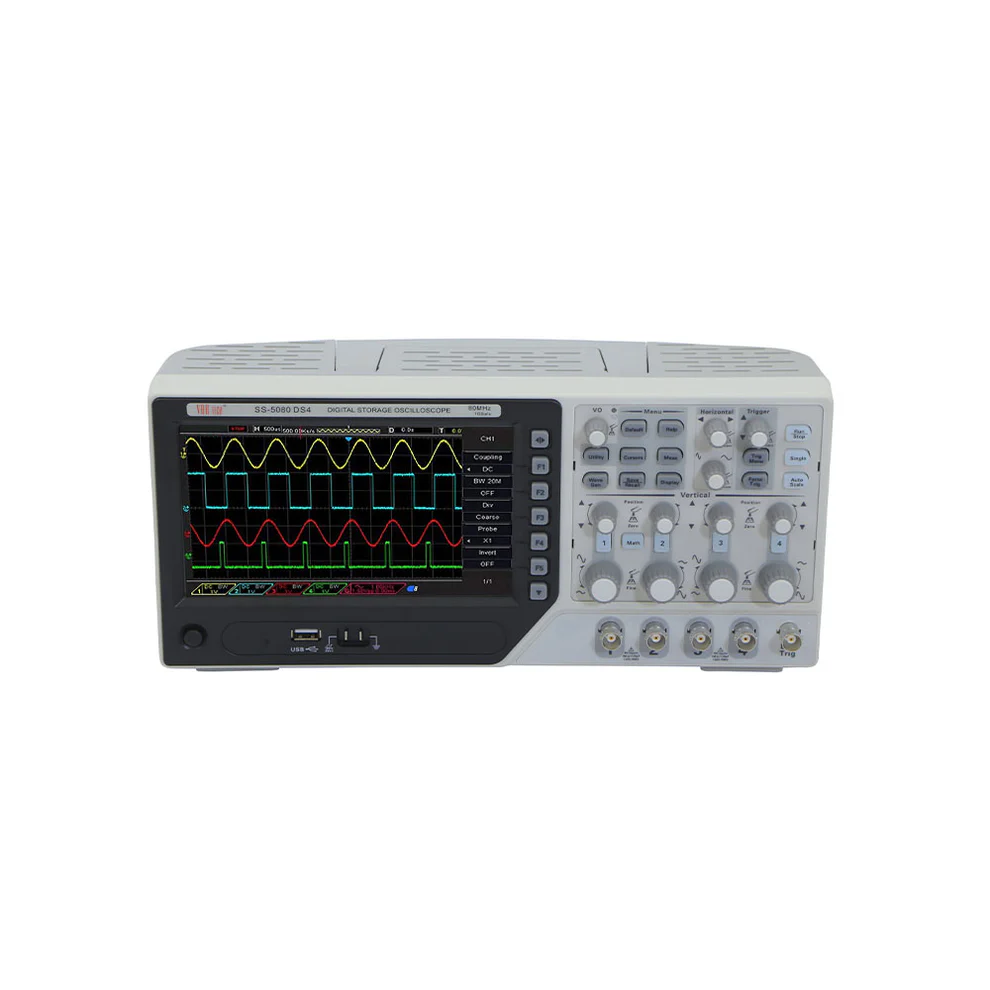

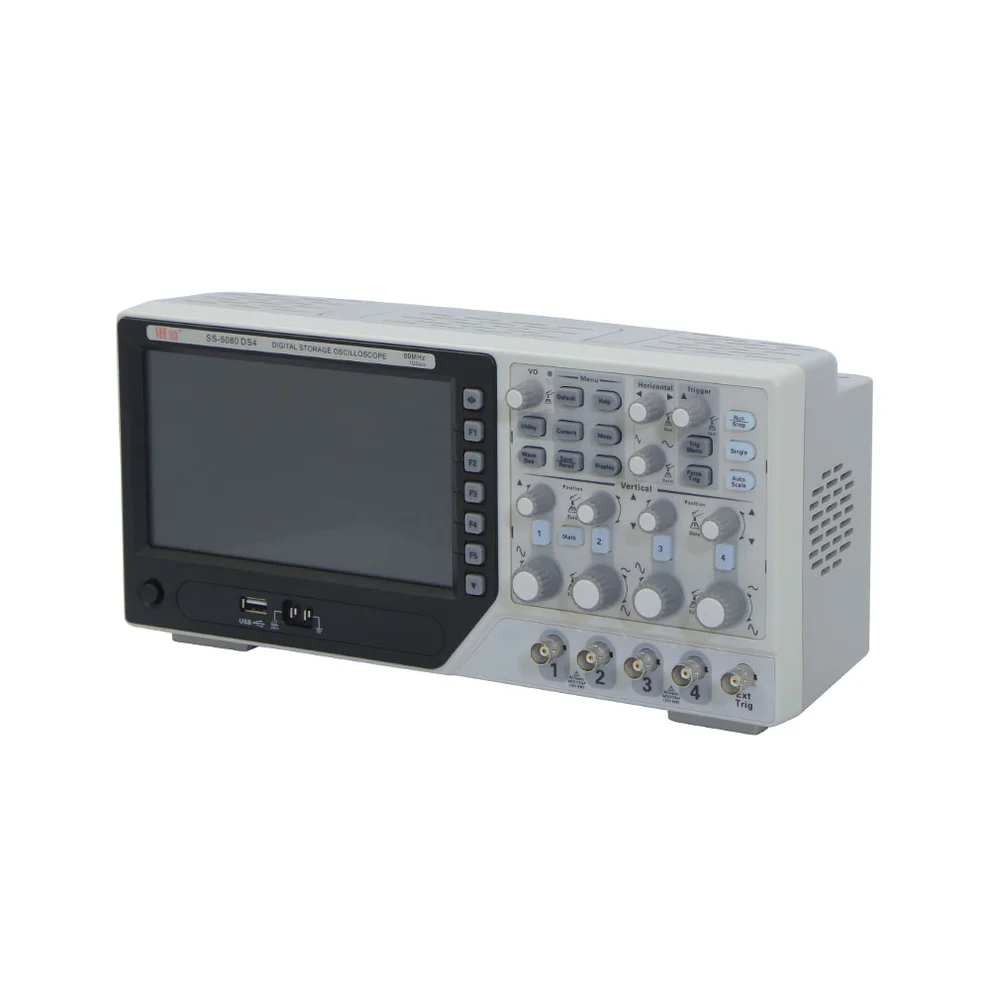

The Vartech SS-5080DS4 is an 80 MHz 4-channel digital storage oscilloscope with 1 GS/s real-time sampling (50 GS/s equivalent), a 7-inch 800×480 high-resolution TFT LCD display, 64K record length per channel, USB host and device, FFT, maths, 32 types of auto-measurement and a built-in DVM function. Four independent channels allow engineers to observe multiple signals simultaneously — essential for I²C/SPI bus analysis, motor drive phase relationships, multi-rail power supply verification and any application where signal interaction between channels must be seen at once. Auto Setup provides quick waveform display.
Key Features
- 4 independent channels — observe up to 4 signals simultaneously for bus protocols and multi-phase systems
- 80 MHz bandwidth (−3 dB); rise time ≤4.4 nS
- 1 GS/s real-time sampling (50 GS/s equivalent) — captures fast edges accurately
- 500 µV/div to 10 V/div vertical deflection — handles millivolt sensor signals and power-level waveforms
- 64K record length for detailed waveform capture
- 7-inch 800×480 TFT LCD — large, high-resolution colour display
- FFT, maths, 32 types of auto-measurement, dual cursor (ΔV, ΔT, 1/ΔT)
- Built-in DVM function, USB host & device, auto setup
Technical Specifications
| Bandwidth | DC ~ 80 MHz (−3 dB); Rise time ≤4.4 nS |
| Channels | 4 (Four Channel) |
| Real-Time Sampling Rate | 1 GS/s (50 GS/s equivalent) |
| Vertical Deflection | 500 µV / div ~ 10 V / div |
| Sweep Time | 100 S ~ 2 nS / div |
| Record Length | 64K sampling points |
| Waveform Acquisition Rate | ≥2000 wfms/s |
| Display | 7" TFT LCD, 800×480 resolution |
| Measurements | 32 types of auto-measurement; dual cursor (ΔV, ΔT, 1/ΔT) |
| Math & Analysis | FFT, Maths; DVM function built-in |
| Interface | USB Host & USB Device |
| Other Features | Auto Setup; probe attenuation ratio setup per channel; waveform & setup storage |
| Power Supply | AC 100 ~ 240 V, 50 / 60 Hz |
| Accessories | User's manual, mains cord; ratio probes optional |
| Dimensions & Weight | 318 × 110 × 150 mm | Approx. 2.9 Kg |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
