Vartech® SMD Re-Work Systems & Tools

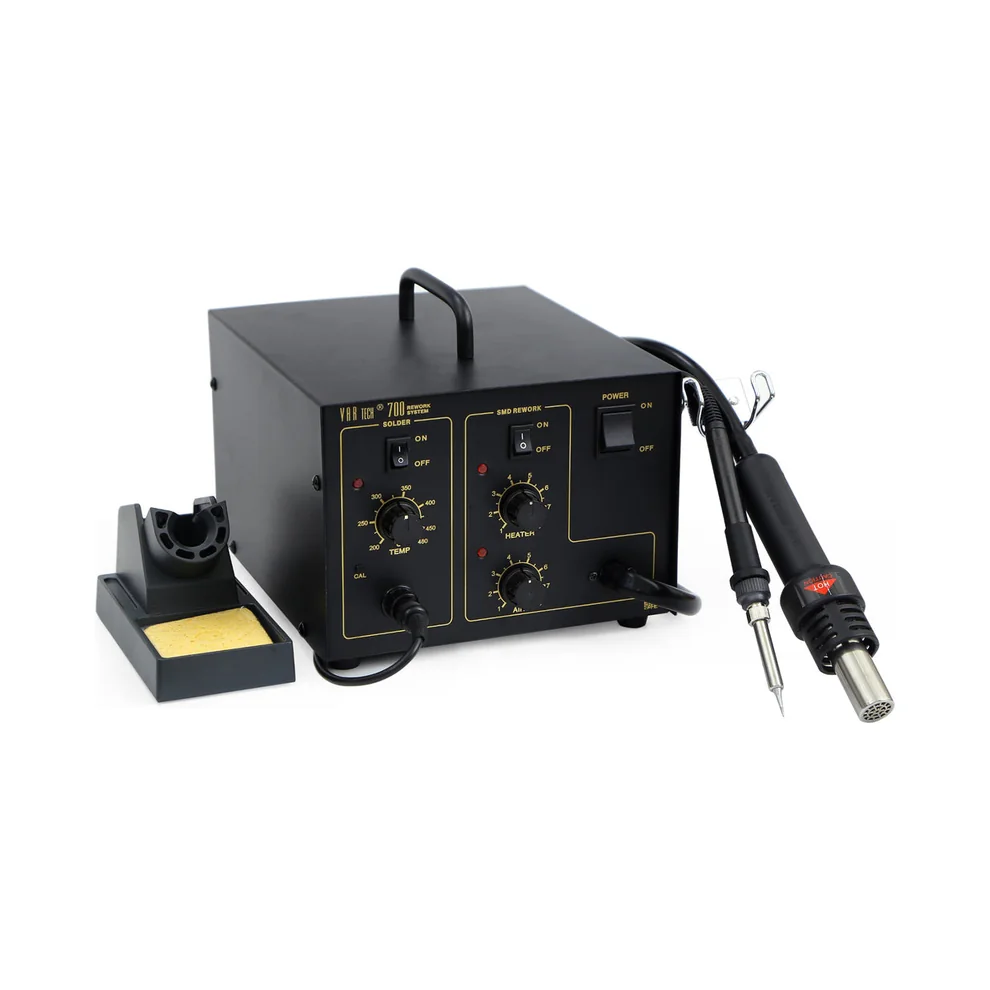

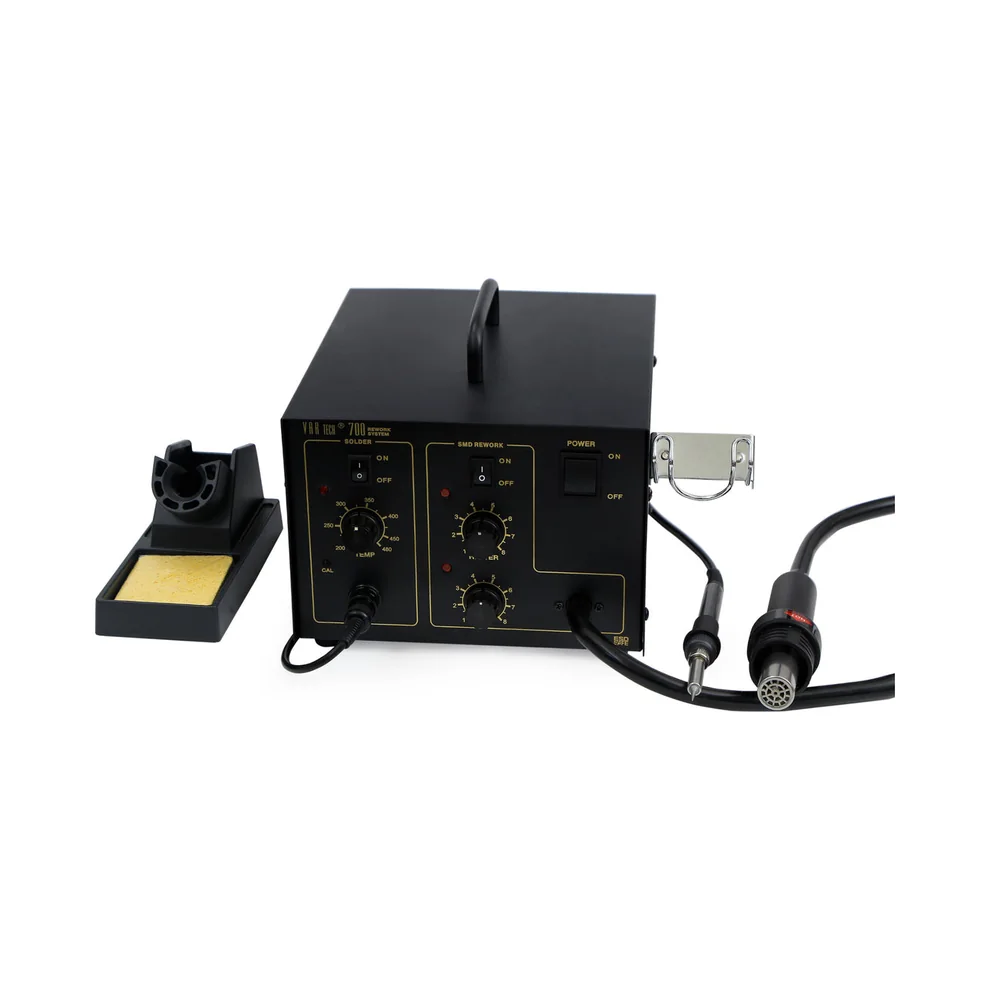

700 ESD 2-in-1 Soldering and SMD Re-Work Station, 270 W + 50 W

Vartech 700 is the Perfect Combination of 936A Soldering Station and 850A S.M.D.

Download Catalogue (PDF) Request a Quote Enquire on WhatsApp

Authorised Distributor

Genuine Vartech product
Expert technical support
Pan-India delivery
Competitive pricing

About This Instrument

Vartech 700 is the Perfect Combination of 936A Soldering Station and 850A S.M.D. Re-Work Station which are the best in their own category. Multifunction rework system which has the Best of both Worlds. 100 ºC ~ 420 ºC (S.M.D) & 200 ºC - 480 ºC (Soldering) 270 W (S.M.D.) & 50 W (Soldering) Industrial Grade Construction & Components Soldering & Hot air both can be used simultaneously or separately switched ON/OFF. Best in class performance & Reliability Enclosed pump results is very low noise Powerful starting, Rapid Heating & Air volume linearly adjustable. Various types of Nozzles & Tips available for different applications. ESD SAFE. This is a Heavy Duty 2 in 1 Station which can be used for very long hours continuously especially in assembly lines.

Key Features

2 in 1 Soldering system
Both can be used together & separately switched On/Off
Powerful starting
Rapid Heating
Air volume linear adjustable
ESD Safe
Various types of Nozzles & Tips available for different applications

Technical Specifications

SMD re-work section	270 W; air flow 24 L / Min. (max.); 100 ºC ~ 420 ºC
Soldering section	50 W; 200 ºC ~ 480 ºC; stability ± 2 ºC
Operation	220 V AC, 50 Hz
Dimensions	225 × 165 × 145 mm
Weight	Approx. 5 Kg

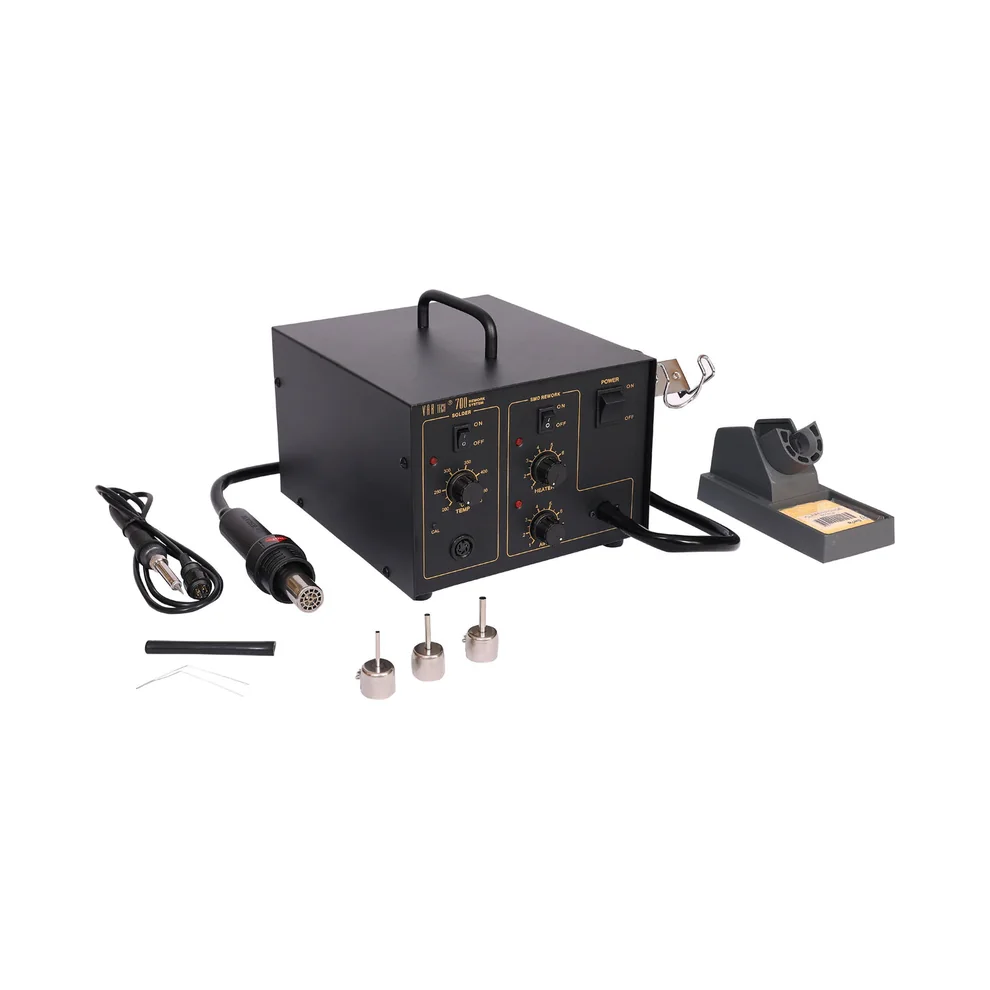

Supplied as standard	3 nozzles and 1 pointed tip
