Vartech® SMD Re-Work Systems & Tools

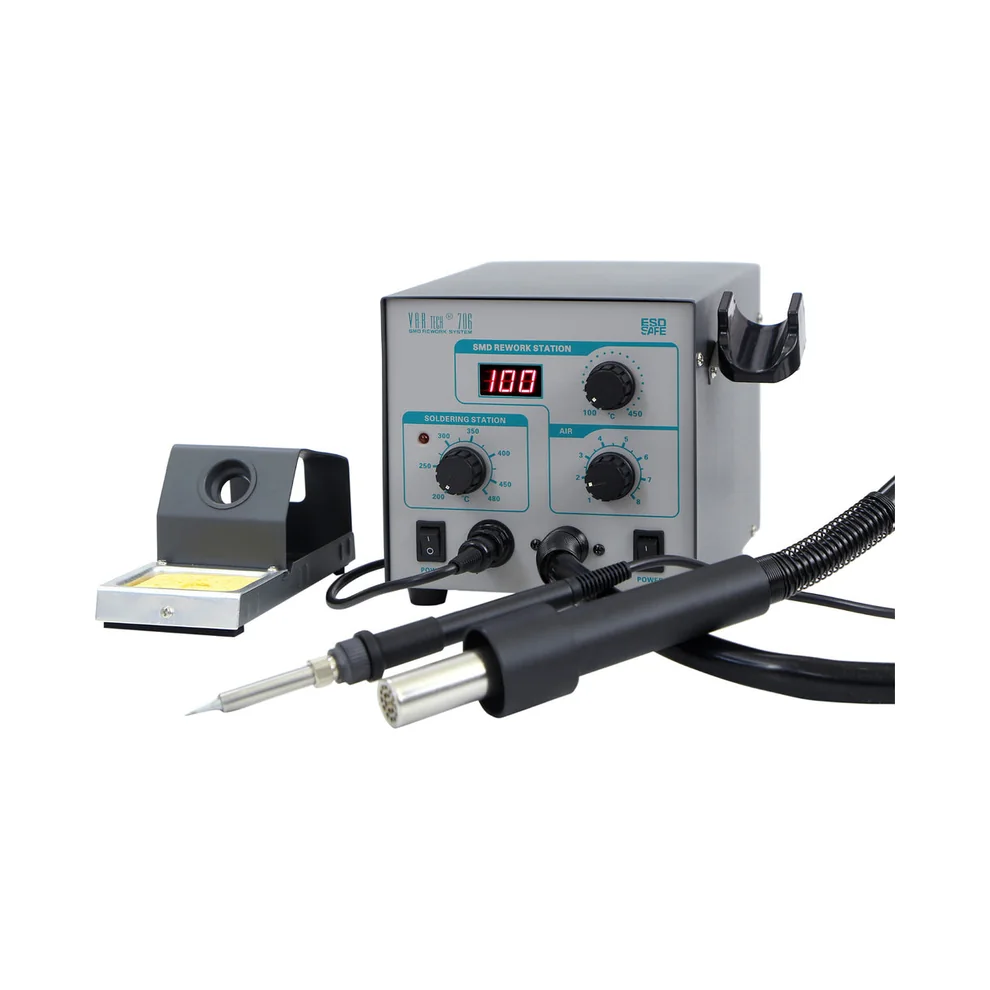

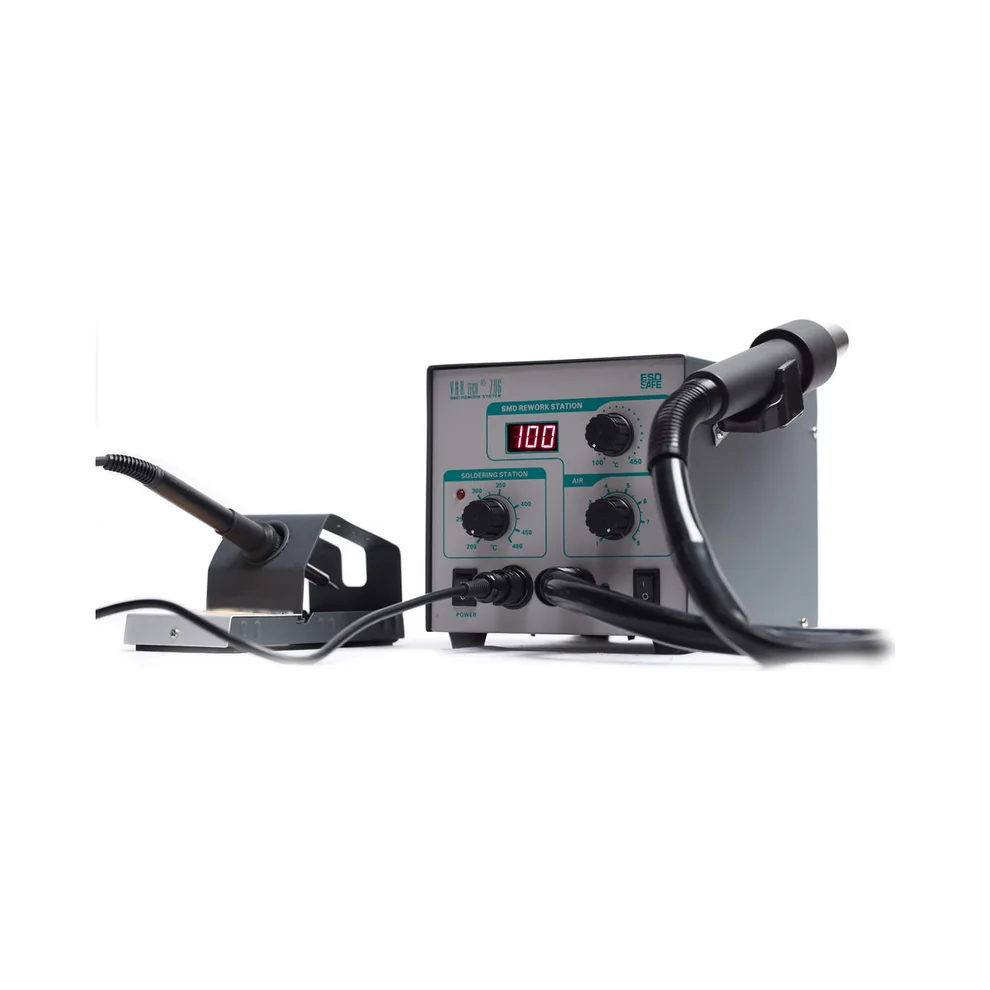

706 2-in-1 Soldering and SMD Re-Work Station, 580 W + 50 W

Multifunction rework system.

Download Catalogue (PDF) Request a Quote Enquire on WhatsApp

Authorised Distributor

Genuine Vartech product
Expert technical support
Pan-India delivery
Competitive pricing

About This Instrument

Multifunction rework system. Device includes 50 W soldering station 200 ºC ~ 480 ºC (classic soldering iron) and 580 W hot-air soldering station 100 ºC ~ 450 º. Features: Separate switches allow Individual / simultaneous operation. Long lifetime heater. Auto sleep/ OFF function available. Digital temperature calibration, easy operation. Compatible with various types of soldering iron tips and nozzles. Brushless vortex fan, stepless and wide range of air volume, suitable for various applications. Automatic cooling system can prolong the lifetime of heating element and protect the hot air handle. Precise temperature controlled by closed-loop sensor. Light soldering iron handle, easy to use.

Key Features

2 in 1 Soldering system
With Digital Display
Japanese Technology, ESD Safe
Both can be used together & separately switched On/Off
Powerful starting, Rapid Heating
Air volume linear adjustable
Various types of Nozzles & Tips available for different applications

Technical Specifications

SMD re-work section	580 W; air flow 50 L / Min. (max.); 100 ºC ~ 450 ºC; soft air rotary pump; LED digital display (1 ºC resolution)
Soldering section	50 W; 200 ºC ~ 480 ºC; stability ± 2 ºC; tip to ground resistance 2 Ω, potential 2 mV
Operation	220 V AC, 50 Hz
Dimensions	160 × 200 × 150 mm
Weight	Approx. 3 Kg

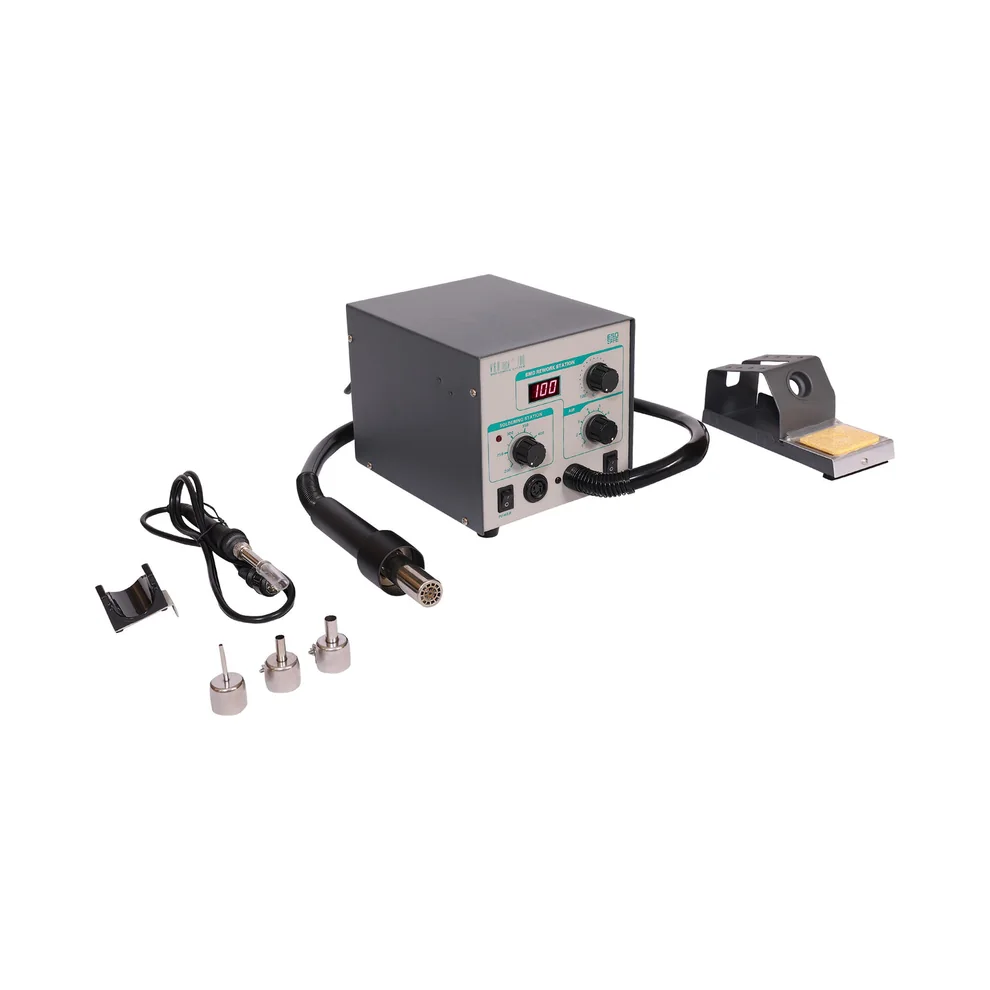

Supplied as standard	3 nozzles and 1 pointed tip
