Vartech® Soldering & De-Soldering Stations

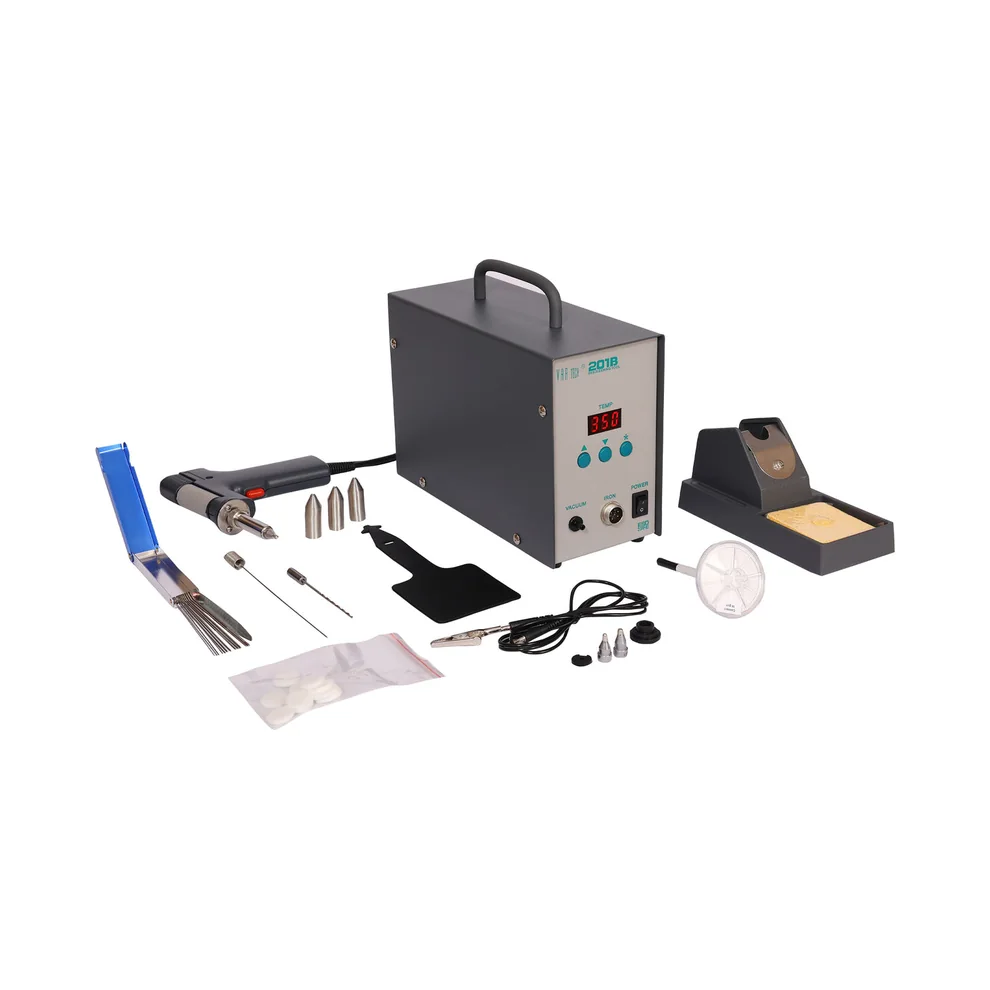

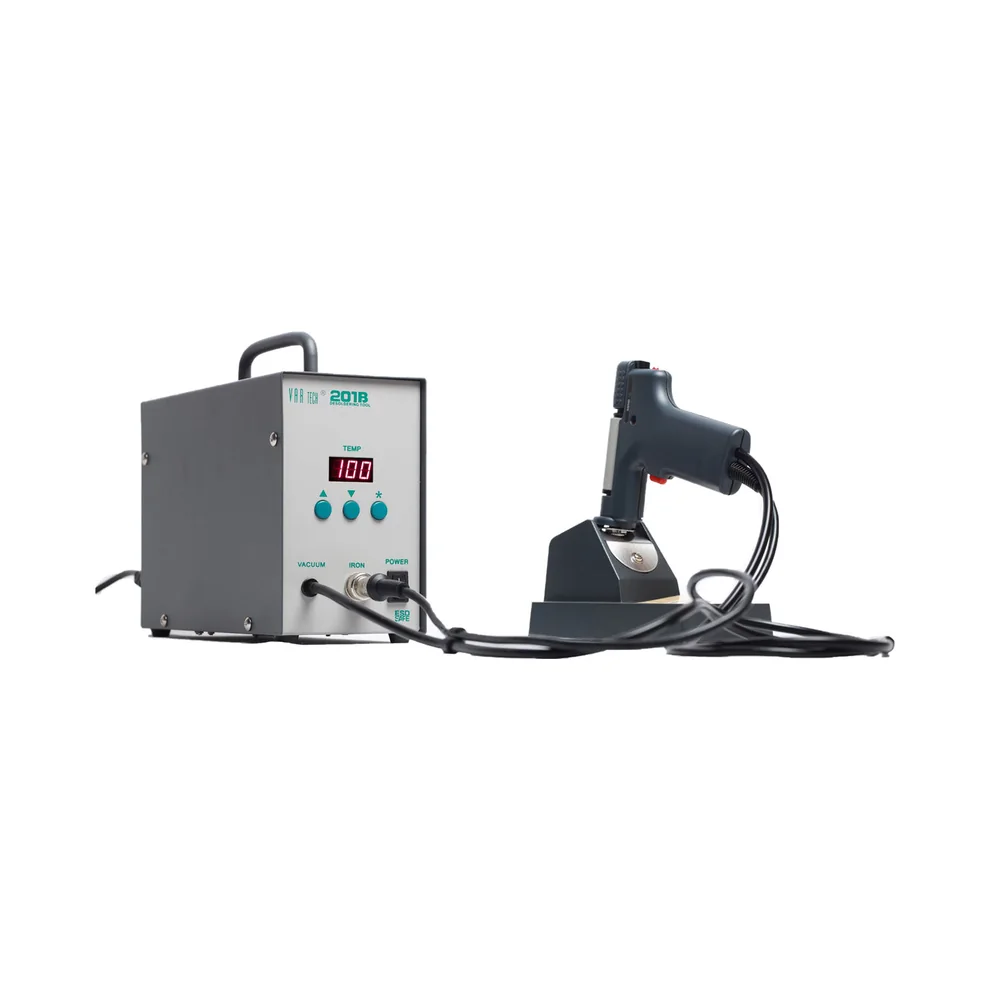

201 B De-Soldering Station

Trusted by hundreds of industries for its performance and reliability.

Download Catalogue (PDF) Request a Quote Enquire on WhatsApp

Authorised Distributor

Genuine Vartech product
Expert technical support
Pan-India delivery
Competitive pricing

About This Instrument

Trusted by hundreds of industries for its performance and reliability. DE-SOLDERING TOOL, 90 W / 12 V, Temp. Controlled, 200~480 °C, Digital Display of Temp. Heavy Duty High precision De-soldering station Digital display and controls High efficiency Japanese technology Rapid heating Password lock ESD safe & lead free

Key Features

Powerful Built-In Vacuum Pump Imported From Japan
Sensor closed-loop temperature control for heating system
Precise temperature
Long Life Heater 36V powered fully isolated from mains Safe and reliable
LED digital display, ESD Safe
Temperature calibrates digitally
Auto sleeping available and optional
Suction nozzles and heater are specially designed. High efficiency, Long Life
Heat resistant vacuum hose used
Lead free soldering design for main unit; Lead free de-soldering can be achieved as long as the lead free de-soldering gun is equipped

Technical Specifications

Pump	Diaphragm Type, 12V, 2A
Heating Power	90 W
Temperature Range	200 °C ~ 480 °C
Vacuum Pressure	600 mm Hg
Tip to Ground Potential	≤ 2 mV
Tip to Ground Resistance	≤ 2Ω
Dimensions	105 (L) * 250 (W) * 165 (H) mm
Weight	Approx. 4.0 Kgs.
