Vartech® Soldering & De-Soldering Stations

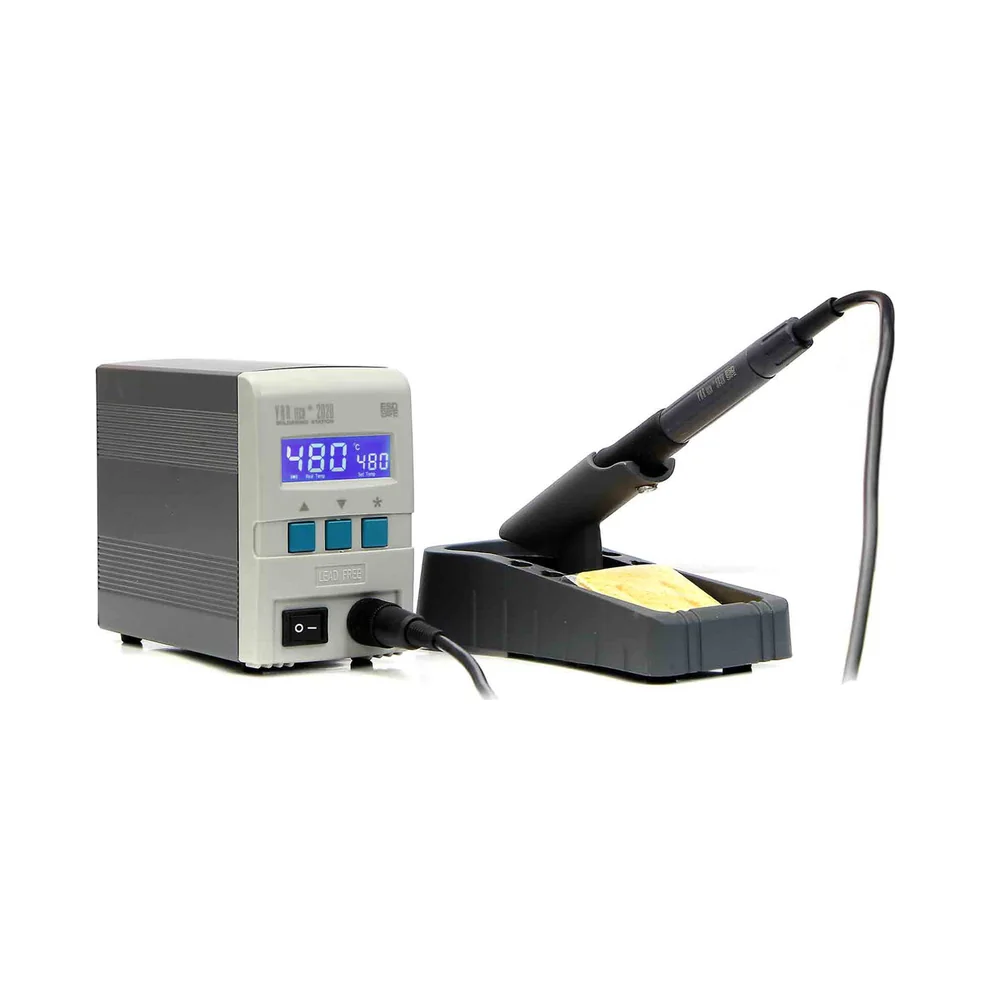

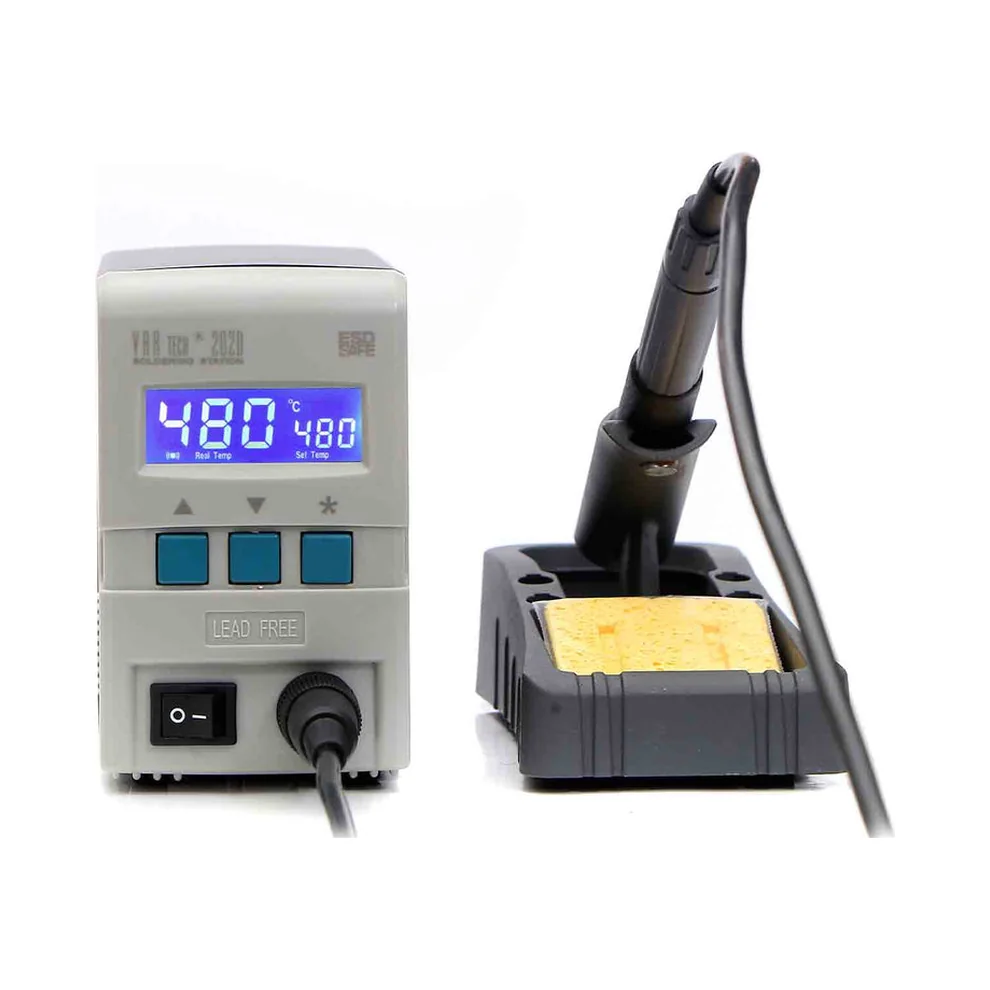

202 D Lead-Free Soldering Station, 80 W, Electromagnetic Heating

SOLDERING STATION Lead Free, 80 W / 36 V, Digital T/C, 80 ~ 480 °C

Download Catalogue (PDF) Request a Quote Enquire on WhatsApp

Authorised Distributor

Genuine Vartech product
Expert technical support
Pan-India delivery
Competitive pricing

About This Instrument

SOLDERING STATION Lead Free, 80 W / 36 V, Digital T/C, 80 ~ 480 °C Vartech 202D is an Intelligent Soldering station with the highest Accuracy and precision. Temperature adjustment from 80 °C to 480 °C, high temperature stability (±2 °C). Sensor at the tip which ensures high temperature accuracy & stability Professional soldering station with ESD safe design. Fast heating and rapid thermal recovery. Easy tip replacement PID temperature control. Easy, digital temperature calibration. Station parameters interlock by means of PIN code. LCD display. Auto sleeping and auto shut-off mode.

Key Features

Flagship Lead free Soldering station
Digital Display & Temp., Control
Electromagnetic Heating element
Large power, Sensor closer to tip
Very high accuracy
Micro computer Digital PID temperature control
Short circuit protection, Overheating protection, Overpowering protection
Power output will not vary in case of voltage fluctuation
Calibrate temperature digitally and easily
Temperature warning facility with alarm

Technical Specifications

Temperature Range	80 ºC ~ 480 ºC
Temperature Stability	± 2 ºC (Stationary air, no load)
Output Voltage / Freq.	AC 36 V, 400 KHz
Max. Power	80 W
Tip to Ground Resistance	<2Ω
Tip to Ground Potential	< 2 mV
Heating element	Electromagnetic Element
Handle wire	1.4 Mtrs.
Handle Length (W/o Power cord)	180 mm
Unit’s Power Consumption	220 V, 90W
Max Ambient Temperature	40 ºC
Dimensions	15.5 * 7.8 * 12 cm
Weight	1.2 Kg Approx.
