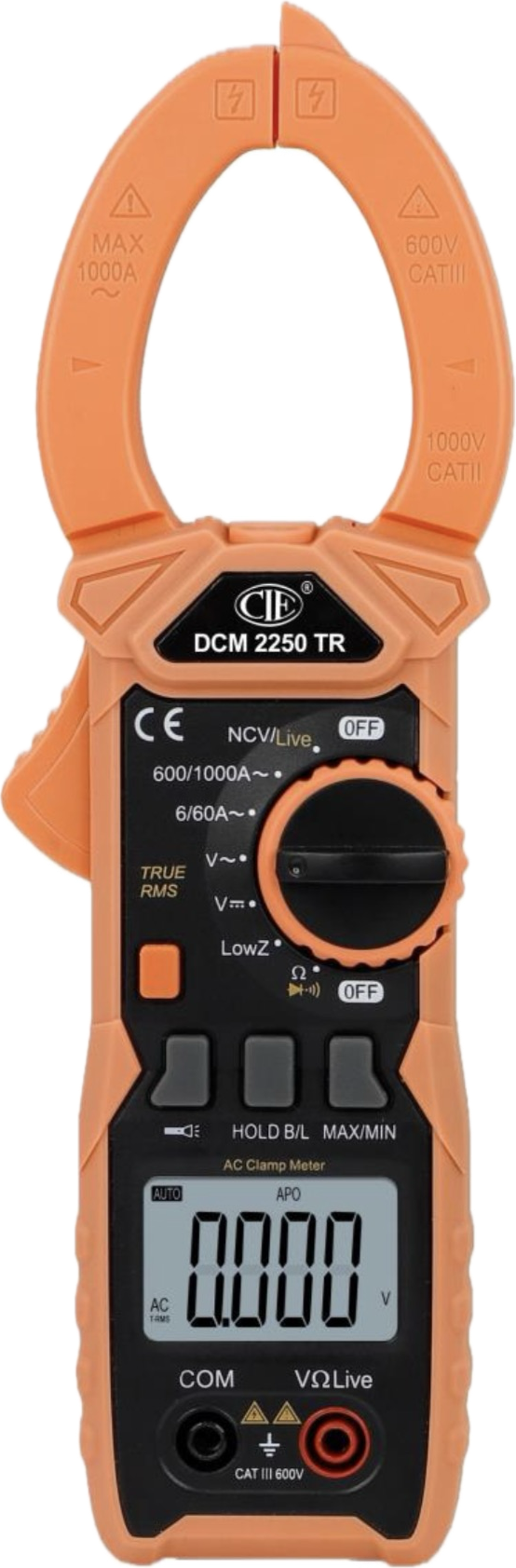

DCM 2250 TR Digital Clamp Multimeter — True-RMS AC, 1000 A
True-RMS AC clamp multimeter — 6 A/60 A/600 A/1000 A, NCV, Low-Z ACV, 6000-count. AC current only (no DC current).
CIE® Guarantee
- CIE® Registered Trade Mark
- Calibrated Before Despatch
- 12-Month Warranty
- Made in India
- Custom Ranges Available
About This Instrument
The DCM 2250 TR is a True-RMS digital clamp multimeter measuring AC current up to 1000 A across four ranges (6 A, 60 A, 600 A, 1000 A), along with AC/DC voltage, low-impedance ACV (Low Z), and resistance. This model measures AC current only — DC current measurement is not available on the DCM 2250 TR (see DCM 5410 TR for AC/DC current capability). Features include non-contact voltage (NCV) and live-wire test, 6000-count auto-ranging display, True-RMS measurement, data hold, MIN/MAX, backlight, torch, and auto power-off. Low-impedance ACV mode avoids false 'ghost voltage' readings on unloaded circuits. 40 mm jaw opening. Safety rated CAT III 600 V. Powered by 2 × AAA batteries. Weight: approx. 315 g.
Technical Specifications
| Specification | Value |
|---|---|
| AC Current Ranges | 6 A / 60 A / 600 A / 1000 A (True-RMS) |
| DC Current | Not available — AC current only on this model |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| AC Voltage (True-RMS) | 6 V / 60 V / 600 V / 750 V |
| Low Impedance ACV | 6 V / 60 V / 300 V — input impedance ≤3 KΩ |
| Resistance | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 20 MΩ / 60 MΩ |
| Display | 6000 Counts LCD, auto-ranging |
| NCV / Live Wire Test | Provided |
| Jaw Opening (Max.) | 40 mm |
| Safety Category | CAT III 600 V |
| Power Supply | 2 × AAA Batteries |
| Dimensions (L×W×H) | 230 × 75 × 40 mm |
| Weight (incl. battery) | Approx. 315 g |
| Warranty | 12 months against manufacturing defects |
What's Included
- Test Leads
- Carrying Pouch
- User Manual
- 2 × AAA Batteries
Key Applications
- AC current measurement on panels and distribution boards
- Electrical maintenance and switchgear testing
- Cable and circuit continuity and live-wire checks
