3005 B 30V / 5A Linear DC Regulated Power Supply with Output On/Off
0–30 V, 0–5 A linear DC power supply — 4-digit LED display, Output On/Off pause function, CV/CC, short-circuit protection.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

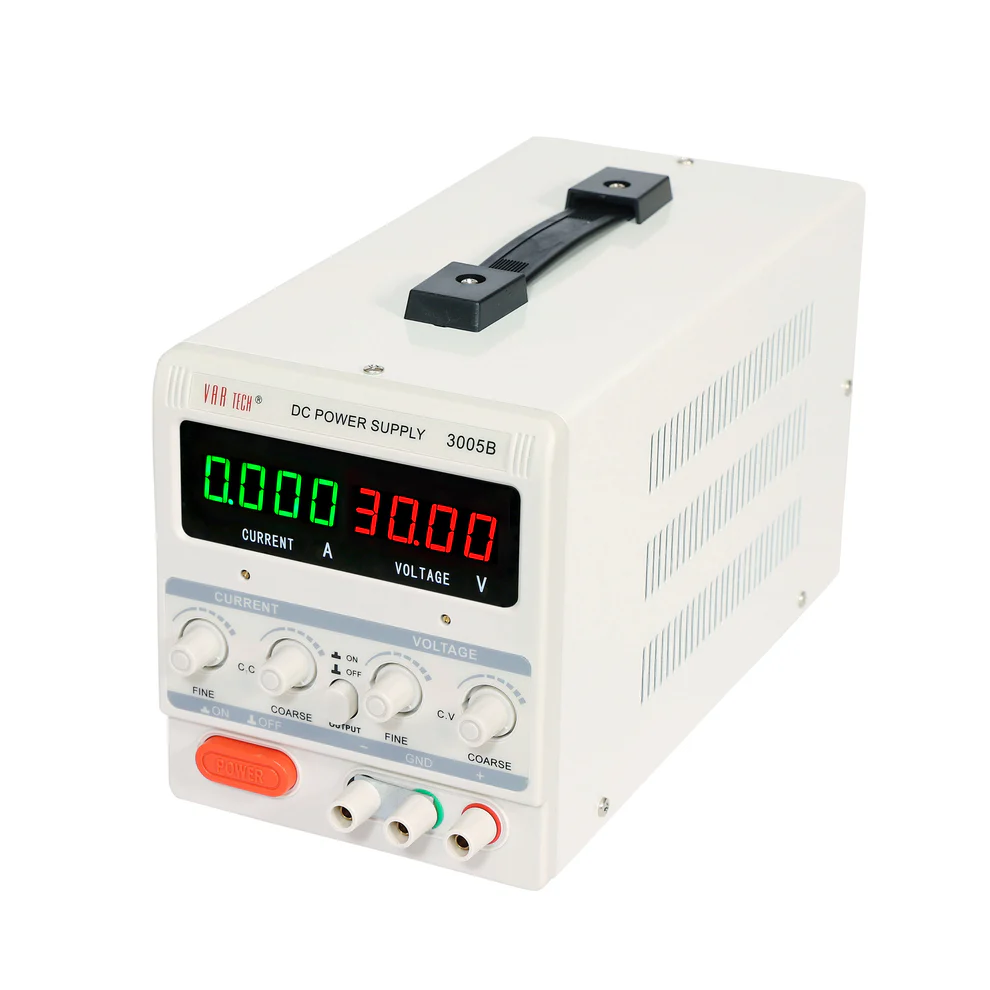

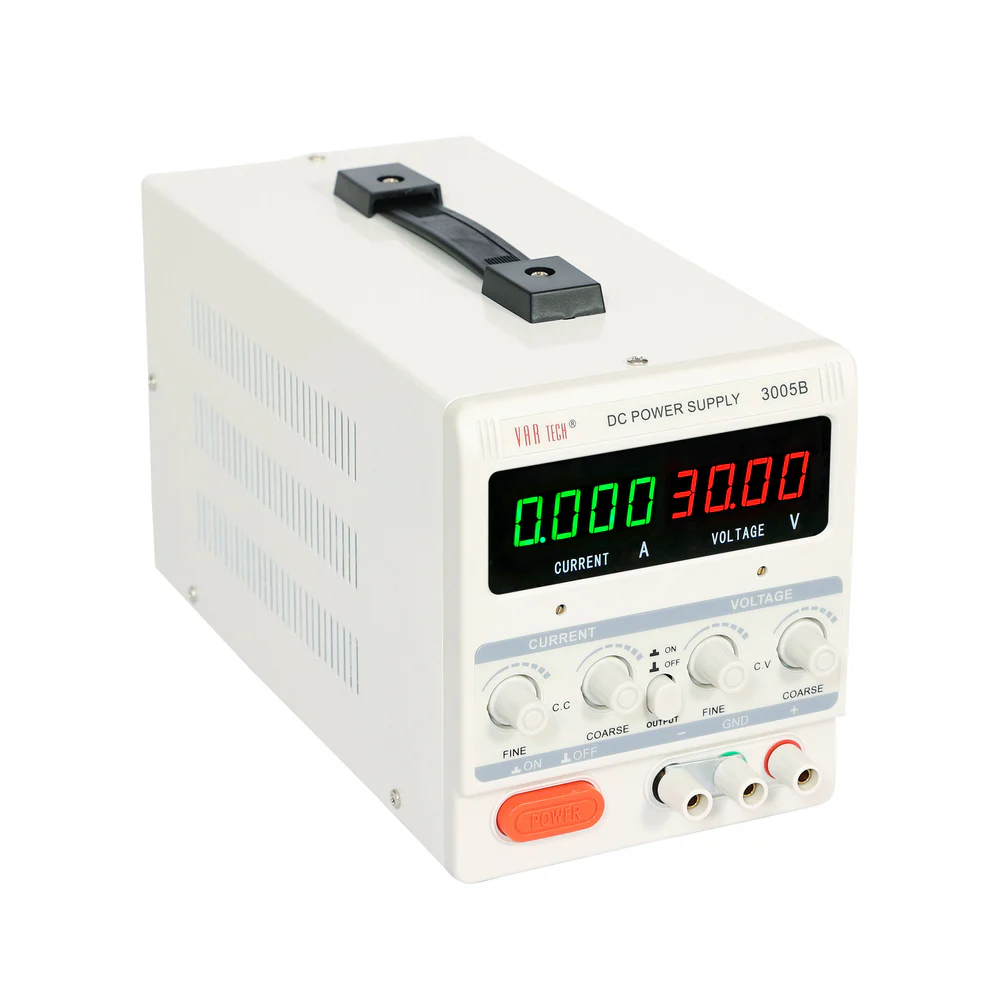

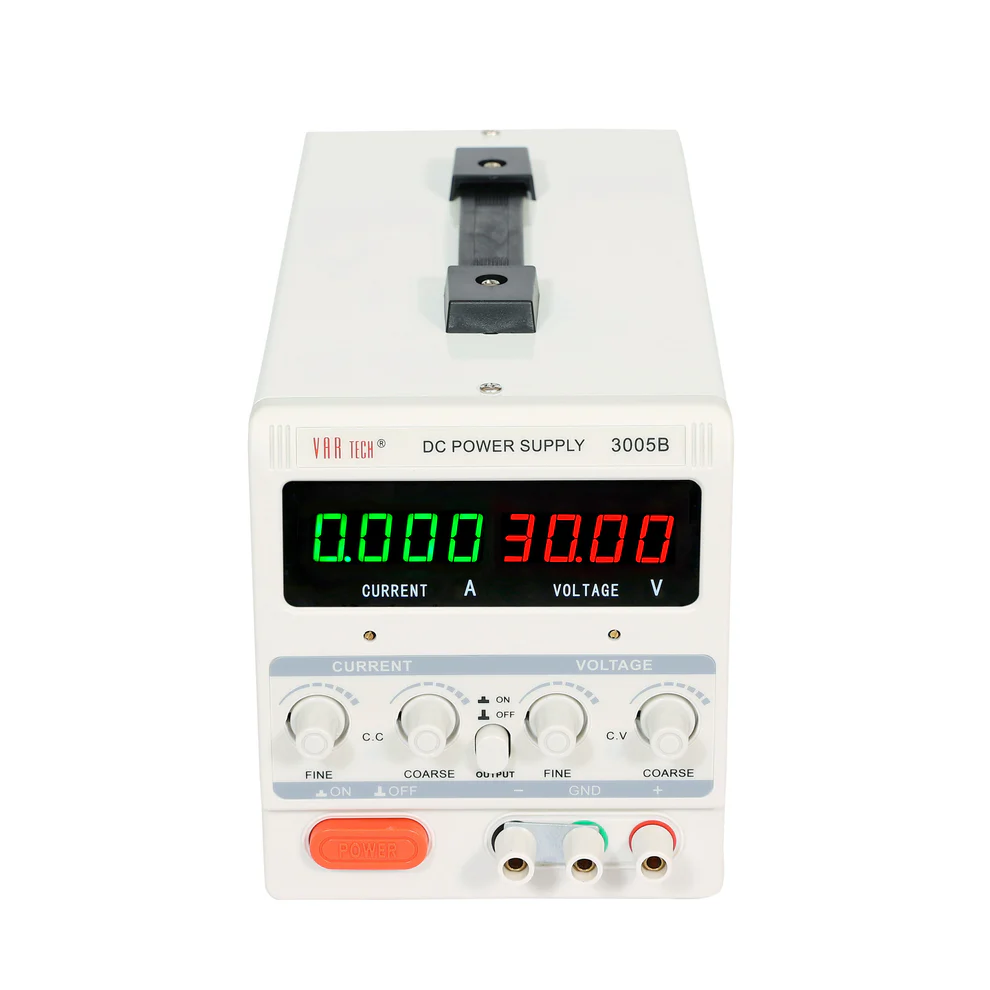

The Vartech 3005 B is a high-quality single-output transformer-based linear DC regulated power supply with a 0–30 V, 0–5 A output range. It features a 4-digit multicolour LED display for both voltage and current, automatic CV/CC mode switching, and a unique Output Pause function that allows live voltage adjustment while the output is switched off — so users can pre-set a voltage before connecting the load. Short-circuit and constant-current protection are built in. Suitable for bench-top laboratory, electronic service, and educational use.
Key Features
- 0–30 V, 0–5 A — single output, fully variable
- Linear (transformer-based) — very stable and reliable
- Automatic CV / CC mode switching
- 4-digit multicolour LED display for V and I
- Output On/Off (pause) — live voltage adjustment with output off
- Short-circuit and constant-current protection
- Input: 220 V AC ±10 %, 50 Hz
Technical Specifications
| Output Voltage | 0–30 V (fully variable) |
| Output Current | 0–5 A (fully variable) |
| Type | Linear (transformer-based), Single output |
| CV Line Regulation | ≤ 0.01 % + 5 mV |
| CV Load Regulation | ≤ 0.1 % + 5 mV |
| CC Line Regulation | ≤ 0.01 % + 5 mA |
| CC Load Regulation | ≤ 0.1 % + 5 mA |
| Ripple & Noise (CV) | ≤ 10 mV rms |
| Ripple & Noise (CC) | ≤ 10 mA rms |
| Protection | Constant current & short-circuit protection |
| Display | 2 × 4-digit LED (V and I) |
| Indication Accuracy | ≤ (1 % + 1 digit) |
| Output On/Off | Yes — with live voltage control while output is off (pause function) |
| Power Supply | 220 V AC ±10 %, 50 Hz ±2 Hz |
| Operating Temp. & Humidity | 0–40 °C | RH < 90 % |
| Dimensions & Weight | 125 W × 160 H × 260 D mm | Approx. 4 kg |
| Accessories | Power cord & instruction manual |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
