3020 30V / 20A Heavy-Duty Linear DC Regulated Power Supply
0–30 V, 0–20 A heavy-duty linear DC supply — preset V & I, CV/CC, Output On/Off, series/parallel capable.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

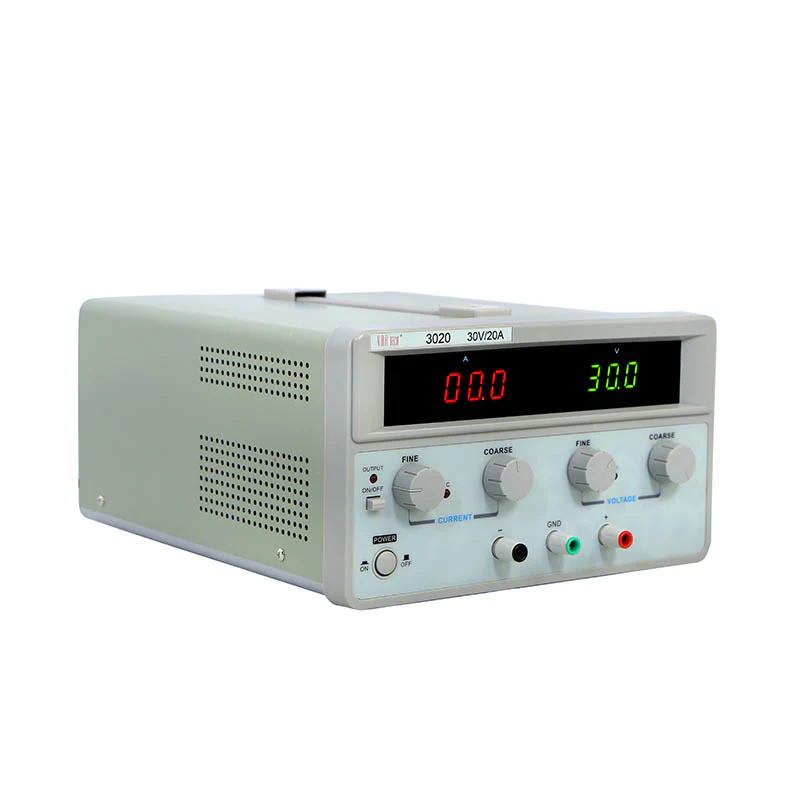

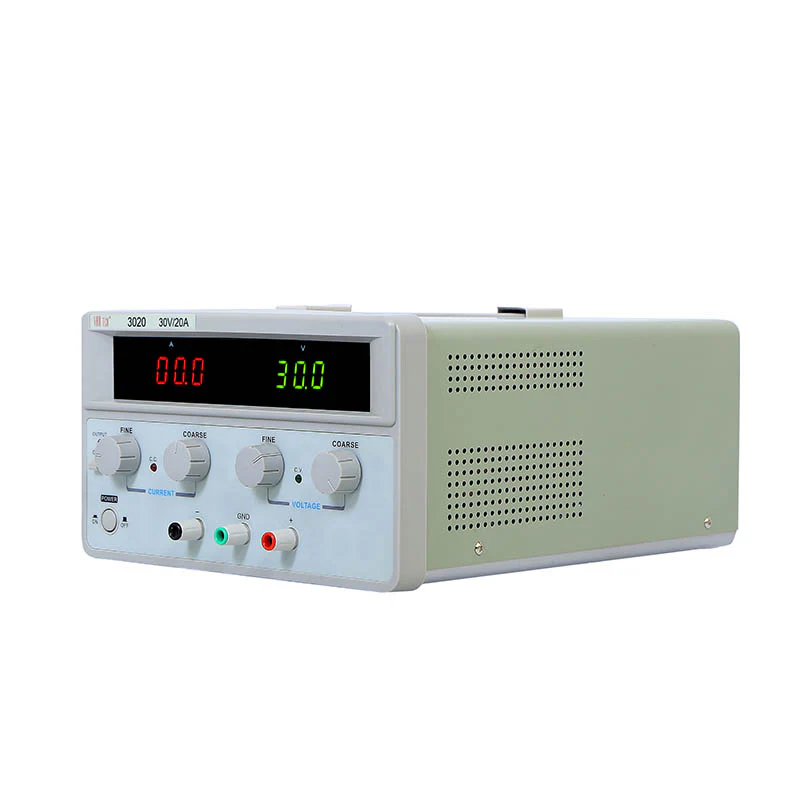

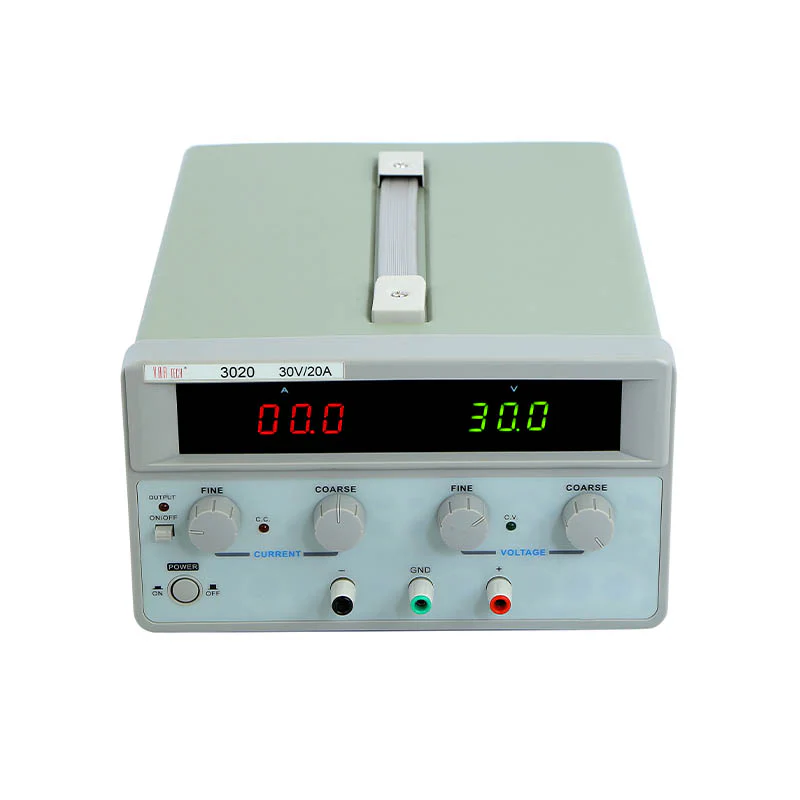

The Vartech 3020 is a heavy-duty single-output linear DC power supply rated 0–30 V, 0–20 A. It adds a preset voltage and current facility (not on the 3010), allowing users to pre-set output values before enabling the output. CV/CC automatic switching, Output On/Off, and series/parallel connection capability make it suitable for high-current bench and industrial applications.
Key Features
- 0–30 V, 0–20 A — single output, fully variable
- Linear (transformer-based) — heavy duty
- Preset V & I control facility
- Automatic CV / CC mode switching
- Output On/Off switch
- Series / parallel connection capability
- Constant current and overload protection
Technical Specifications
| Output Voltage | 0–30 V (fully variable) |
| Output Current | 0–20 A (fully variable) |
| Type | Linear (transformer-based), Single output, Heavy duty |
| CV Line Regulation | ≤ 0.01 % + 10 mV |
| CV Load Regulation | ≤ 0.02 % + 10 mV |
| CC Line Regulation | ≤ 0.2 % + 3 mA |
| CC Load Regulation | ≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I > 3 A) | ≤ 0.2 % + 15 mA (I > 10 A) |
| Ripple & Noise (CV) | ≤ 3 mV rms |
| Ripple & Noise (CC) | ≤ 3 mA rms (I ≤ 3 A) | ≤ 10 mA rms (I > 3 A) |
| Preset V & I | Yes |
| Display | 2 × LED — 3 digits each (V and A) |
| Indication Accuracy | Voltage: ±1 % + 2 digits | Current: ±2 % + 2 digits |
| Protection | Constant current and overload protection |
| Power Supply | 230 V ±10 %, 50 Hz ±2 Hz |
| Operating Environment | 0–40 °C | RH < 80 % |
| Dimensions & Weight | 255 × 155 × 330 mm | 14 kg |
| Accessories | Power cord & instruction manual |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
