M 890 Full Function Digital Multimeter True RMS
Full-function True RMS multimeter with capacitance measurement, live wire detection and 200 MΩ resistance range.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

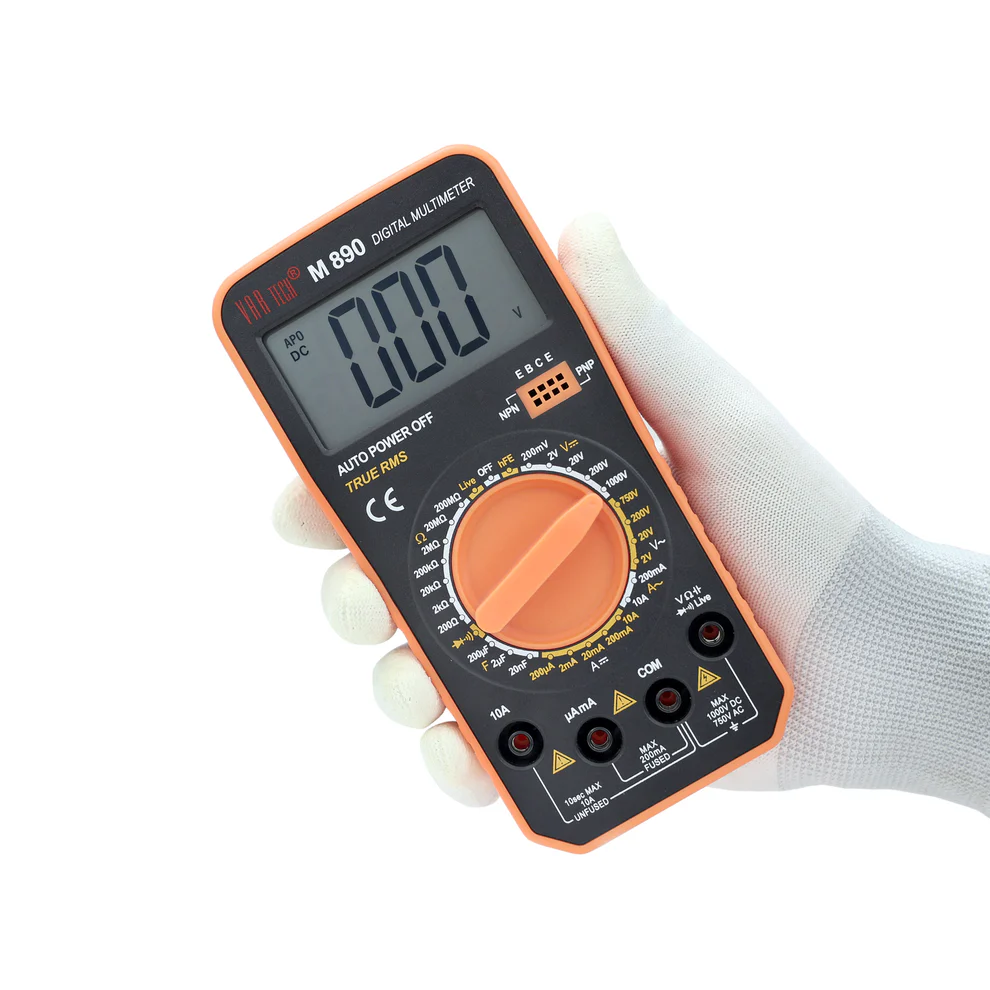

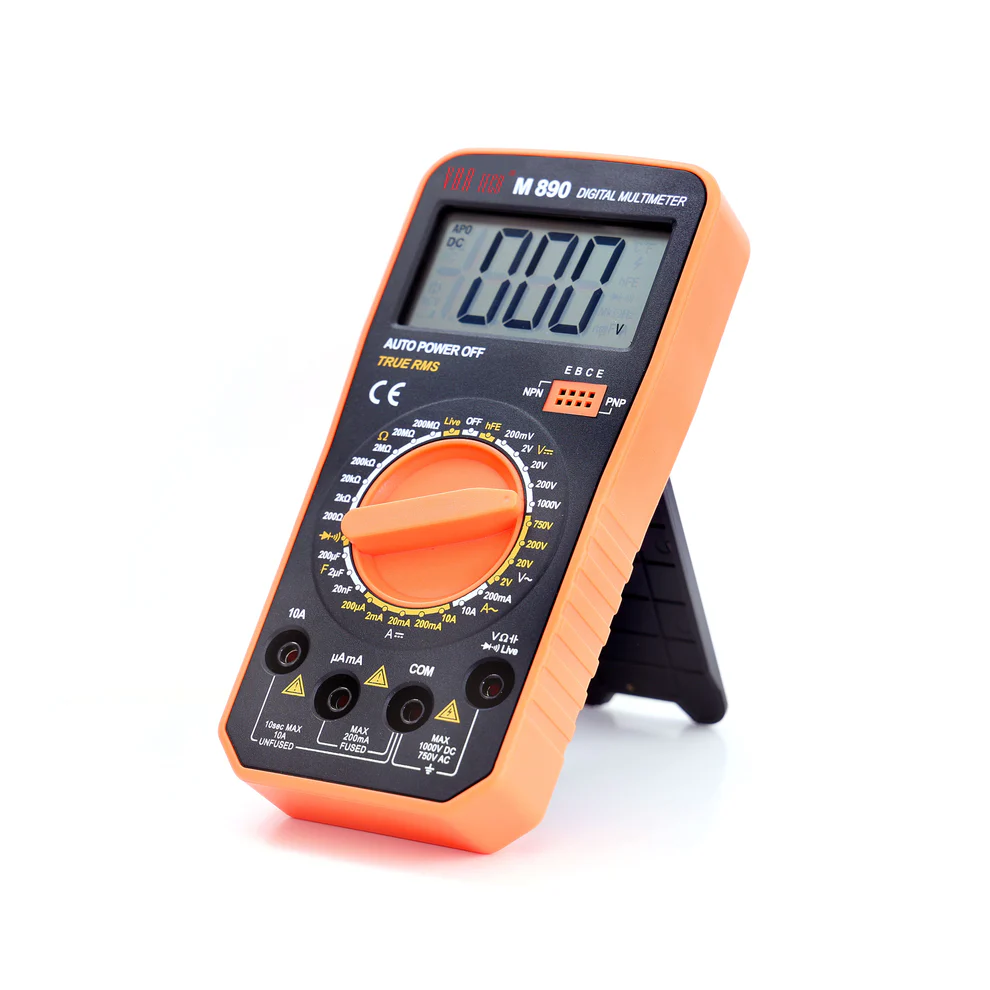

The Vartech M 890 is a full-function True RMS digital multimeter for technicians who need to go beyond basic measurements. With a voltage range up to 1000 V DC / 750 V AC, capacitance measurement, Live Wire detection, a wide resistance range up to 200 MΩ and transistor testing — all in a single instrument — it is the complete solution for electrical panel work, motor drive servicing and electronics troubleshooting.
Key Features
- True RMS measurement up to 1000 V DC / 750 V AC — accurate on inverter outputs, motor drives and any non-sinusoidal waveform
- Live Wire (LIVE) detection — identifies energised conductors before you make contact, a critical safety feature for panel and switchgear work
- Capacitance measurement from 20 nF to 200 µF — test capacitors in power supplies, motor start circuits and electronic boards
- Resistance range up to 200 MΩ — suitable for insulation spot-checks and high-value component testing
- Transistor (hFE) test with NPN/PNP polarity detection — component-level diagnosis without a separate tester
- Auto Power Off with Low Battery indicator — field-ready design that conserves battery life
Technical Specifications
| Display | 3½ Digits, 2000 Counts |
| True RMS | Yes |
| Ranging | Manual |
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 4 digits) | Input impedance: ~10 MΩ |
| AC Voltage | 2 V / 20 V / 200 V / 750 V | Accuracy: ±(0.8% rdg + 4 digits) | Freq. response: 40–1 KHz |
| DC Current | 200 µA / 2 mA / 20 mA / 200 mA / 10 A | Accuracy: ±(0.8% rdg + 5 digits) |
| AC Current | 200 mA / 10 A | Accuracy: ±(2% rdg + 3 digits) |
| Resistance | 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(1% rdg + 25 digits) |
| Capacitance | 20 nF / 2 µF / 200 µF | Accuracy: ±(2.5% rdg + 20 digits) |
| Other Functions | Continuity, Diode Test, Transistor (hFE) Test, Live Wire Test, Torch, Auto Power Off, Low Battery Indicator |
| Power | 9 V battery |
| Accessories | Test leads, user manual, battery |
| Dimensions & Weight | 167 × 81 × 43 mm | ~167 g (without battery) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
