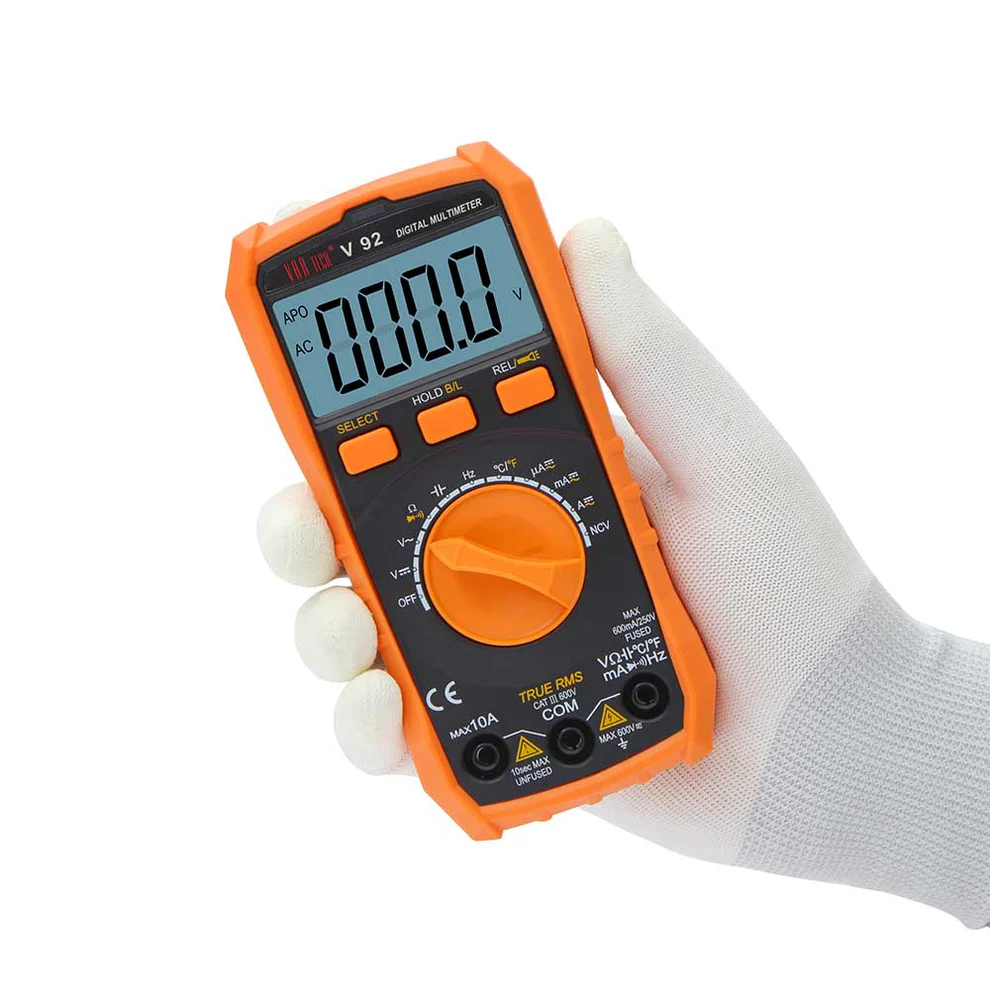

V 92 Digital Multimeter True RMS Auto Ranging
6000-count True RMS auto-ranging multimeter with temperature, frequency up to 2 MHz, duty cycle and NCV.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument
The Vartech V 92 is a new-generation True RMS digital multimeter engineered for electrical engineers, electronics professionals and HVAC technicians who need more than a basic meter. With 6000 counts, auto-ranging, frequency measurement up to 2 MHz, duty cycle, temperature and capacitance — all in a compact ergonomic body with overload protection and NCV — it is the complete all-in-one field instrument for demanding diagnostic work.
Key Features
- 6000-count auto-ranging True RMS — three times the resolution of a standard 2000-count meter, eliminates manual range selection and gives accurate readings on any waveform
- Frequency measurement up to 2 MHz including in the ACV range — ideal for VFD and motor drive testing, signal tracing and control system diagnostics
- Duty cycle measurement — essential for diagnosing PWM motor controllers, switching regulators and pulse-based control circuits
- Temperature measurement from −20 °C to 1000 °C (probe included) — one meter for both electrical and thermal measurements
- Capacitance measurement up to 2 mF across 7 auto-ranging ranges — test capacitors without leaving the instrument or switching tools

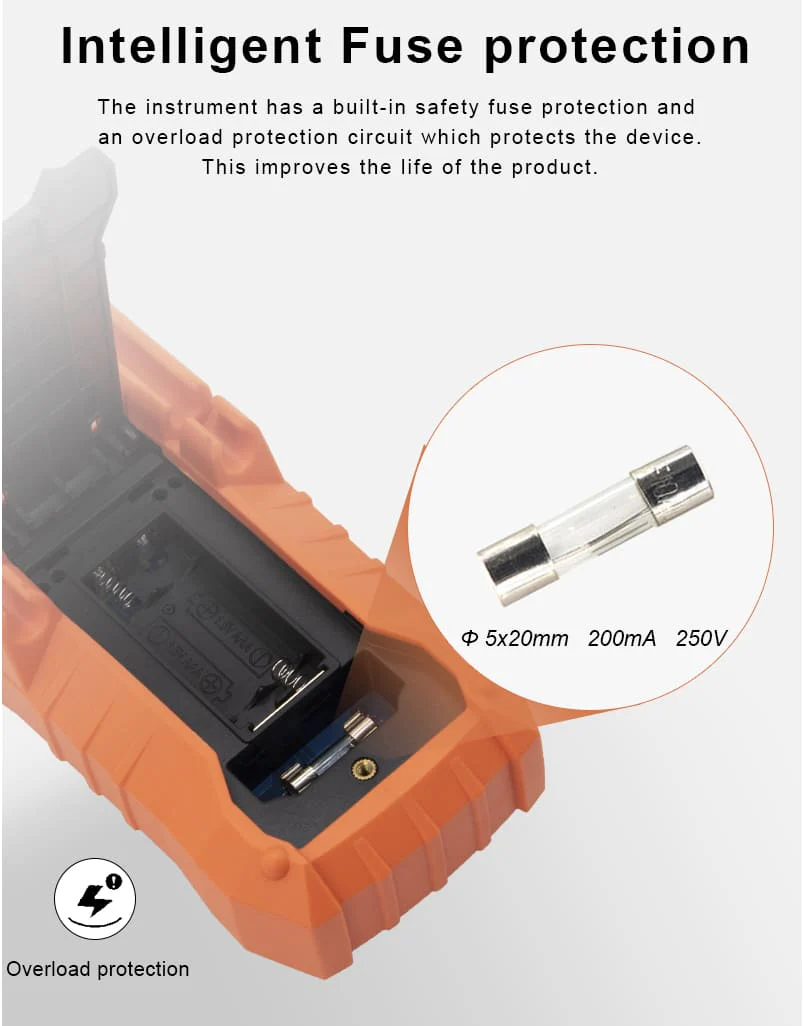

- Overload protection — guards the meter against voltage spikes, surges and accidental high-voltage connections

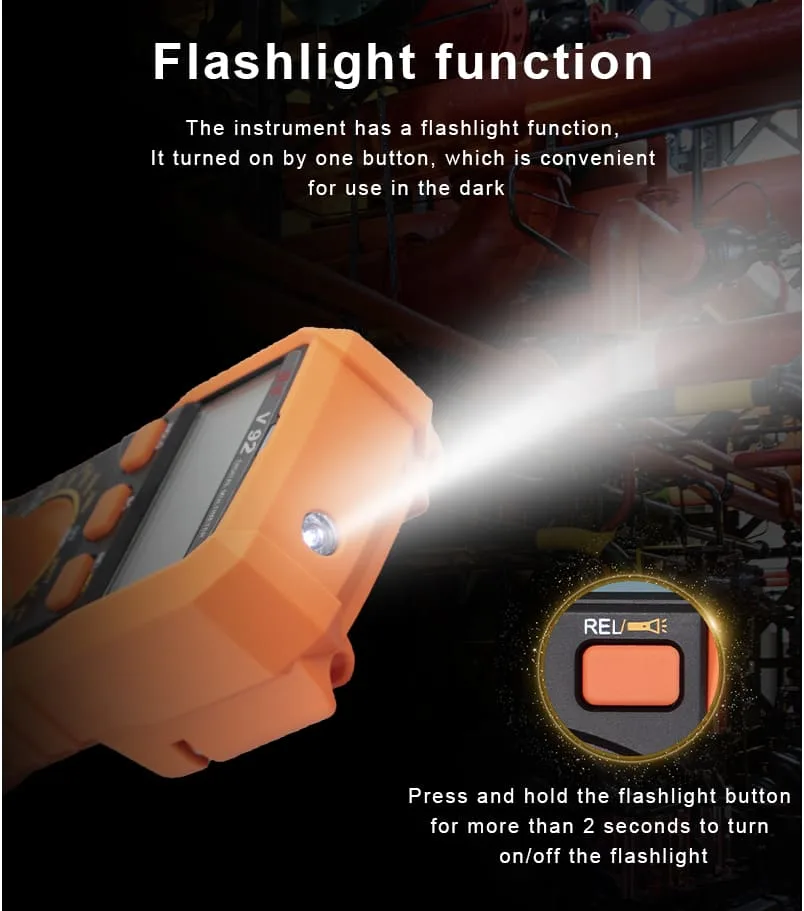

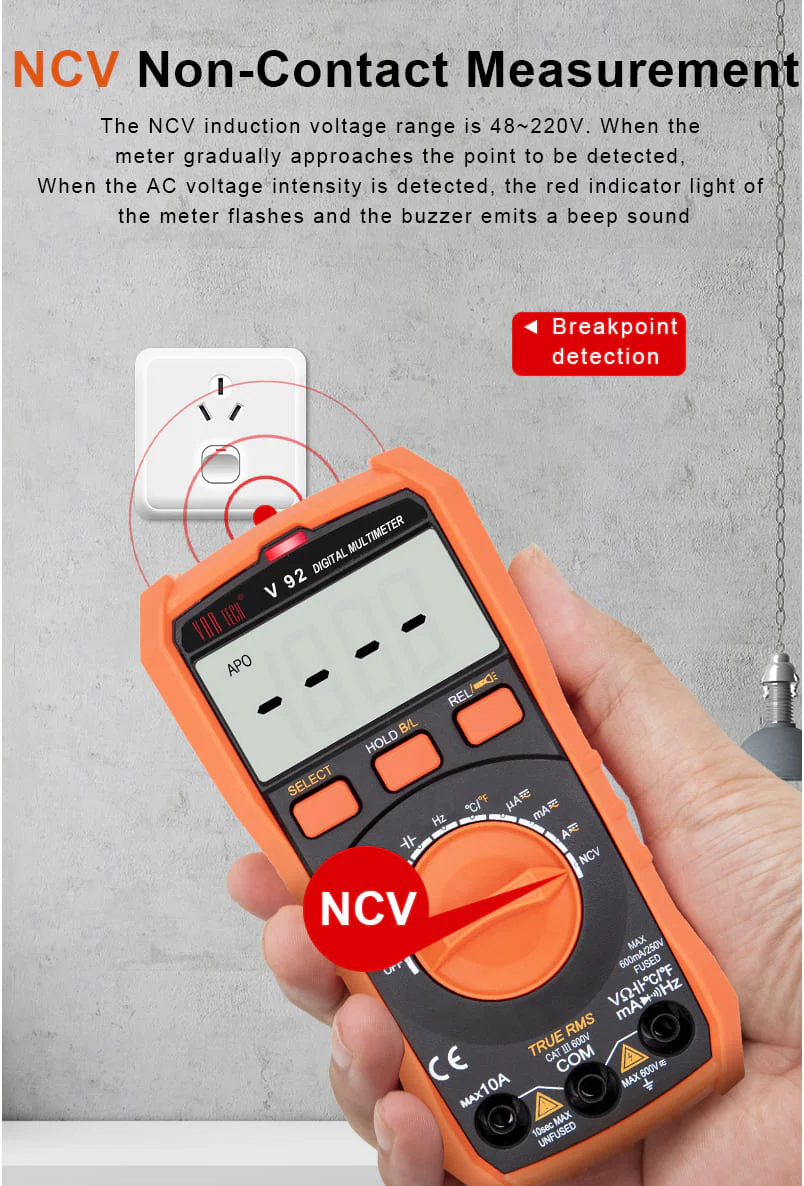

- Non-Contact Voltage (NCV) detection with torch — safely identify live conductors and illuminate dark enclosures simultaneously
- Relative measurement (REL) and Data Hold — compare readings against a reference or capture a reading hands-free
Technical Specifications

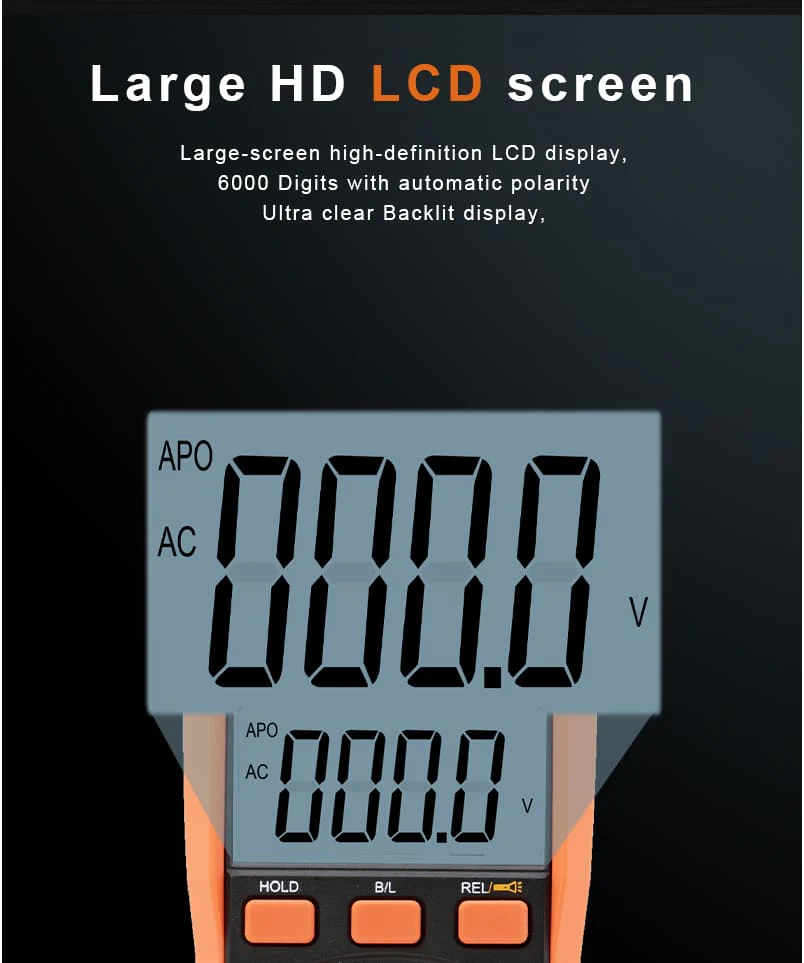

| Display | 6000 Counts, 3⅚ Digits |
| True RMS | Yes |
| Ranging | Auto |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V | Accuracy: ±(0.5% rdg + 3 digits) |
| AC Voltage (True RMS) | 6 V / 60 V / 600 V | Accuracy: ±(0.8% rdg + 5 digits) | Freq. response: 40 Hz–1 KHz |
| DC Current | 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A | Accuracy: ±(1% rdg + 10 digits) |
| AC Current (True RMS) | 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A | Accuracy: ±(1% rdg + 10 digits) |
| Resistance | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 60 MΩ | Accuracy: ±(0.8% rdg + 4 digits) |
| Capacitance | 10 nF / 100 nF / 1 µF / 10 µF / 100 µF / 200 µF / 2 mF | Accuracy: ±(3.5% rdg + 20 digits) |
| Frequency | 10 Hz – 2 MHz (Auto Ranging) | Accuracy: ±(1% rdg + 10 digits) | Sensitivity: 1 Vrms | O/L protection: 250 V DC/AC rms |
| Temperature | −20 °C to 1000 °C (−4 °F to 1832 °F) |
| Other Functions | NCV, Torch, ACV Frequency Measurement, A/V Continuity, Diode Test, Backlight, Data Hold, REL Measurement, Auto Power Off, Low Battery Indicator |

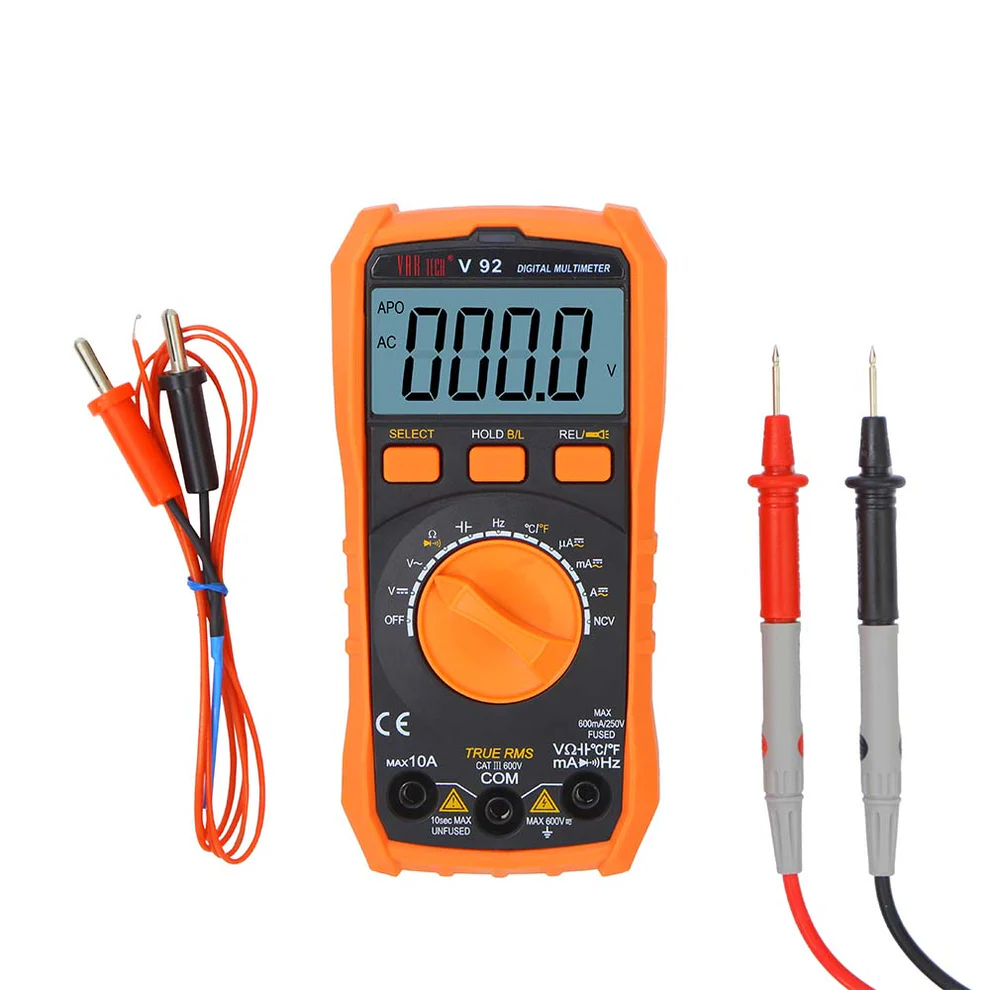

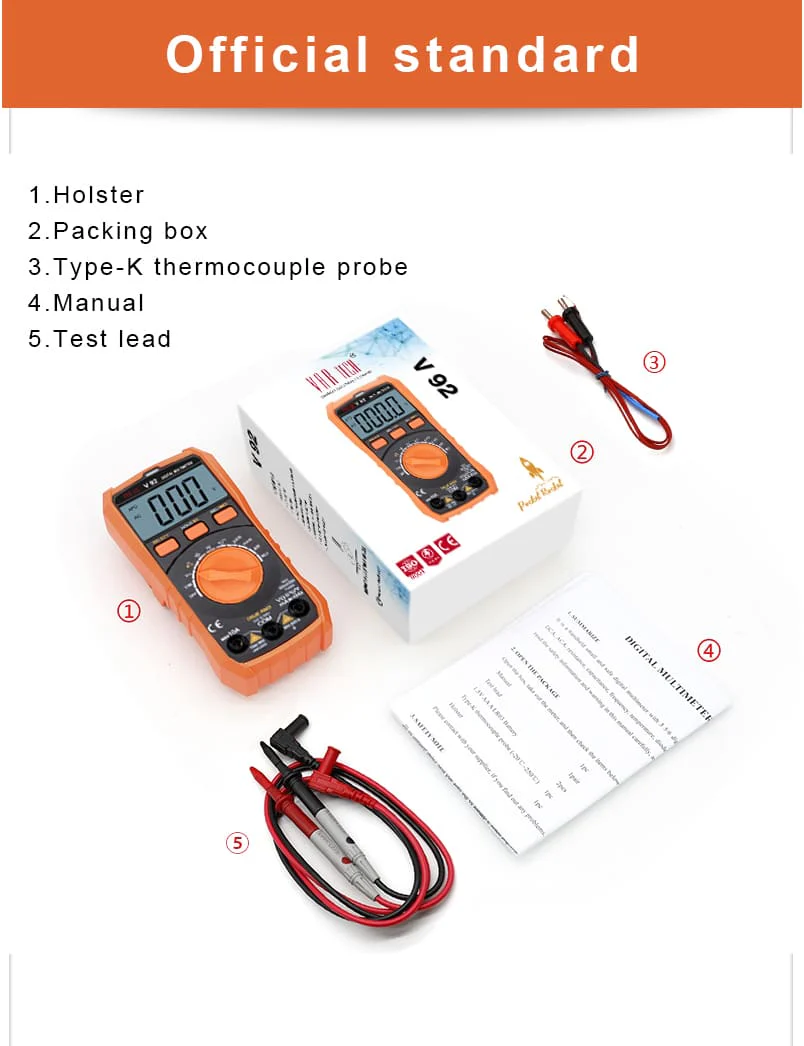

| Accessories | Holster (installed), test leads, user manual, 2×AAA batteries, temperature probe |
| Dimensions & Weight | 146 × 72 × 50 mm | ~235 g (with battery & holster) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
