V 68 Digital Multimeter True RMS Auto Ranging 1000V DC / 750V AC 10A
Flagship 4000-count True RMS multimeter — CAT III 1000V / CAT IV 600V, frequency up to 20 MHz, auto/manual ranging.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

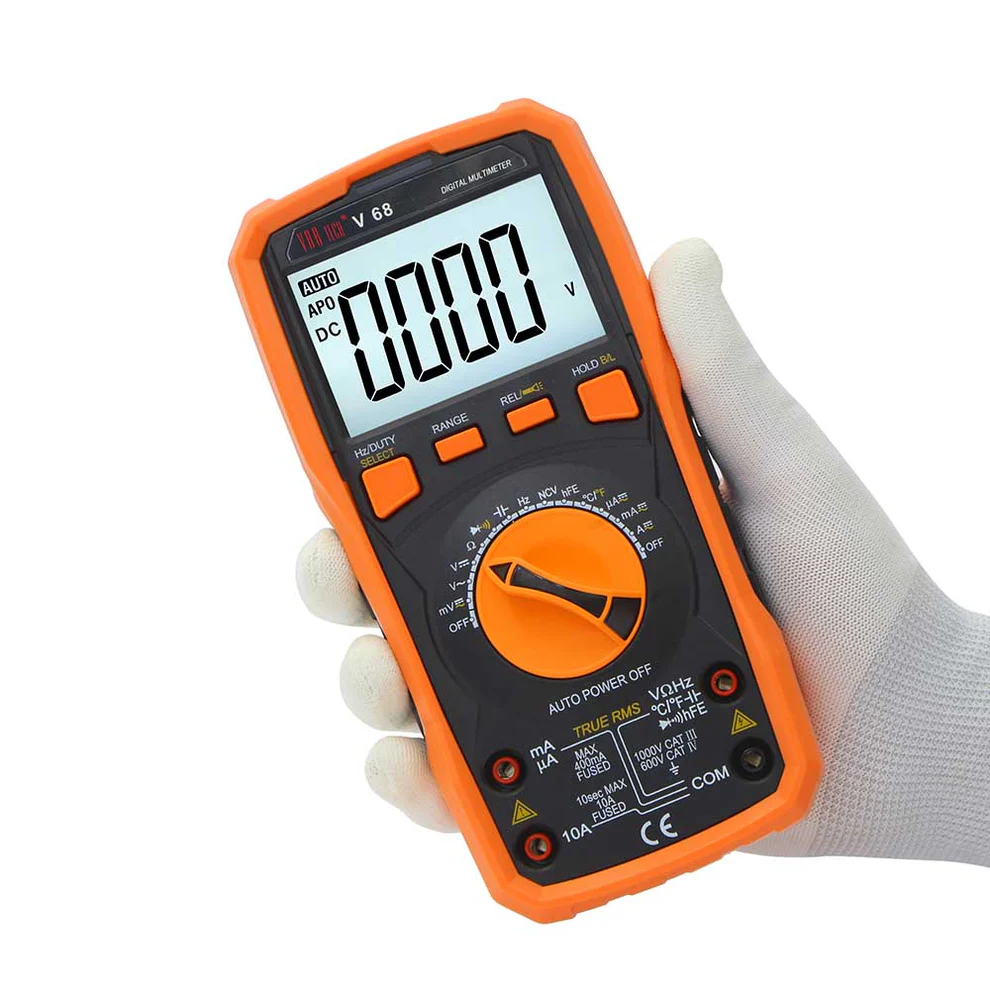

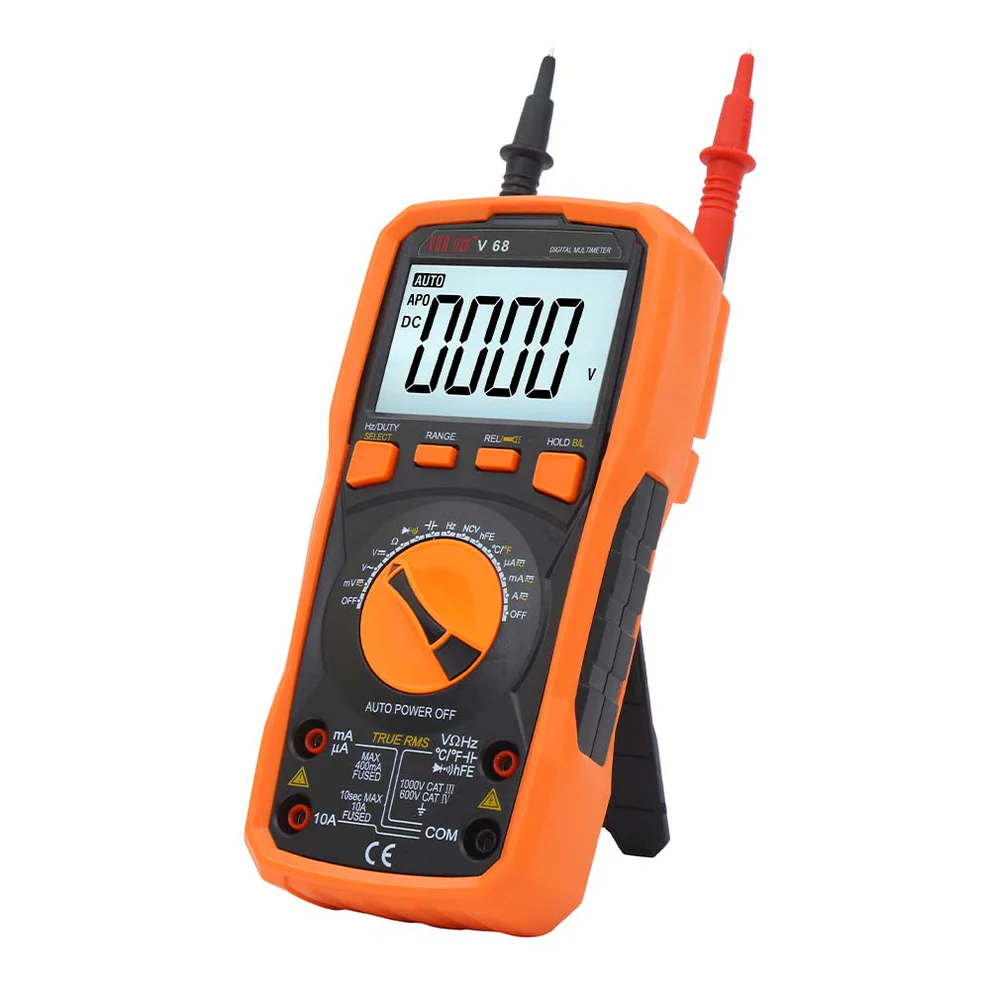

The Vartech V 68 is the flagship handheld True RMS digital multimeter — engineered for senior electrical engineers, automation and drives professionals who demand the highest standards from a handheld instrument. With 4000 counts, auto and manual ranging, frequency measurement up to 20 MHz, duty cycle, and a micro-current range from 400 µA, it bridges the gap between everyday field work and precision measurement in a single robust instrument.
Key Features
- 4000-count True RMS with auto and manual ranging — twice the resolution of 2000-count meters; auto-ranging eliminates range selection errors while manual mode gives full control when needed
- Frequency measurement up to 20 MHz — covers power line, audio, industrial control, telecommunications and harmonic analysis far beyond the capability of standard multimeters
- Duty cycle measurement — diagnose PWM motor drives, switching regulators, UPS and any pulse-based control system without a separate instrument
- Micro-current from 400 µA in both AC and DC — sensitive enough for low-power sensor circuits, control loops and electronic measurement without risk of overload
- Temperature to 1000 °C and capacitance up to 100 mF — total component and environmental characterisation in one meter

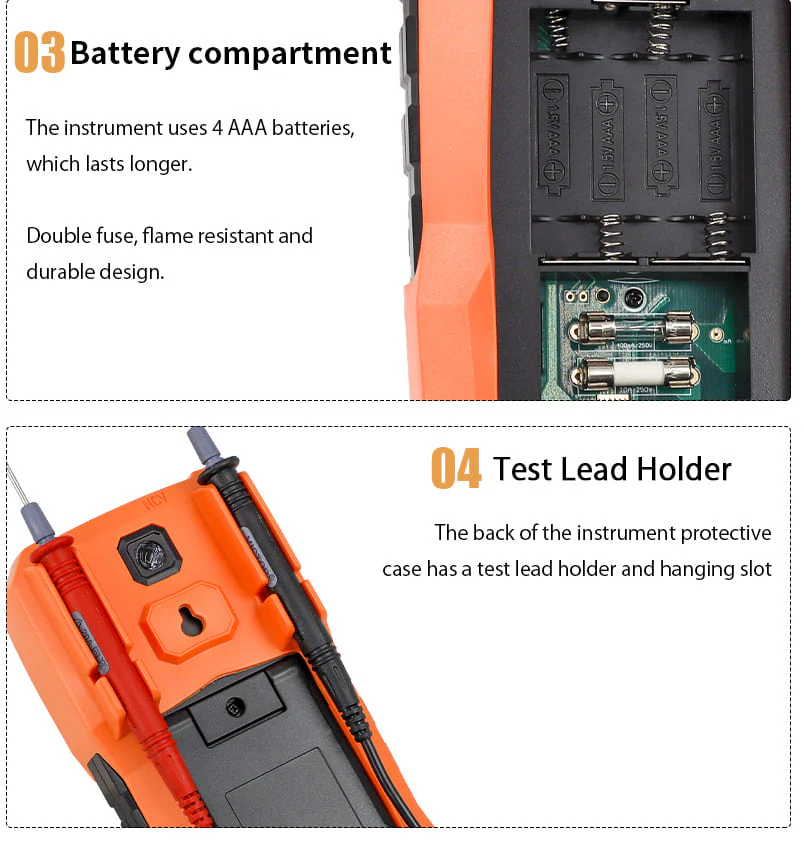

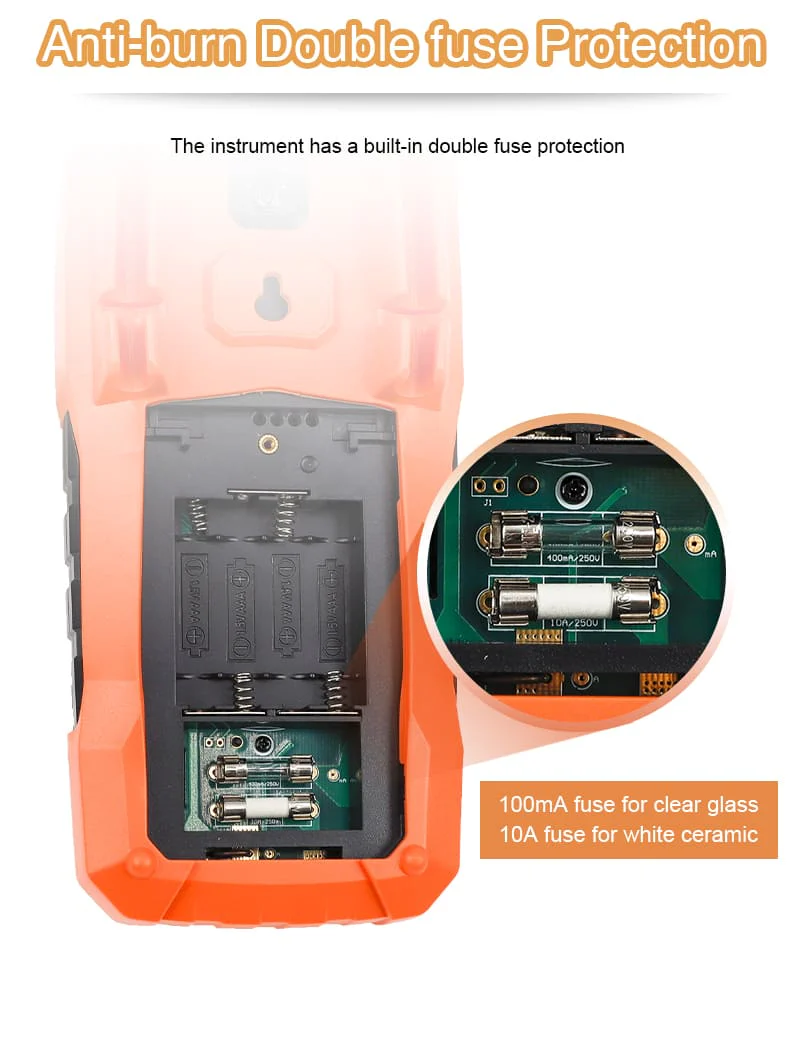

- Double fuse overload protection — safeguards both the meter and the operator against fault currents in both current measurement ranges

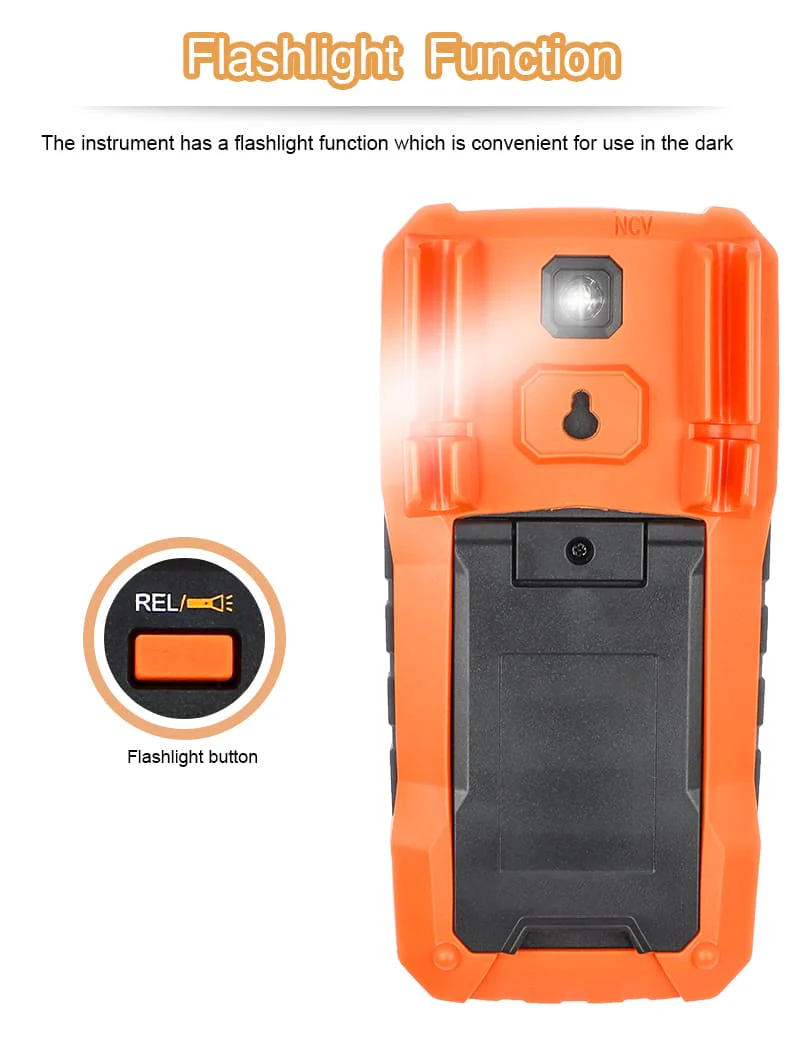

- NCV, torch, REL measurement and data hold — every essential field tool in one instrument
Technical Specifications

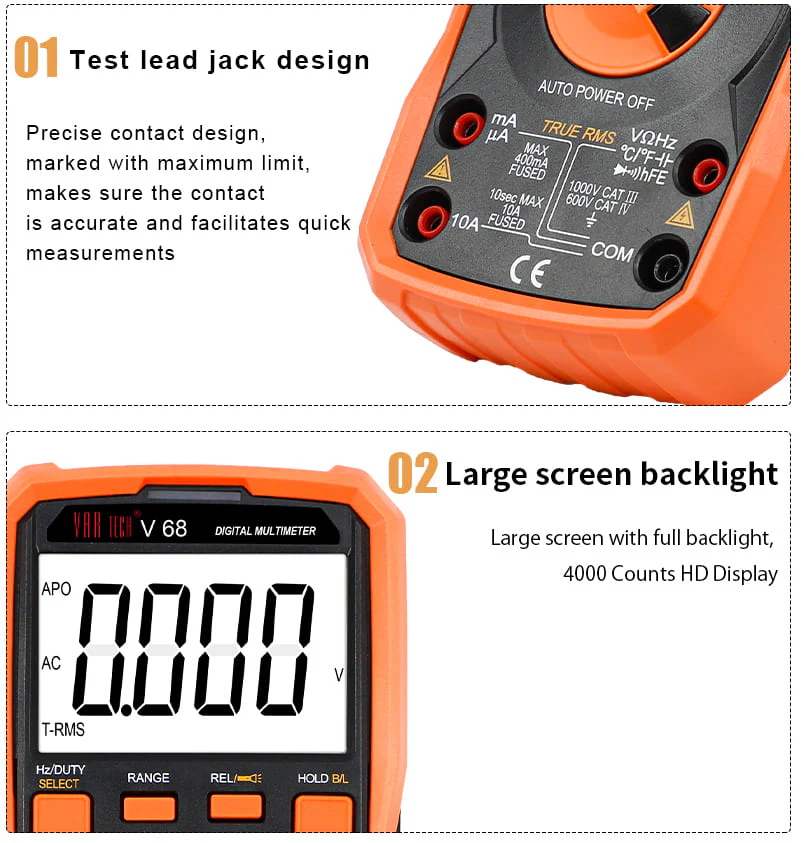

| Display | 4000 Counts, 3¾ Digits |
| True RMS | Yes |
| Ranging | Auto / Manual |
| DC Voltage | 40 mV / 400 mV / 4 V / 40 V / 400 V / 1000 V | Accuracy: ±(0.5% rdg + 4 digits) |
| AC Voltage (True RMS) | 40 mV / 400 mV / 4 V / 40 V / 400 V / 750 V | Accuracy: ±(0.8% rdg + 10 digits) | Freq. response: 40 Hz–1 KHz |
| DC Current | 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A | Accuracy: ±(1% rdg + 10 digits) |
| AC Current (True RMS) | 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A | Accuracy: ±(1.5% rdg + 10 digits) | Freq. response: 40 Hz–1 KHz |
| Resistance | 400 Ω / 4 KΩ / 40 KΩ / 400 KΩ / 4 MΩ / 40 MΩ | Accuracy: ±(0.8% rdg + 4 digits) |
| Capacitance | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF / 100 mF | Accuracy: ±(3.5% rdg + 20 digits) |
| Frequency | 10 Hz – 20 MHz (Auto Ranging) | Accuracy: ±(0.5% rdg + 10 digits) |
| Duty Cycle | Yes |
| Temperature | −20 °C to 1000 °C (−4 °F to 1832 °F) |
| Other Functions | NCV, Torch, ACV Frequency, A/V Continuity, Diode Test, Transistor (hFE) Test, Backlight, Data Hold, Duty Cycle, REL Measurement, Auto Power Off, Low Battery Indicator |

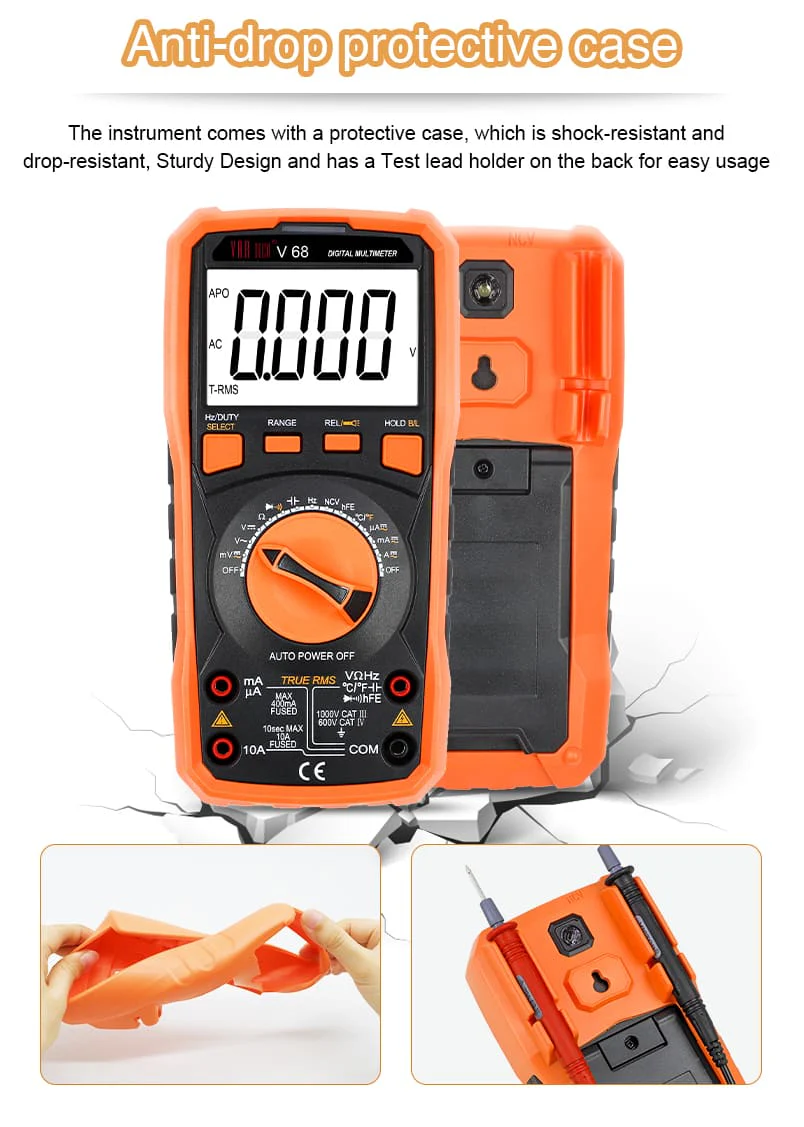

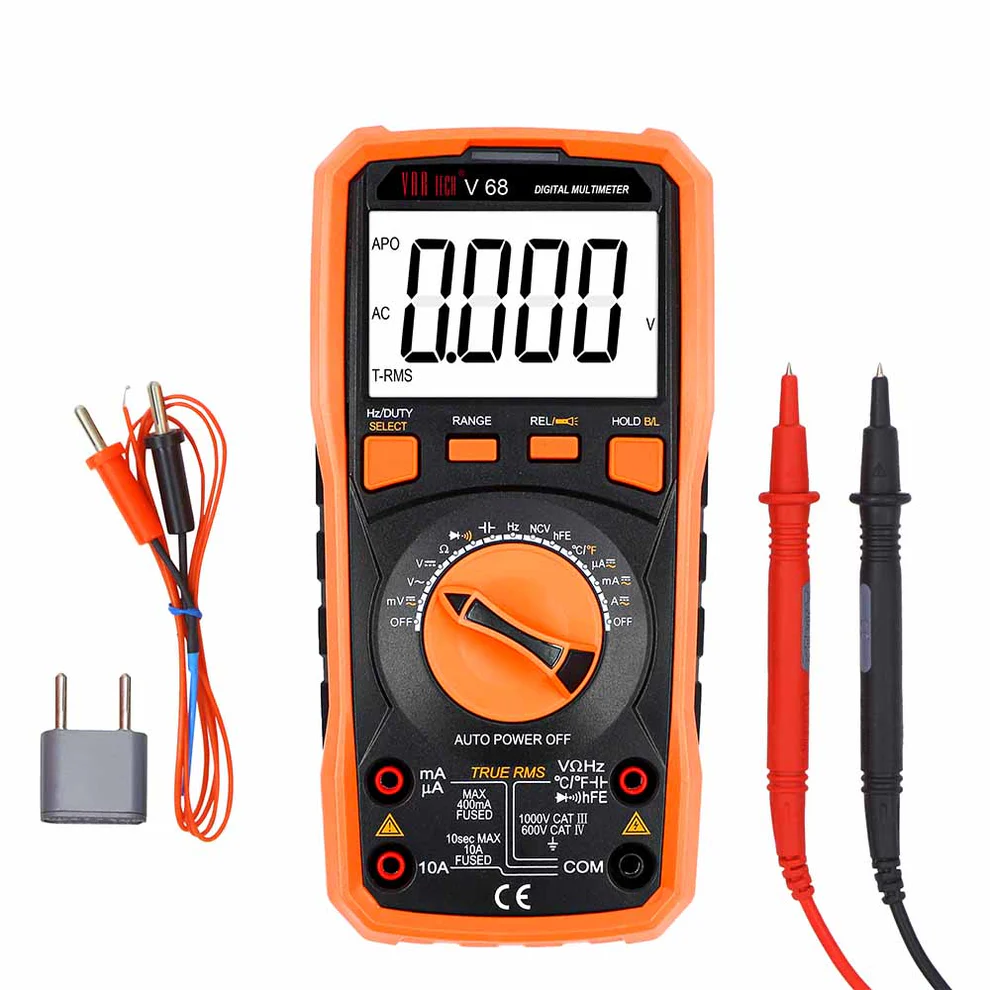

| Accessories | Holster (installed), test leads, user manual, 4×AAA batteries, capacitance / transistor test adaptor, temperature probe |
| Dimensions & Weight | 186 × 92 × 52 mm | ~400 g (with battery & holster) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
