V 8222 G Full Function Digital Multimeter True RMS 1000V AC/DC 20A
1000V True RMS multimeter with LIVE wire testing, NCV and mains frequency measurement — built for high-voltage electrical work.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

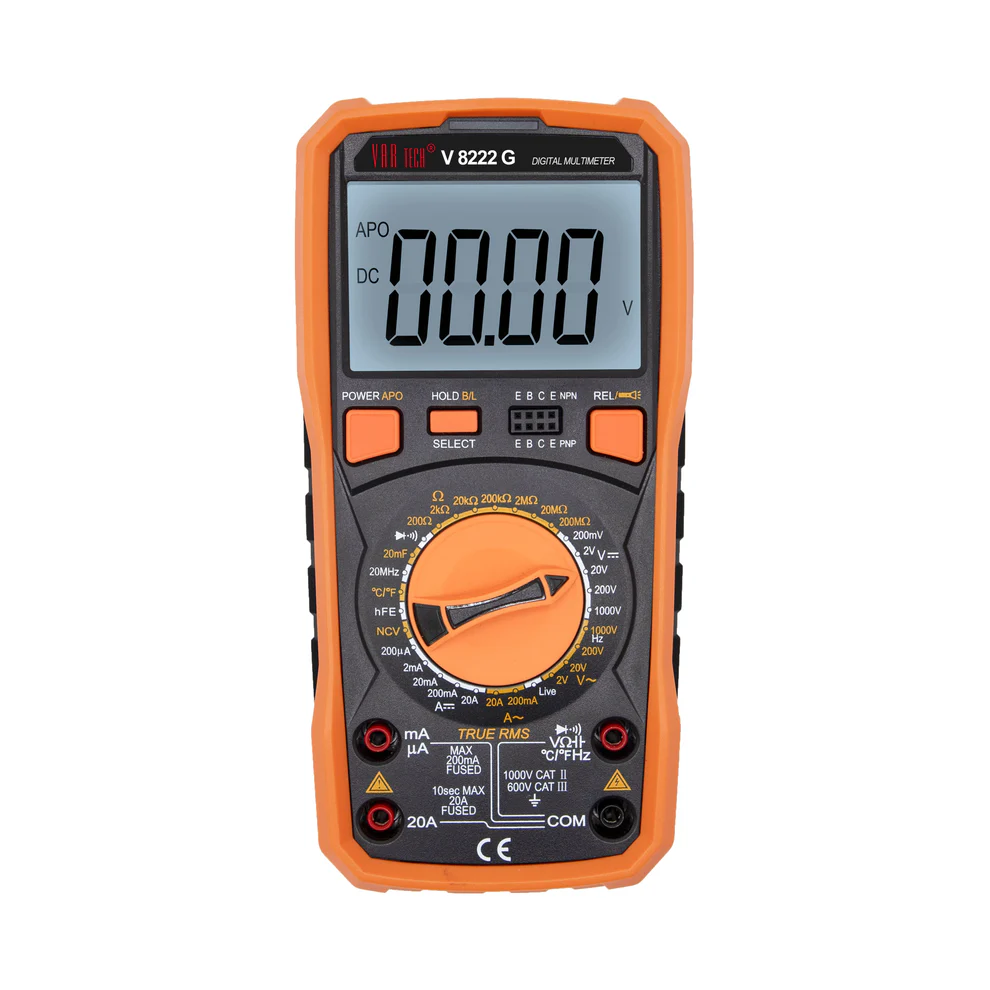

The Vartech V 8222 G is a heavy-duty True RMS digital multimeter designed for high-voltage electrical work where safety is the primary concern. Its standout capability is the combination of LIVE wire testing and Non-Contact Voltage (NCV) detection with simultaneous audio and visual indication — making it the safest choice for panel testing, switchgear inspection and MV/LV distribution work where live conductors must be positively identified before making contact. With 1000 V AC/DC, 20 A and auto-ranging capacitance and frequency measurement, it is the complete instrument for the high-voltage electrical professional.
Key Features
- LIVE wire testing with NCV — audio and visual indication simultaneously; positively identifies energised conductors before contact, the most critical safety check in panel work
- True RMS up to 1000 V AC/DC — measures at the highest distribution voltages correctly, including on non-sinusoidal waveforms from UPS, generators and inverter systems
- Mains frequency measurement in the 1000 V AC range — verify supply frequency directly at HV panel terminals without stepping down to a lower voltage point
- Auto-ranging capacitance (6 nF to 20 mF) and frequency (10 Hz to 20 MHz) — broad measurement coverage without manual range selection
- 20 A AC/DC current measurement — suitable for motor feeds, feeder cables and heavy load testing
- Temperature measurement from −20 °C to 1000 °C — extends the meter into thermal and environmental diagnostics
- Transistor (hFE), diode and continuity test — component-level diagnosis built into a high-voltage field meter
Technical Specifications
| Display | 3½ Digits, 2000 Counts |
| True RMS | Yes |
| Ranging | Manual (Capacitance & Frequency: Auto) |
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 3 digits) |
| AC Voltage (True RMS) | 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.8% rdg + 5 digits) | Mains frequency measurement in 1000 V AC range |
| DC Current | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.2% rdg + 8 digits) |
| AC Current (True RMS) | 200 mA / 20 A | Accuracy: ±(1.5% rdg + 15 digits) |
| Resistance | 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(0.8% rdg + 3 digits) |
| Capacitance (Auto) | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 20 mF | Accuracy: ±(3.5% rdg + 20 digits) |
| Frequency (Auto) | 10 Hz / 100 Hz / 1 KHz / 10 KHz / 100 KHz / 1 MHz / 20 MHz | Accuracy: ±(1% rdg + 10 digits) |
| Temperature | −20 °C to 1000 °C (−4 °F to 1832 °F) |
| Other Functions | LIVE Wire Testing, NCV (Audio & Visual), Continuity, Diode Test, Transistor (hFE) Test, Backlight, Torch, Data Hold, Auto Power Off, REL Measurement, Low Battery Indicator |
| Accessories | Holster (installed), test leads, user manual, temperature probe, 4×AAA batteries |
| Dimensions & Weight | 186 × 92 × 52 mm | ~395 g (with battery) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
