V 8222 H LCR Digital Multimeter True RMS 1000V DC / 750V AC 20A
Unique handheld LCR meter and full-function True RMS multimeter combined — measures inductance, capacitance, resistance, frequency and temperature.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

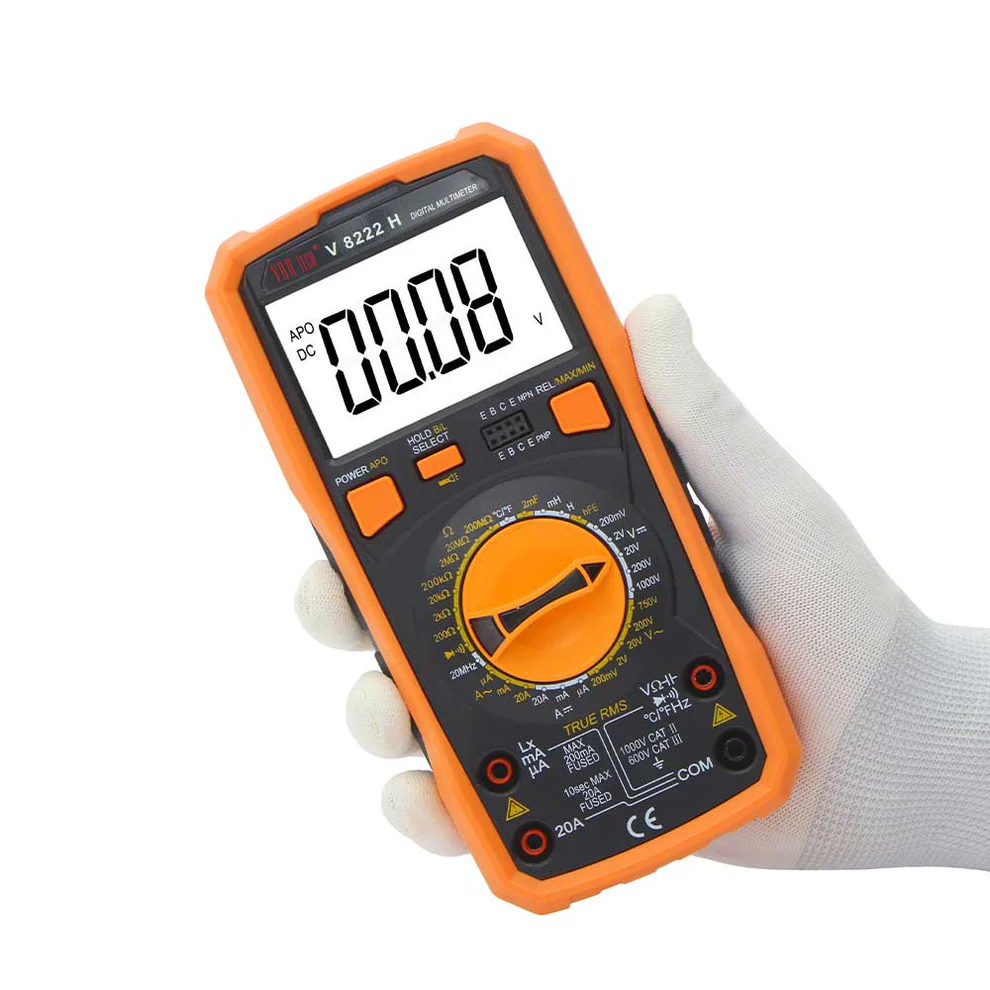

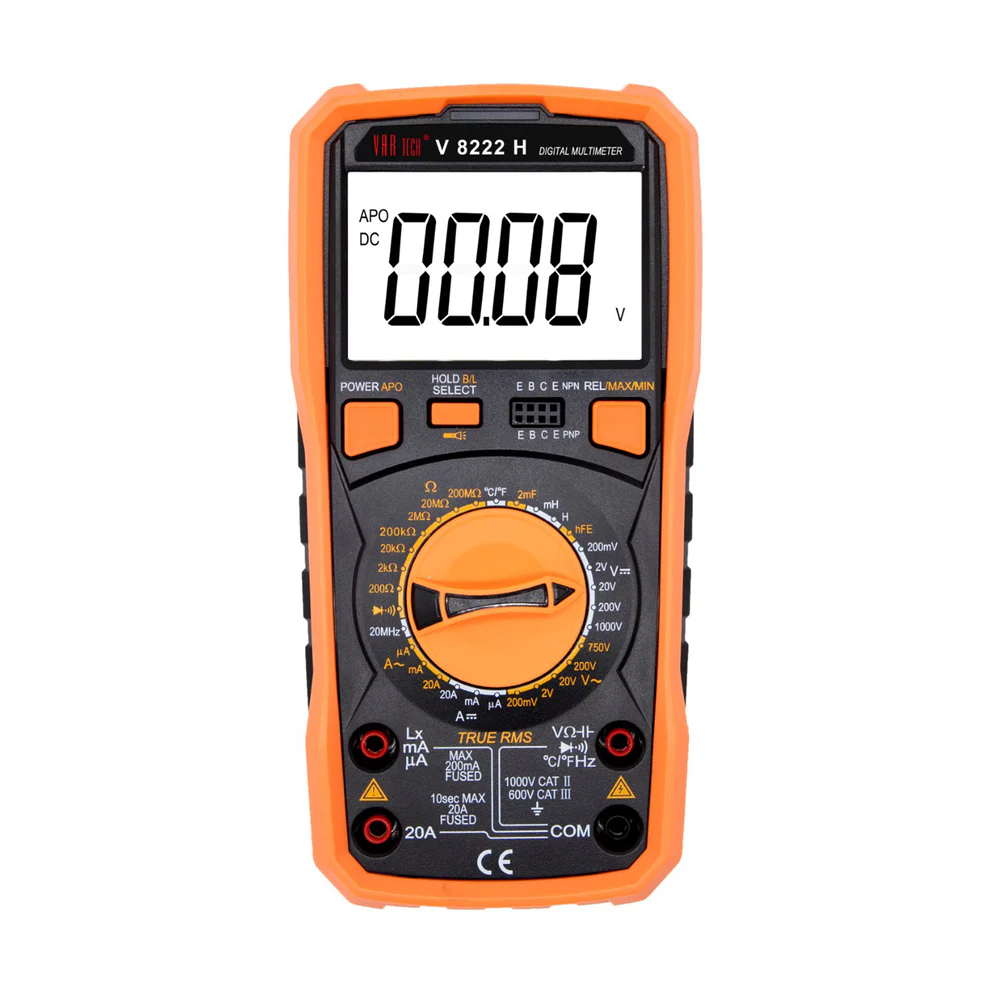

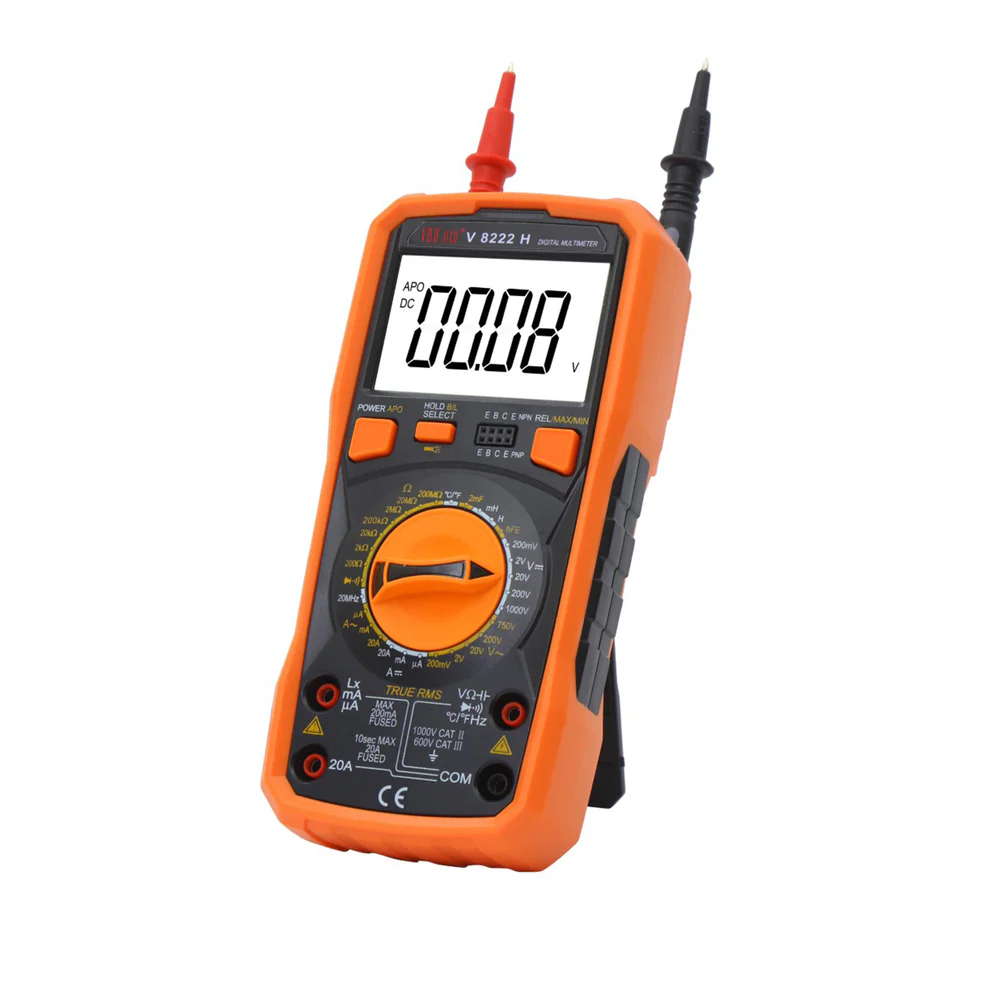

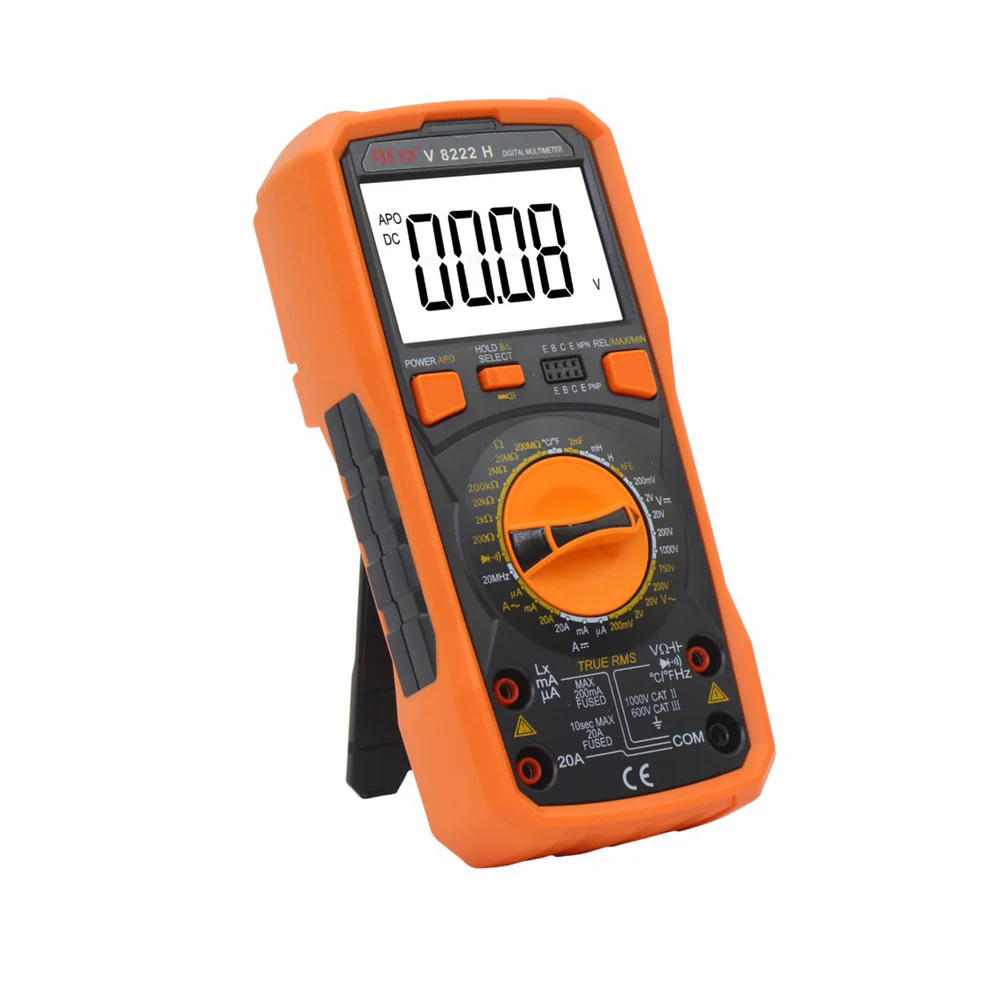

The Vartech V 8222 H is a unique instrument: a professional LCR meter and a full-function True RMS multimeter combined into a single heavy-duty handheld body. Where every other multimeter stops at capacitance, the V 8222 H adds inductance measurement across a wide 2 mH to 20 H range — making it indispensable for electronics engineers, R&D professionals and anyone working with coils, transformers, inductors, motors and passive components. It eliminates the need for both a separate LCR bridge and a field multimeter.
Key Features
- Inductance measurement from 2 mH to 20 H (2 auto ranges) — the defining capability that no standard multimeter offers; test chokes, transformers, motor windings and inductors directly
- Full LCR capability: Inductance, Capacitance (20 nF to 2 mF) and Resistance (up to 200 MΩ) in one handheld instrument — replace your LCR bridge and your field multimeter
- True RMS up to 1000 V DC / 750 V AC and 20 A — full heavy-duty multimeter capability alongside LCR measurement
- Frequency measurement up to 20 MHz with duty cycle — covers power, audio, industrial control and signal frequencies
- Min/Max recording — captures transient peaks and dips without watching the display; essential for fluctuating or unstable measurements
- Temperature measurement with probe, transistor (hFE) test — total component and circuit characterisation from a single instrument
- Auto-ranging on L, C and frequency — the meter selects the correct range automatically; no manual range hunting on unfamiliar components

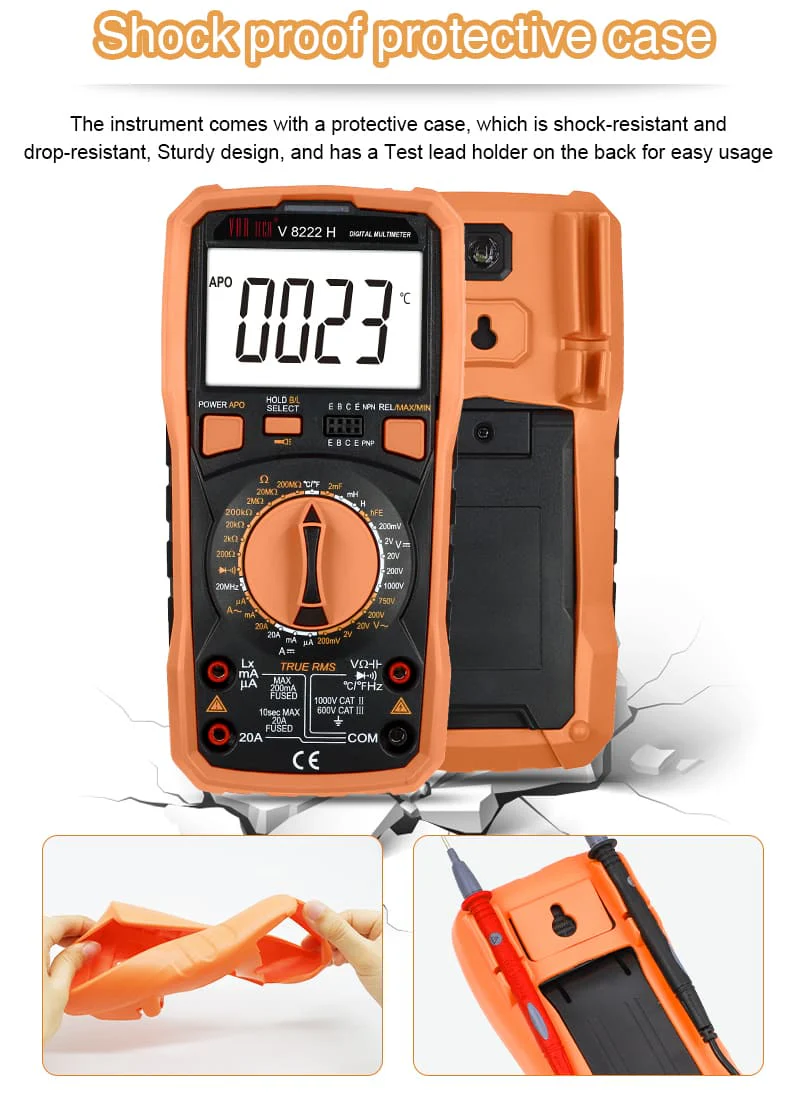

- Heavy-duty shockproof construction with holster — field-ready, not just for the bench
Technical Specifications

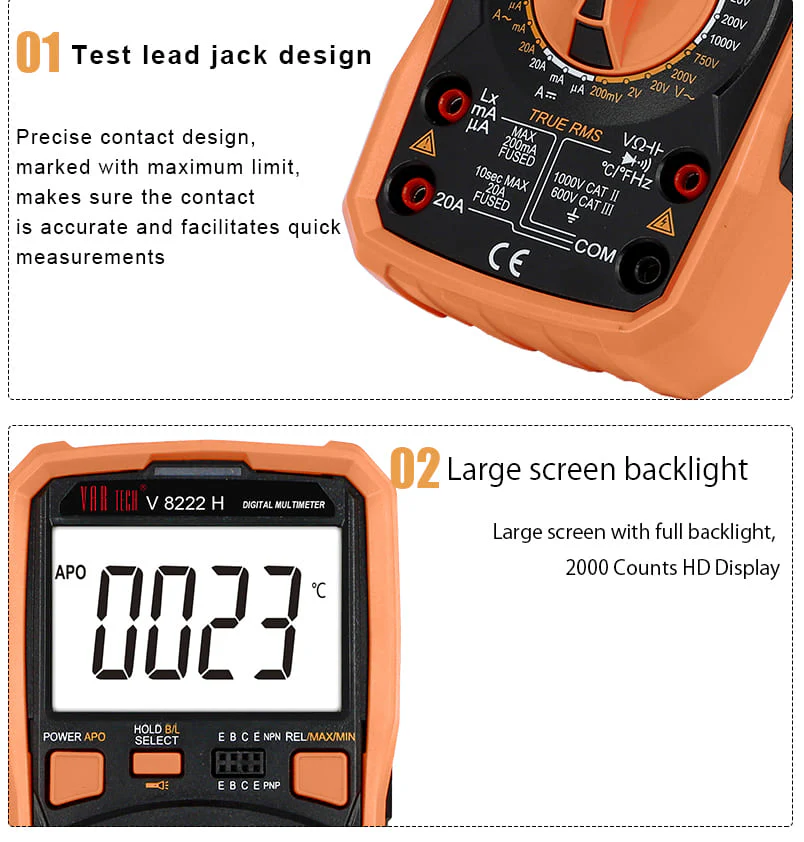

| Display | 3½ Digits, 2000 Counts |
| True RMS | Yes |
| Ranging | Manual (L, C, Frequency: Auto) |
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 3 digits) |
| AC Voltage (True RMS) | 200 mV / 2 V / 20 V / 200 V / 750 V | Accuracy: ±(0.8% rdg + 5 digits) | Freq. response: 40 Hz–1 KHz |
| DC Current | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.2% rdg + 8 digits) |
| AC Current (True RMS) | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.5% rdg + 15 digits) | Freq. response: 40 Hz–1 KHz |

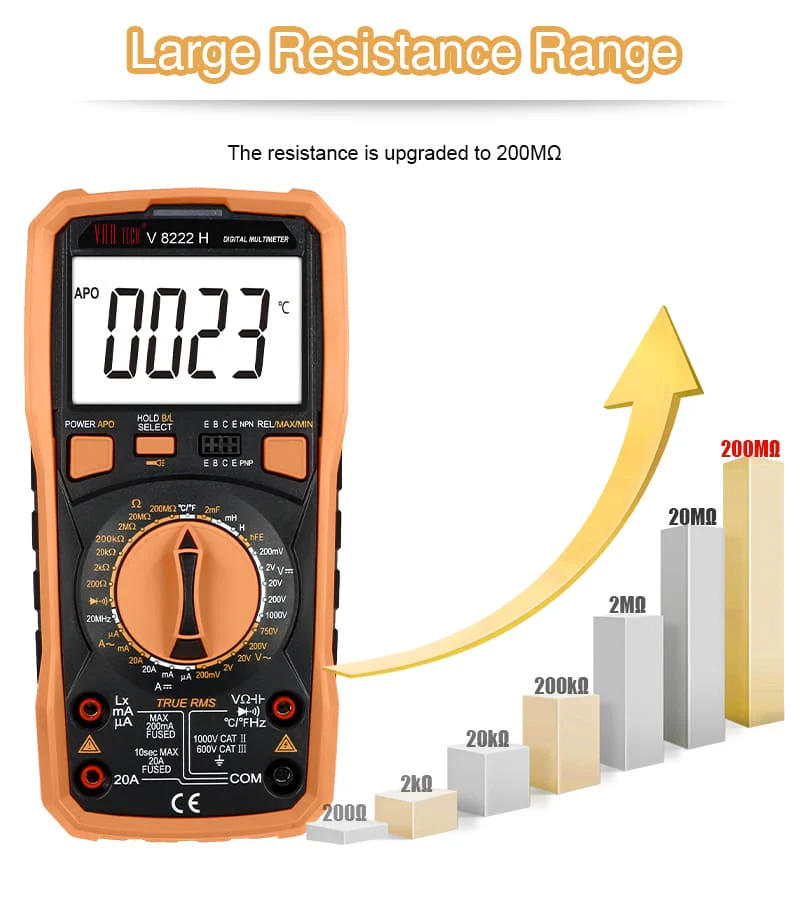

| Resistance | 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(0.8% rdg + 3 digits) |
| Capacitance (Auto) | 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF | Accuracy: ±(3.5% rdg + 20 digits) |
| Inductance (Auto) | 2 mH / 20 mH / 200 mH / 2 H / 20 H (2 auto ranges) | Accuracy: ±(2.5% rdg + 30 digits) |
| Frequency & Duty Cycle | 10 Hz – 20 MHz (7 auto ranges) | Accuracy: ±(1% rdg + 10 digits) |
| Temperature | −20 °C to 1000 °C (−4 °F to 1832 °F) |

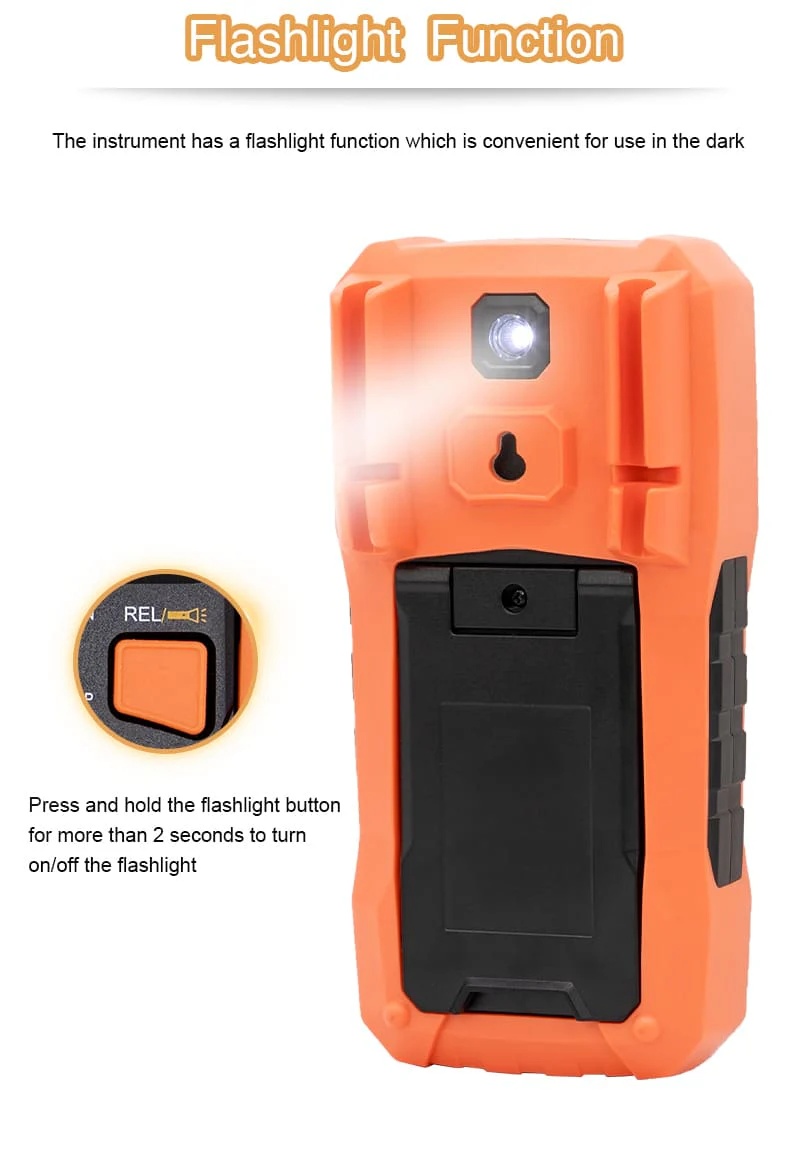

| Other Functions | Torch, A/V Continuity, Diode Test, Transistor (hFE) Test, Auto Power Off, Backlight, Data Hold, REL Measurement, Min/Max, Low Battery Indicator |

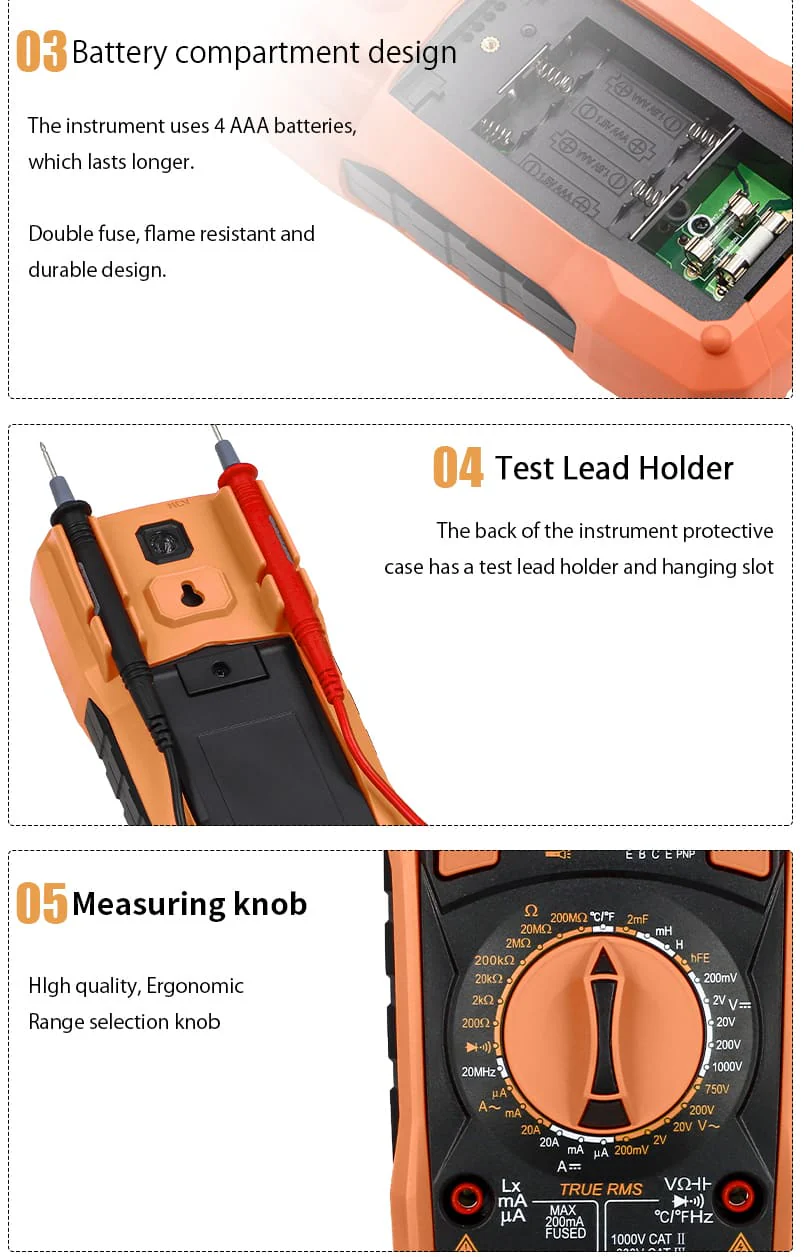

| Accessories | Holster (installed), test leads, user manual, 4×AAA batteries, temperature probe |
| Dimensions & Weight | 186 × 92 × 52 mm | ~400 g (with battery & holster) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
