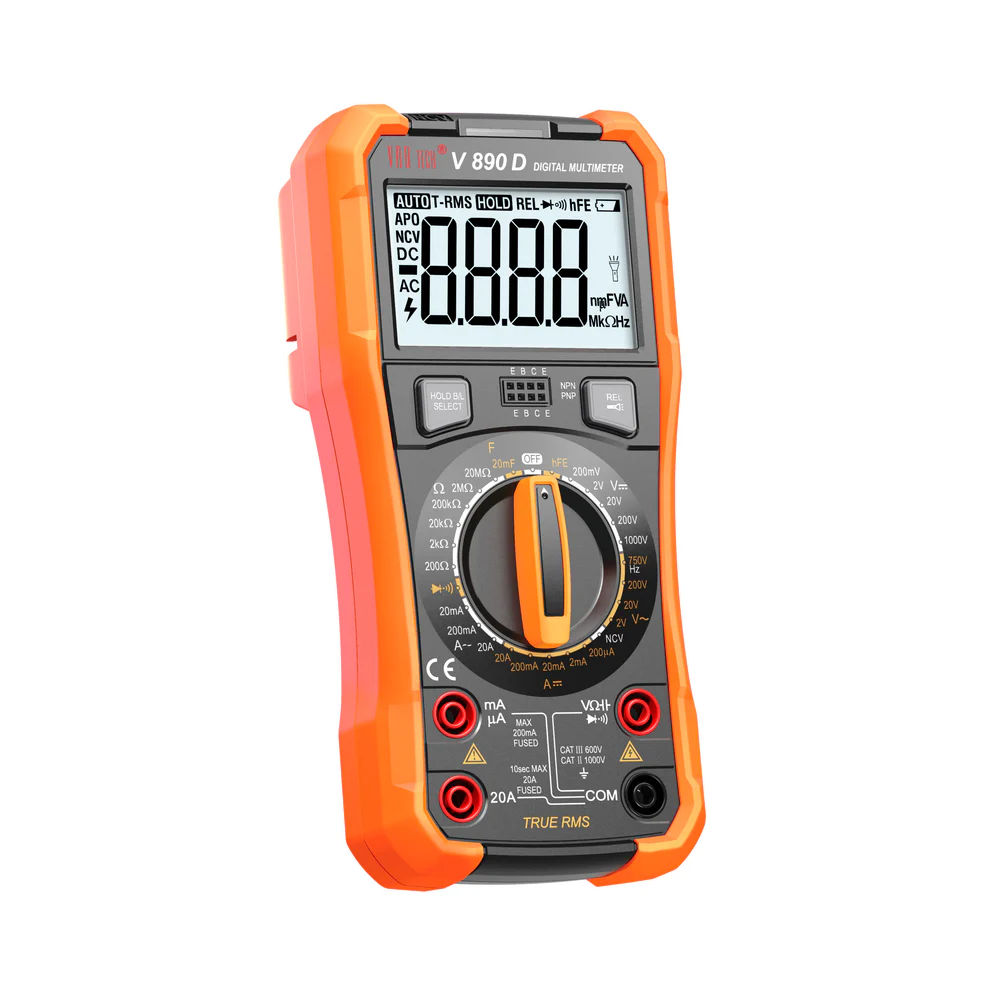

V 890 D Digital Multimeter True RMS 1000V DC / 750V AC 20A
Heavy-duty True RMS industrial multimeter — 1000V DC, 20A, auto-ranging capacitance and NCV in a shockproof body.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument
The Vartech V 890 D is built for industrial environments where lightweight consumer meters simply are not enough. With a True RMS measurement range up to 1000 V DC / 750 V AC, a 20 A current range, auto-ranging capacitance up to 20 mF and mains frequency verification in the 750 V AC range, it handles the full demands of electrical panel testing, motor drive commissioning and power distribution work. Heavy-duty shockproof construction and double AA battery operation make it a reliable companion for extended field sessions.
Key Features
- True RMS up to 1000 V DC / 750 V AC — correct readings on any waveform; handles the highest industrial distribution voltages
- 20 A current measurement range — measure motor running current and panel feeder loads without a separate clamp meter
- Auto-ranging capacitance up to 20 mF (8 ranges) — test motor start and run capacitors, power factor correction capacitors and electrolytic capacitors across a wide range
- Mains frequency measurement in the 750 V AC range — verify supply frequency directly at the panel terminals
- NCV detection with torch — identify live conductors and illuminate dark enclosures simultaneously for safe working

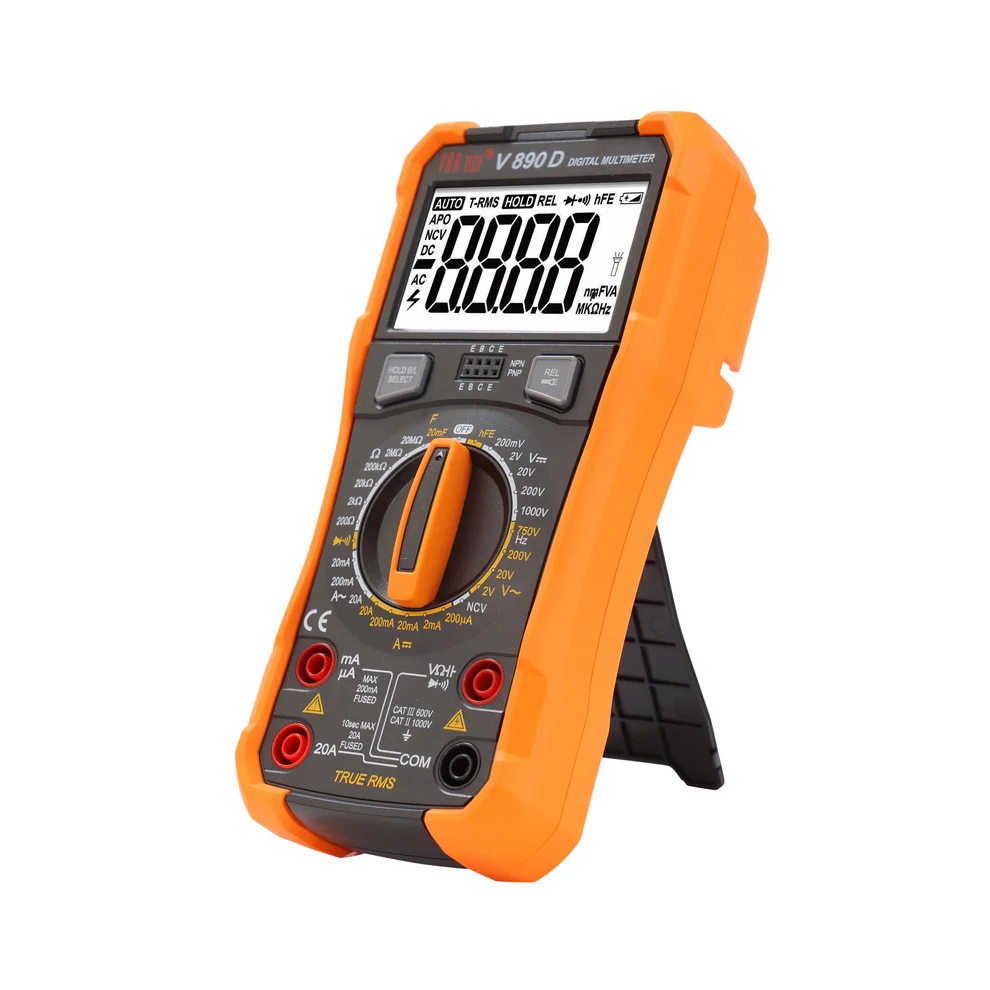

- Heavy-duty shockproof body with built-in holster and stand — engineered to survive the job site; not a desktop meter in a rubber boot
- Double AA battery operation — longer battery life than AAA alternatives; more field time between battery changes
Technical Specifications

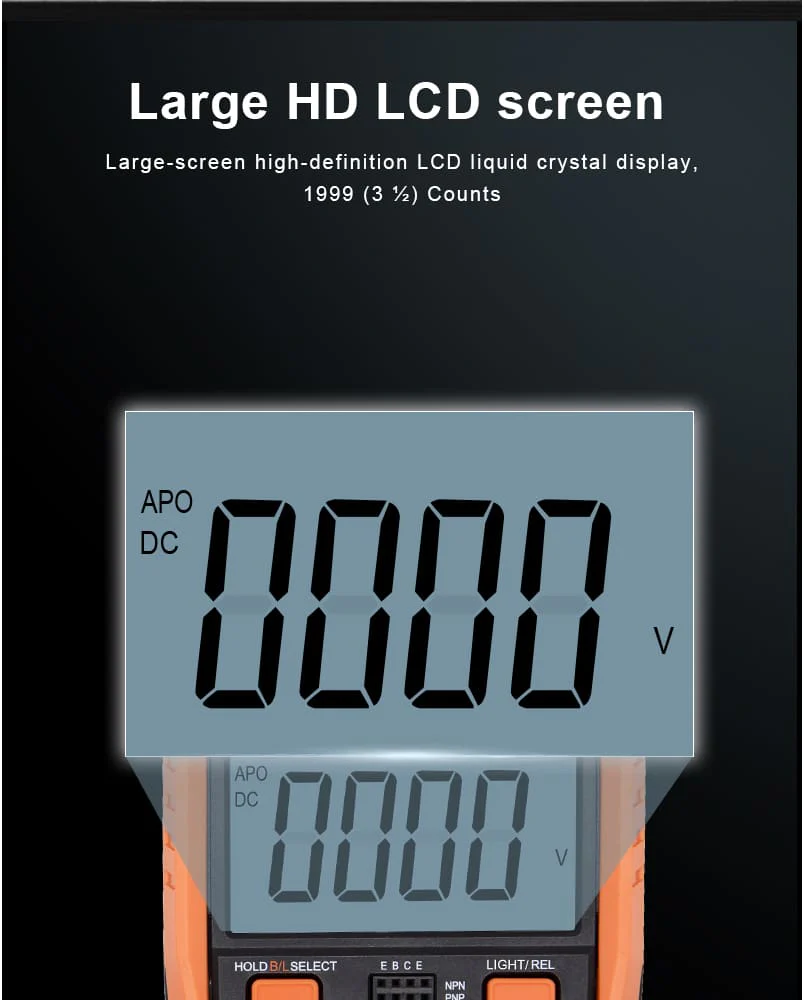

| Display | 3½ Digits, 2000 Counts |
| True RMS | Yes |
| Ranging | Manual (Capacitance: Auto) |
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 3 digits) |
| AC Voltage (True RMS) | 2 V / 20 V / 200 V / 750 V | Accuracy: ±(0.8% rdg + 5 digits) | Freq. response: 40 Hz–1 KHz | Mains freq. test in 750 V range |
| DC Current | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(0.8% rdg + 10 digits) |
| AC Current (True RMS) | 20 mA / 200 mA / 20 A | Accuracy: ±(1.0% rdg + 15 digits) | Freq. response: 40–400 Hz |
| Resistance | 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ | Accuracy: ±(0.8% rdg + 3 digits) |
| Capacitance | 6 nF – 20 mF (8 ranges, Auto Ranging) | Accuracy: ±(3.5% rdg + 20 digits) |

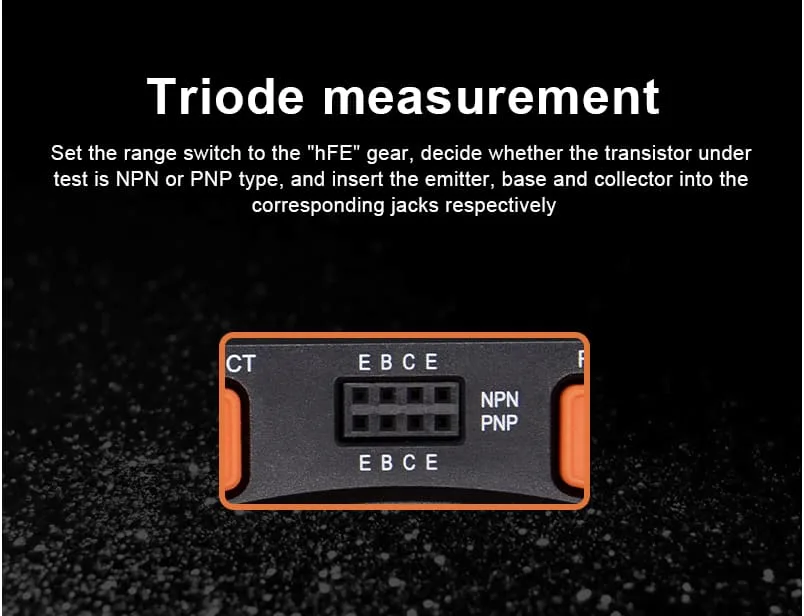

| Other Functions | NCV, Torch, ACV Frequency, A/V Continuity, Diode Test, Transistor (hFE) Test, Backlight, Data Hold, REL Measurement, Auto Power Off, Low Battery Indicator |
| Accessories | Holster (installed), test leads, user manual, 2×AA batteries |
| Dimensions & Weight | 178 × 86 × 52 mm | ~360 g (with battery & holster) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
