V 92 S Smart Digital Multimeter True RMS Auto Ranging
Fully automatic Smart Digital Multimeter — intelligent mode auto-detects what you're measuring, dual display and analog bar graph.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

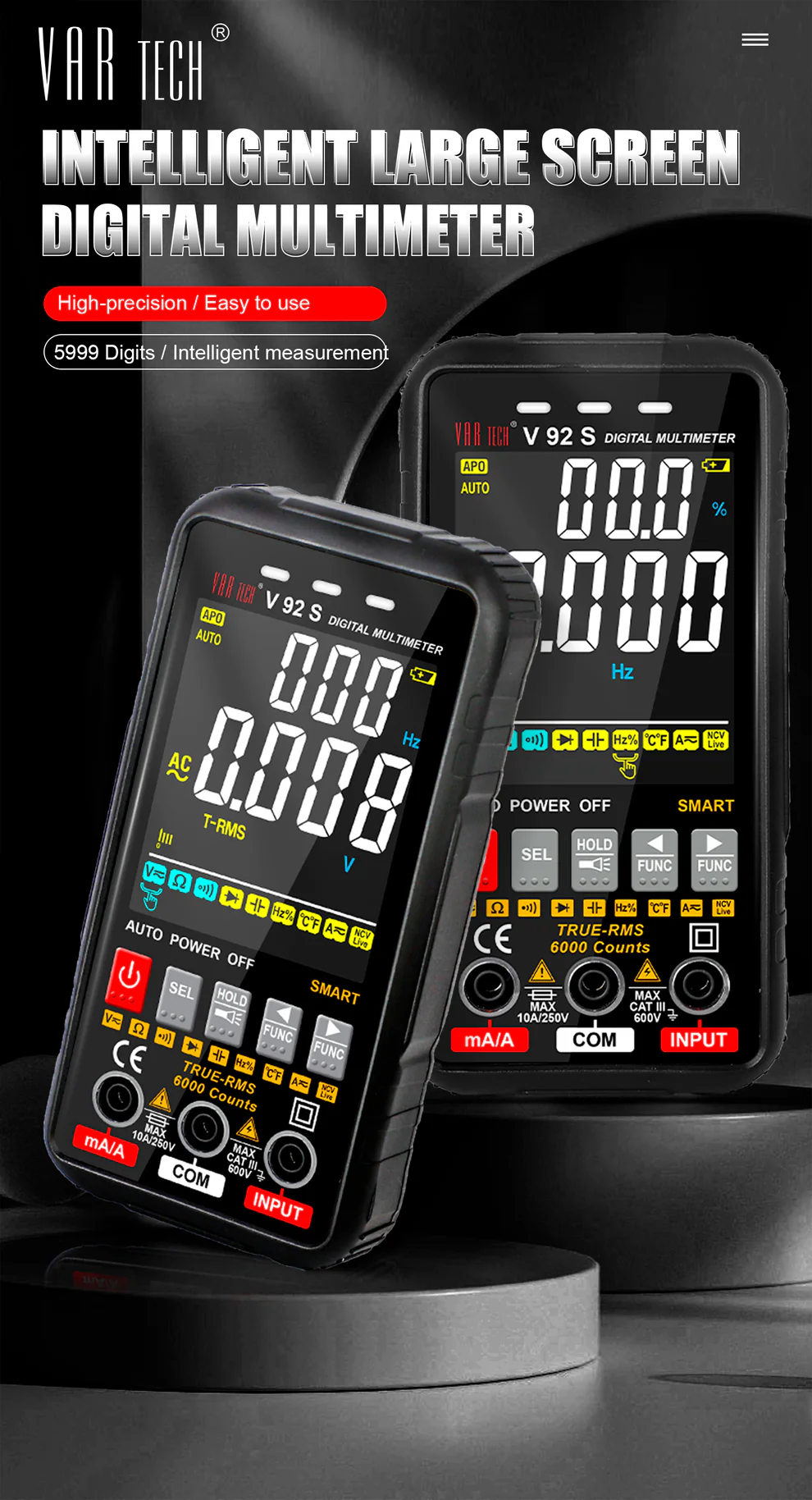

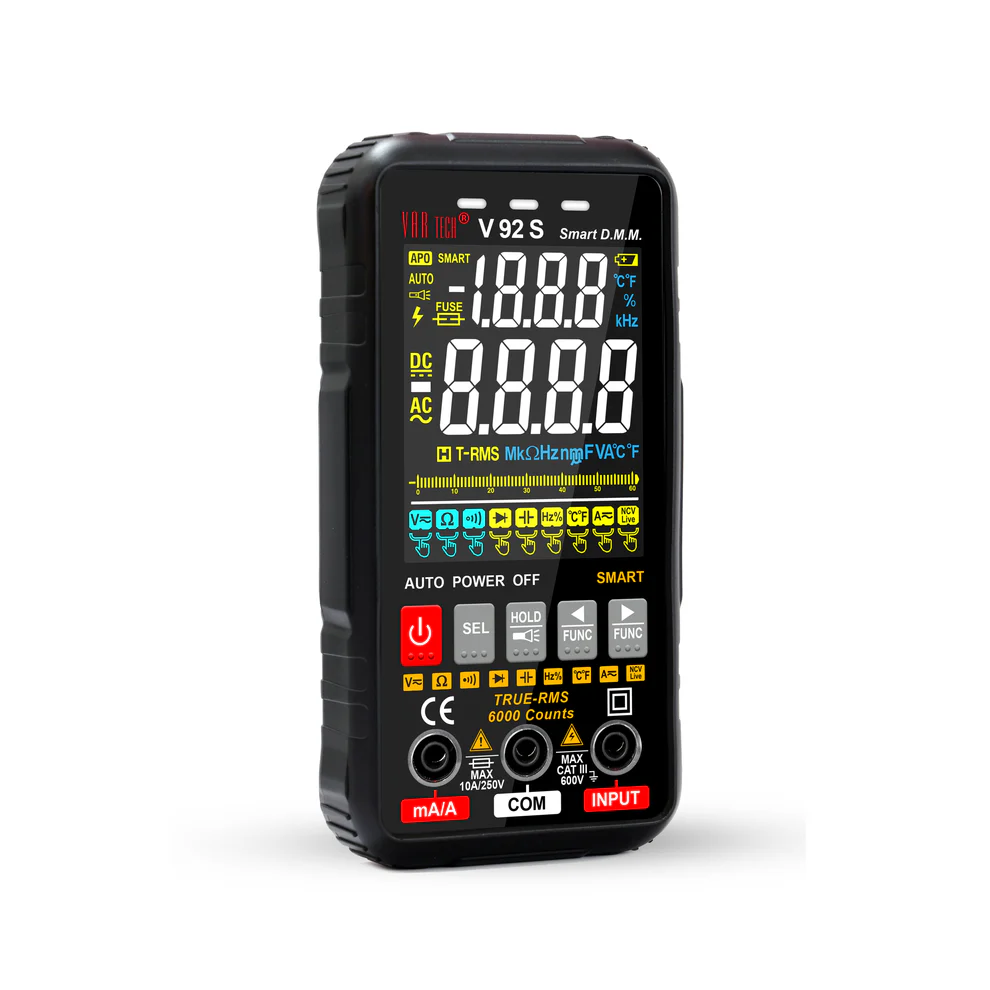

The Vartech V 92 S is Vartech's intelligent Smart Digital Multimeter — it thinks for you. In Intelligent mode, the meter automatically detects the measurement function and sets the range without any input from the user, making it the fastest and safest multimeter for repetitive field testing. A dual primary and secondary display with analog bar graph lets you monitor two parameters simultaneously, while the Jack Prompt and Burnt Fuse warning actively protect you and the instrument from connection errors.
Key Features

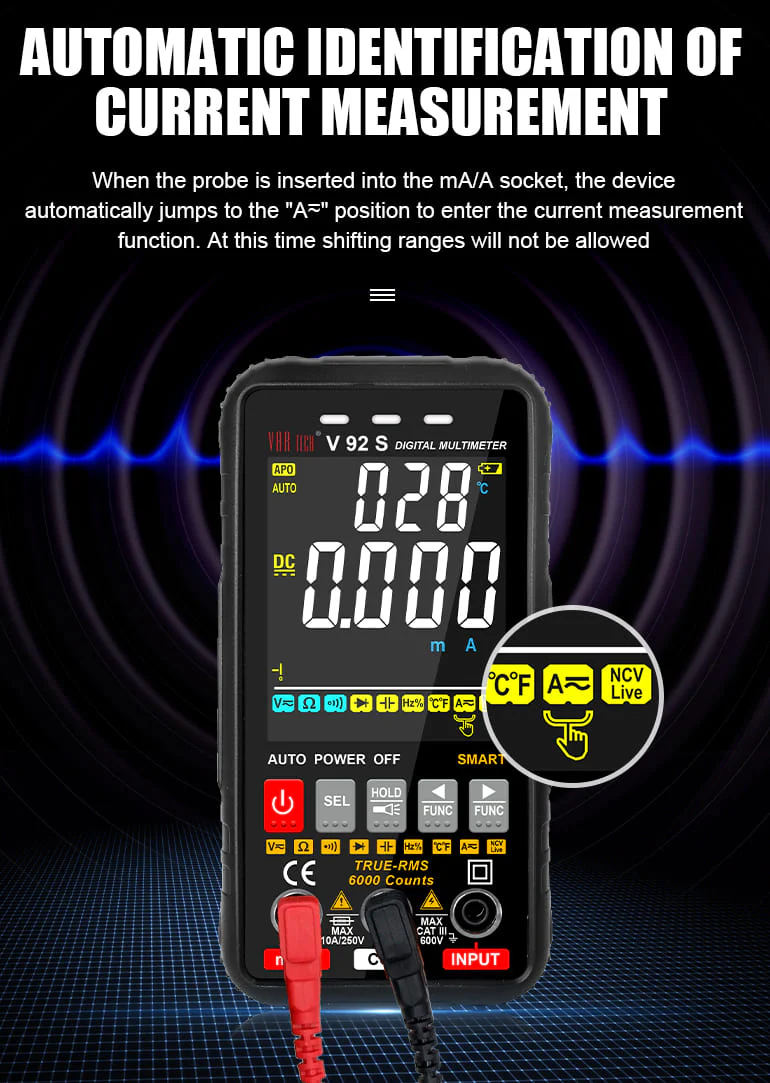

- Intelligent mode with automatic function and range detection — point, probe and read; the meter identifies voltage, current, resistance or continuity and configures itself instantly
- Dual display (primary + secondary) with analog bar graph — monitor two parameters at once; the bar graph reveals signal fluctuations and trends that digits alone can miss

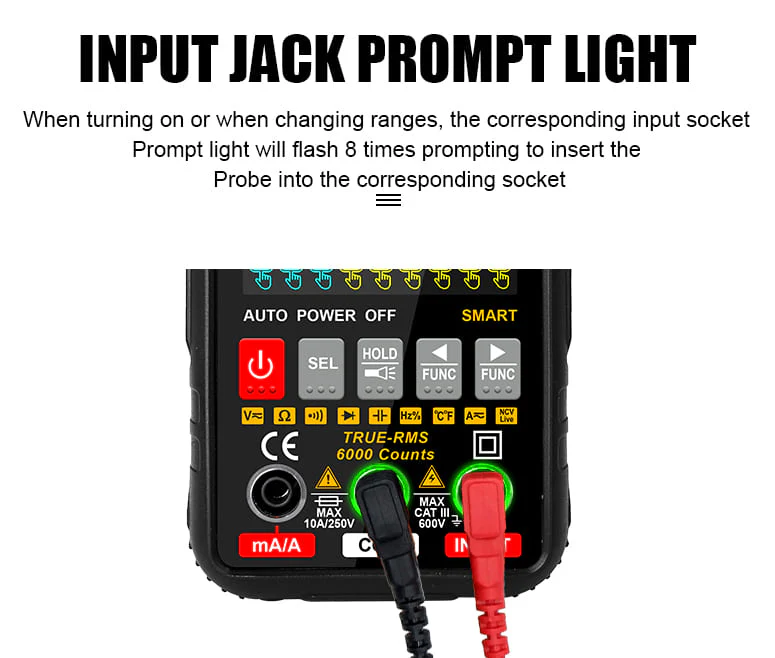

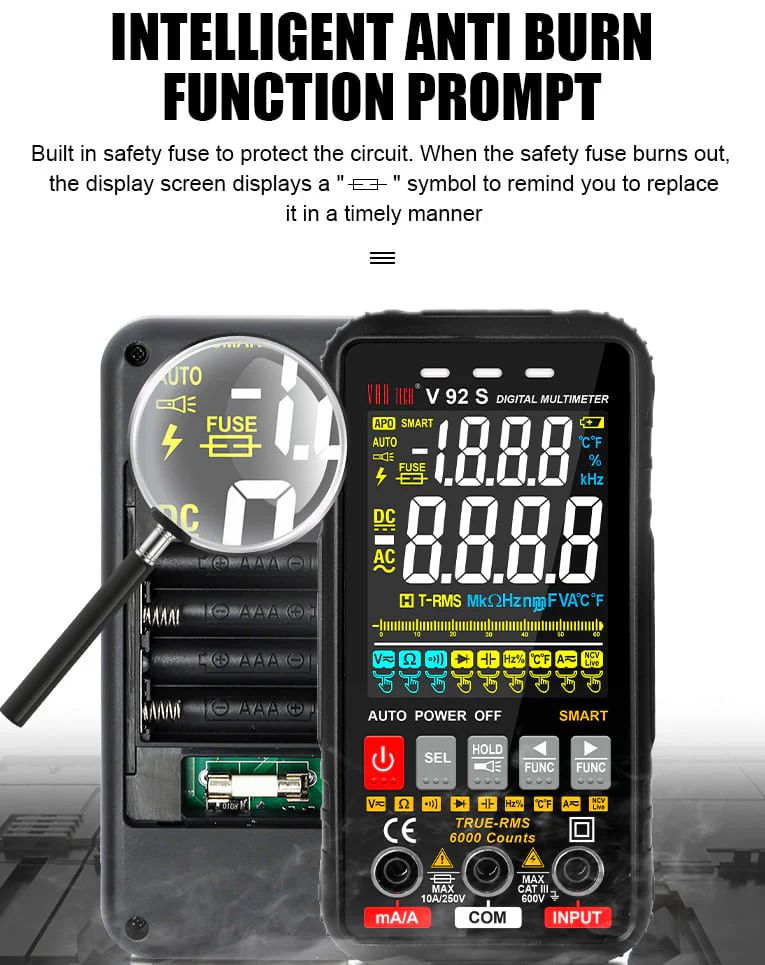

- Jack Prompt and Burnt Fuse warning — alerts you before a misconnection damages the meter; critical safety features absent on standard multimeters
- True RMS 6000 counts — accurate measurement on any waveform including non-sinusoidal loads; 3× the resolution of basic meters
- Extended temperature range to −40 °C — reliable in cold-weather environments and refrigeration plant testing
- Capacitance up to 60 mF, frequency up to 10 MHz — covers capacitor testing and high-frequency circuit work beyond standard meter capability

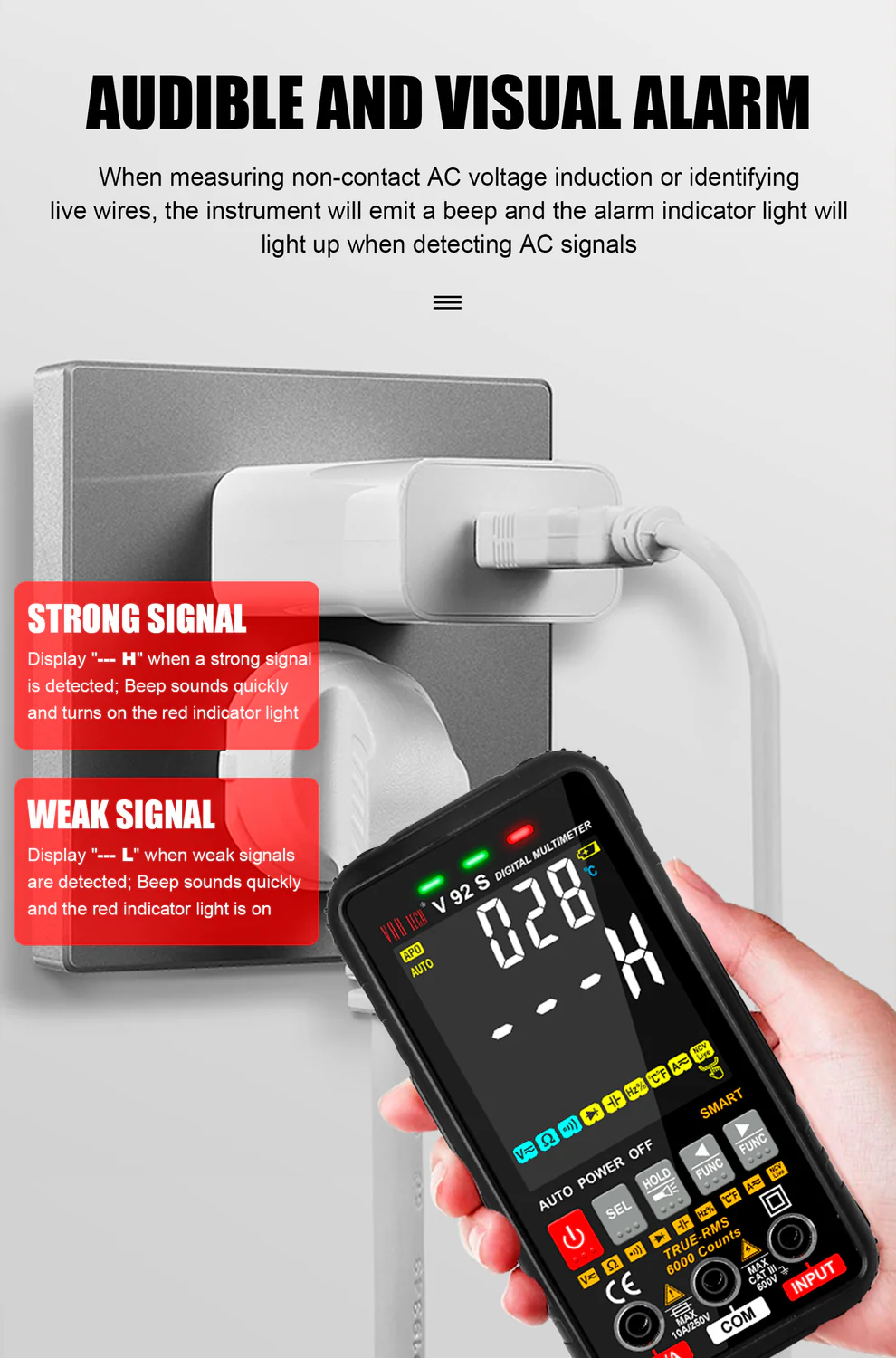

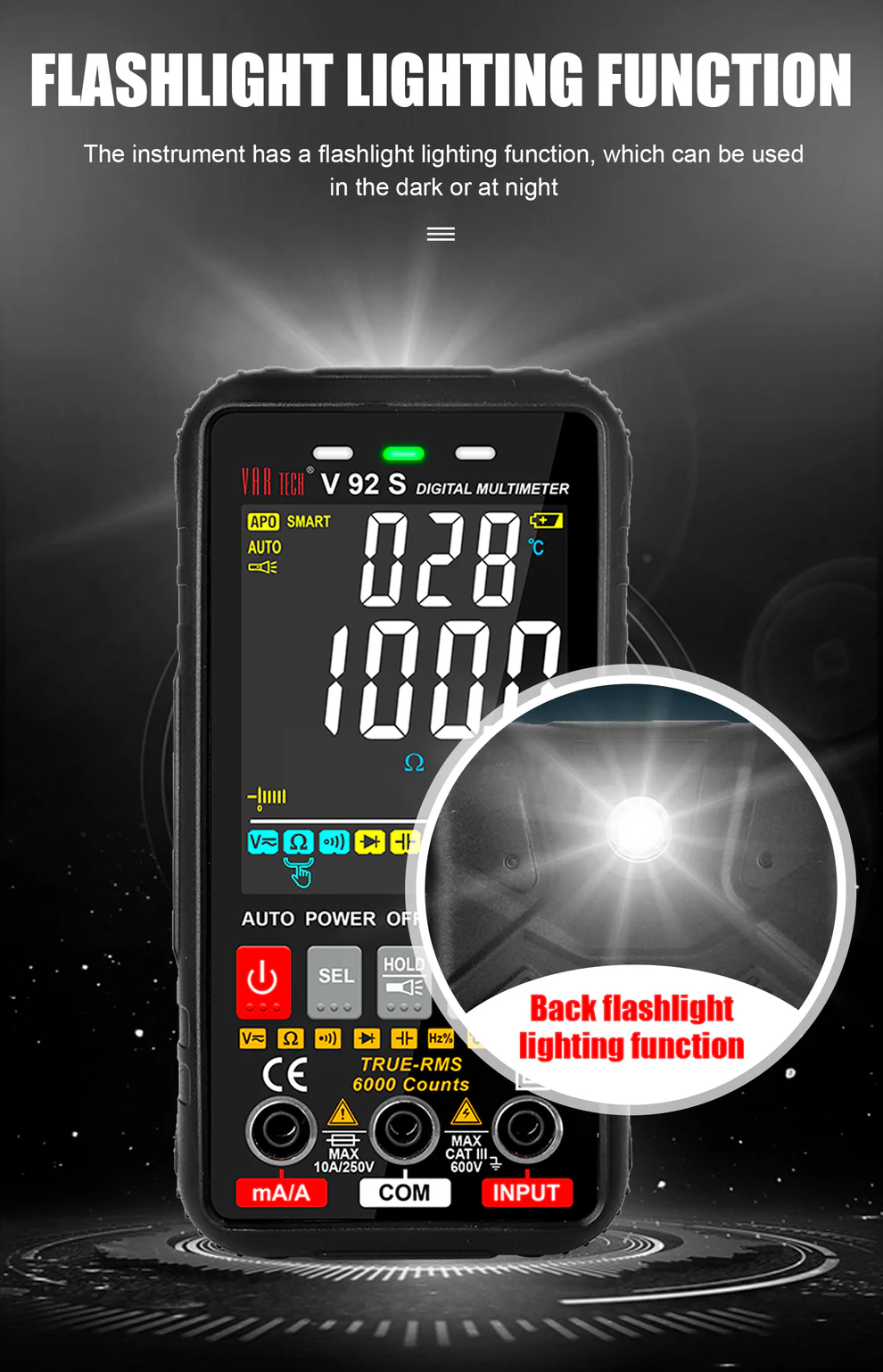

- NCV with audio and visual indication, torch and auto power off — complete set of field-safety features in one instrument
Technical Specifications
| Display | 6000 Counts, 3⅚ Digits — Primary & Secondary Display, Analog Bar Graph |
| True RMS | Yes |
| Ranging | Fully Automatic with Intelligent Mode |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V | Accuracy: ±(0.5% rdg + 3 digits) |
| AC Voltage (True RMS) | 6 V / 60 V / 600 V | Accuracy: ±(1% rdg + 3 digits) |
| DC Current | 600 mA / 6 A / 10 A | Accuracy: ±(1.2% rdg + 3 digits) |
| AC Current (True RMS) | 600 mA / 6 A / 10 A | Accuracy: ±(1.2% rdg + 3 digits) |
| Resistance | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 60 MΩ | Accuracy: ±(1% rdg + 5 digits) |
| Capacitance | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF | Accuracy: ±(3.5% rdg + 20 digits) |
| Frequency | 6 Hz – 10 MHz | Accuracy: ±(1% rdg + 3 digits) |
| Temperature | −40 °C to 1000 °C (−40 °F to 1832 °F) |
| Other Functions | NCV, Torch, ACV Frequency, A/V Continuity, Diode Test, Backlight, Data Hold, Auto Power Off, Low Battery Indicator, Jack Prompt, Burnt Fuse Prompt, Intelligent Mode |

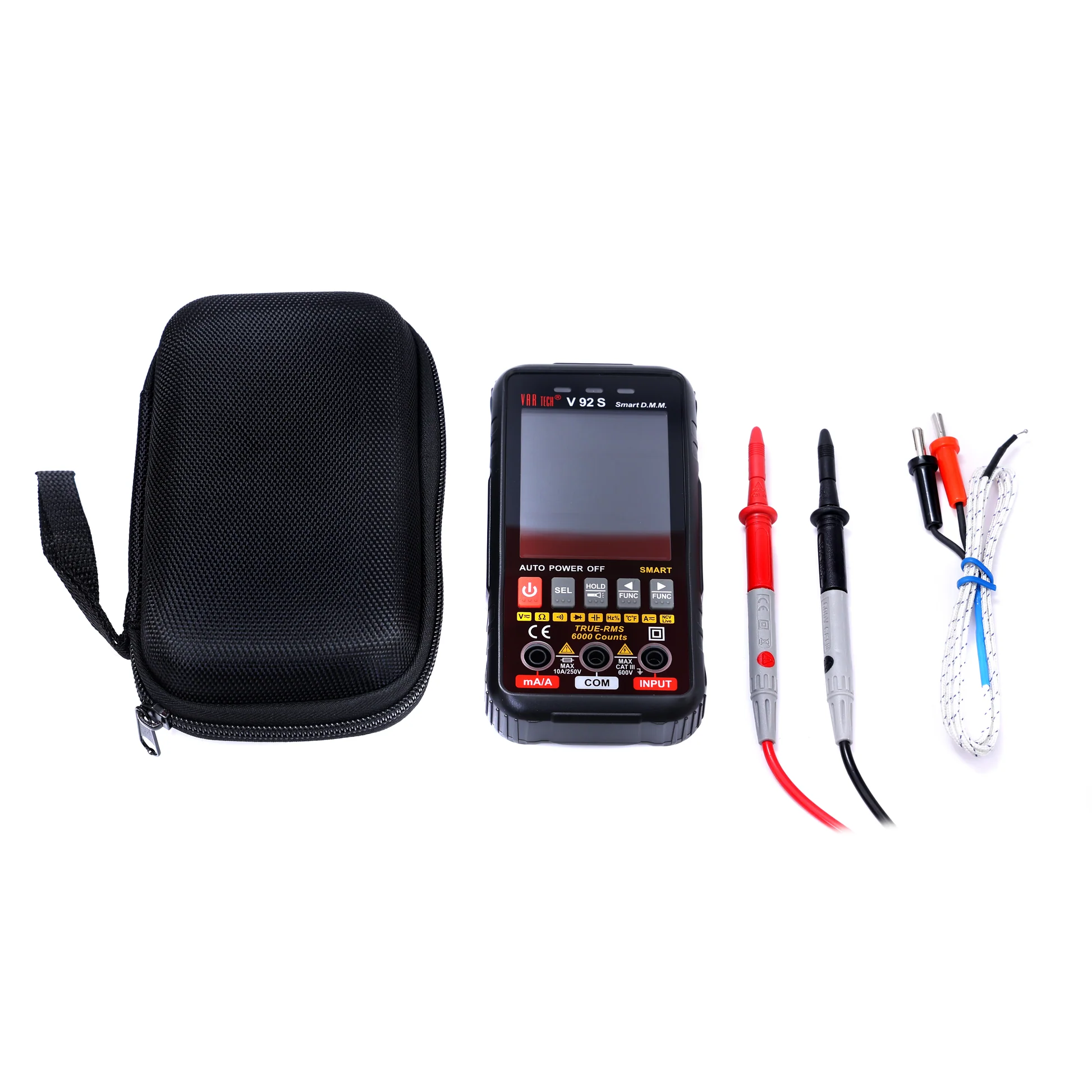

| Accessories | Holster (installed), test leads, user manual, 4×AAA batteries (optional), temperature probe |
| Dimensions & Weight | 146 × 72 × 50 mm | ~235 g (with battery & holster) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
