— Vartech® Multimeters
V 980 True RMS Digital Multimeter 20000 Counts
Premium 4½-digit 20000-count True RMS multimeter — 0.1% DC voltage accuracy, conductance measurement and full-function protection.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

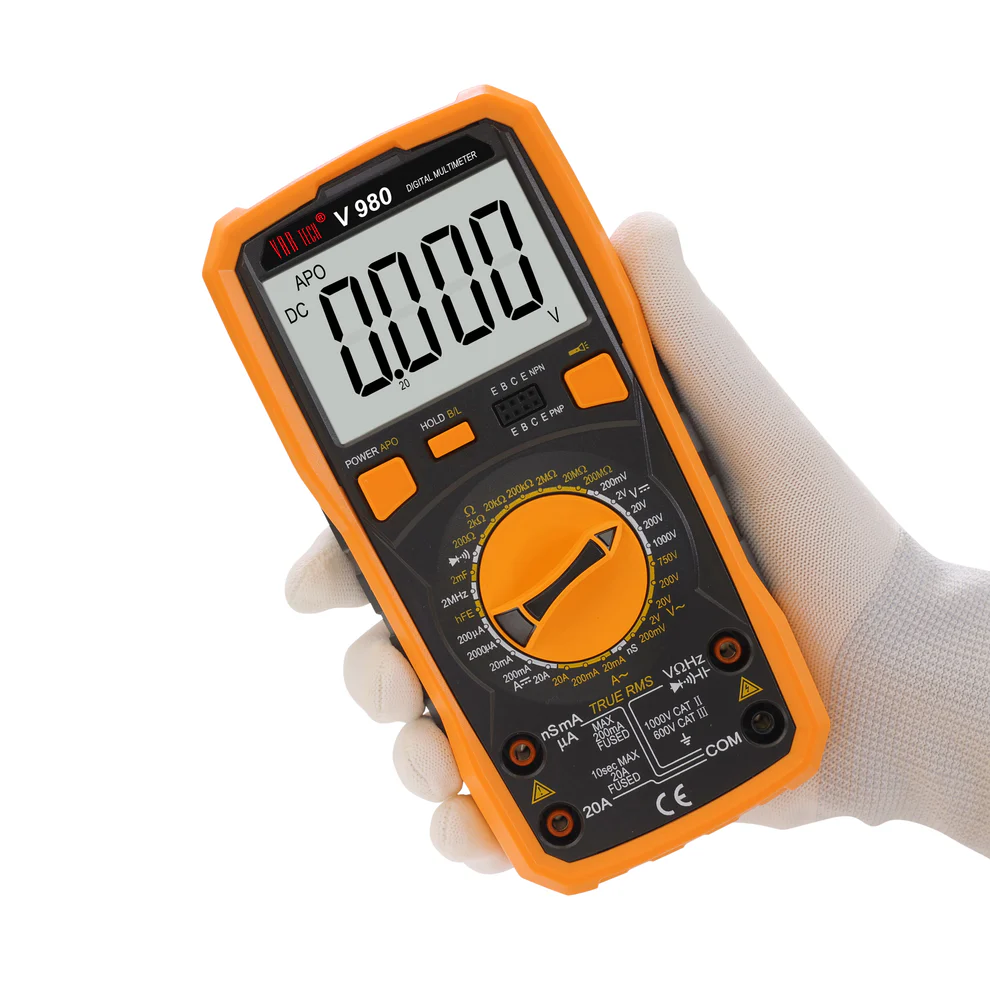

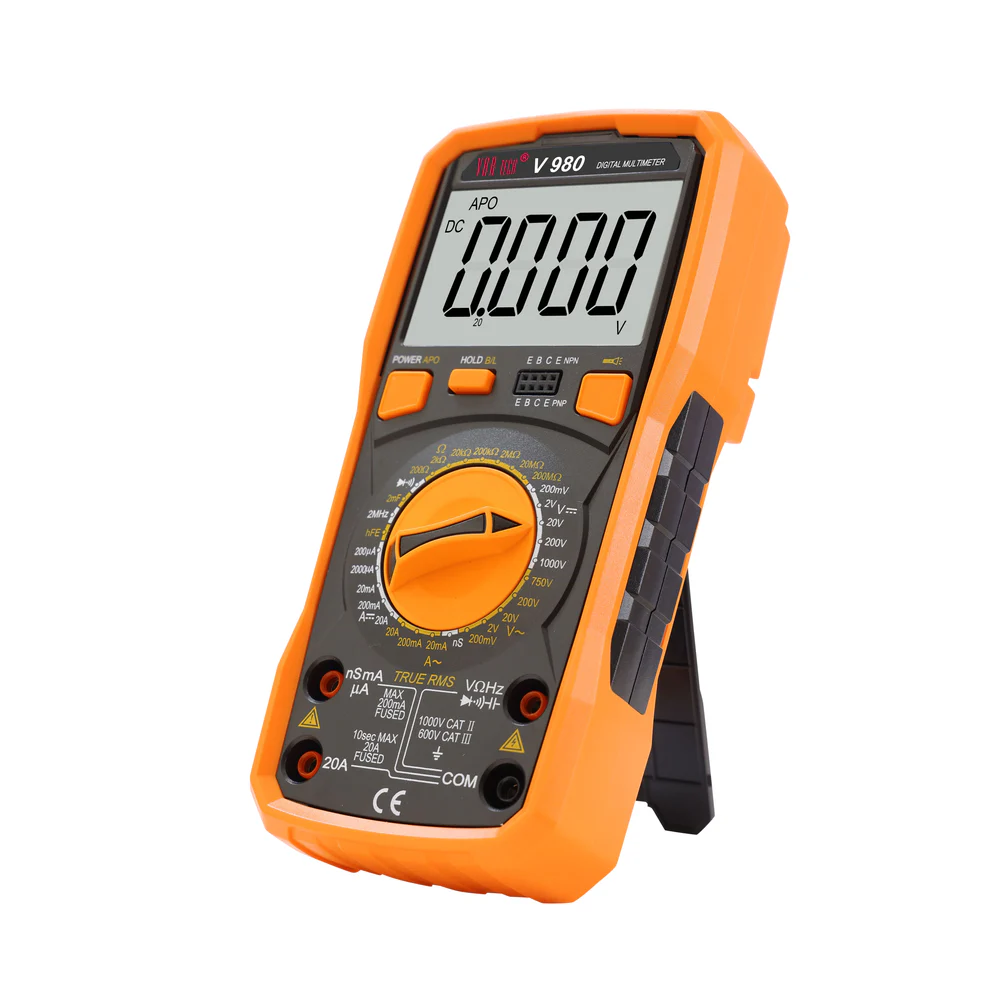

The Vartech V 980 is Vartech's premium handheld True RMS digital multimeter, built for senior engineers, quality control teams and calibration professionals where ordinary accuracy is simply not enough. With 4½ digits and 20,000 counts — ten times the resolution of a standard 2000-count meter — and a DC voltage accuracy of ±0.1%, it delivers near-bench-top precision in a rugged, field-portable body. The addition of conductance measurement, full-function fuse protection and NCV gives it a complete professional specification that very few handheld meters can match.
Key Features
- 20,000 counts (4½ digits) — resolves readings to 5 significant figures; detects millivolt-level changes and component variations that standard 2000-count or 6000-count meters cannot see
- DC voltage accuracy of ±0.1% — laboratory-grade precision in a handheld body; suitable for calibration checks and reference measurements
- Conductance (nS) measurement — evaluate insulation quality, leakage paths and component degradation beyond what resistance alone can reveal; a function found on very few handheld meters
- True RMS up to 1000 V DC / 750 V AC and 20 A — covers the full range of power system measurements with correct readings on any waveform
- Full-function fuse protection (0.2 A & 20 A) — comprehensive overload protection across all current measurement ranges
- Frequency up to 2 MHz, capacitance up to 2 mF, temperature to 1000 °C — a genuinely comprehensive measurement range
- NCV detection and torch — safe live-conductor identification in field and panel environments
- Transistor (hFE), diode and A/V continuity test — complete component-level diagnostic capability
Technical Specifications
| Display | 4½ Digits, 20000 Counts |
| True RMS | Yes |
| Ranging | Manual |
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.1% rdg + 5 digits) |
| AC Voltage (True RMS) | 200 mV / 2 V / 20 V / 200 V / 750 V | Accuracy: ±(1% rdg + 25 digits) |
| DC Current | 200 µA / 2000 µA / 20 mA / 200 mA / 20 A | Accuracy: ±(0.5% rdg + 4 digits) |
| AC Current (True RMS) | 20 mA / 200 mA / 20 A | Accuracy: ±(1.5% rdg + 15 digits) |
| Resistance | 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(0.4% rdg + 10 digits) |
| Capacitance | 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF | Accuracy: ±(4% rdg + 50 digits) |
| Frequency | 200 Hz / 2 KHz / 20 KHz / 200 KHz / 2 MHz | Accuracy: ±(0.1% rdg + 3 digits) |
| Conductance Test | Yes (nS) |
| Other Functions | Transistor (hFE) Test, Diode Test, A/V Continuity, NCV, Torch, Data Hold, Auto Power Off, Fuse Protection (0.2 A & 20 A), Low Battery Indicator |
| Accessories | Holster, test leads, user manual, battery |
| Dimensions & Weight | 186 × 92 × 52 mm | ~400 g (including battery) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
Interested in the Vartech V 980? Get a quote today.
Email us with your model, quantity and application — we respond within one business day.
