3005-3 D2 30V / 5A (×2) + 5V / 3A Triple-Output Linear DC Regulated Power Supply
3-channel linear DC supply — 0–30 V / 0–5 A × 2 variable + 5 V / 3 A fixed, with 5-turn precision pot, 4 LED displays and Output On/Off.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

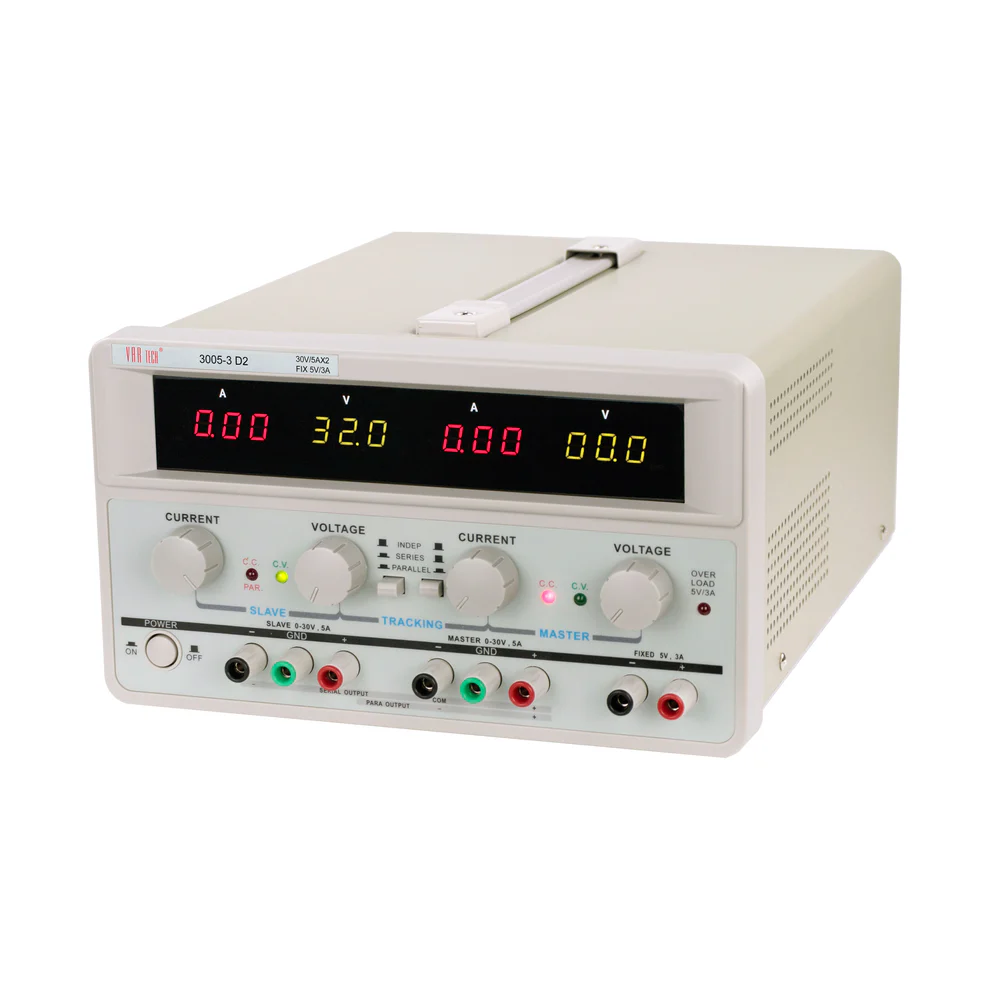

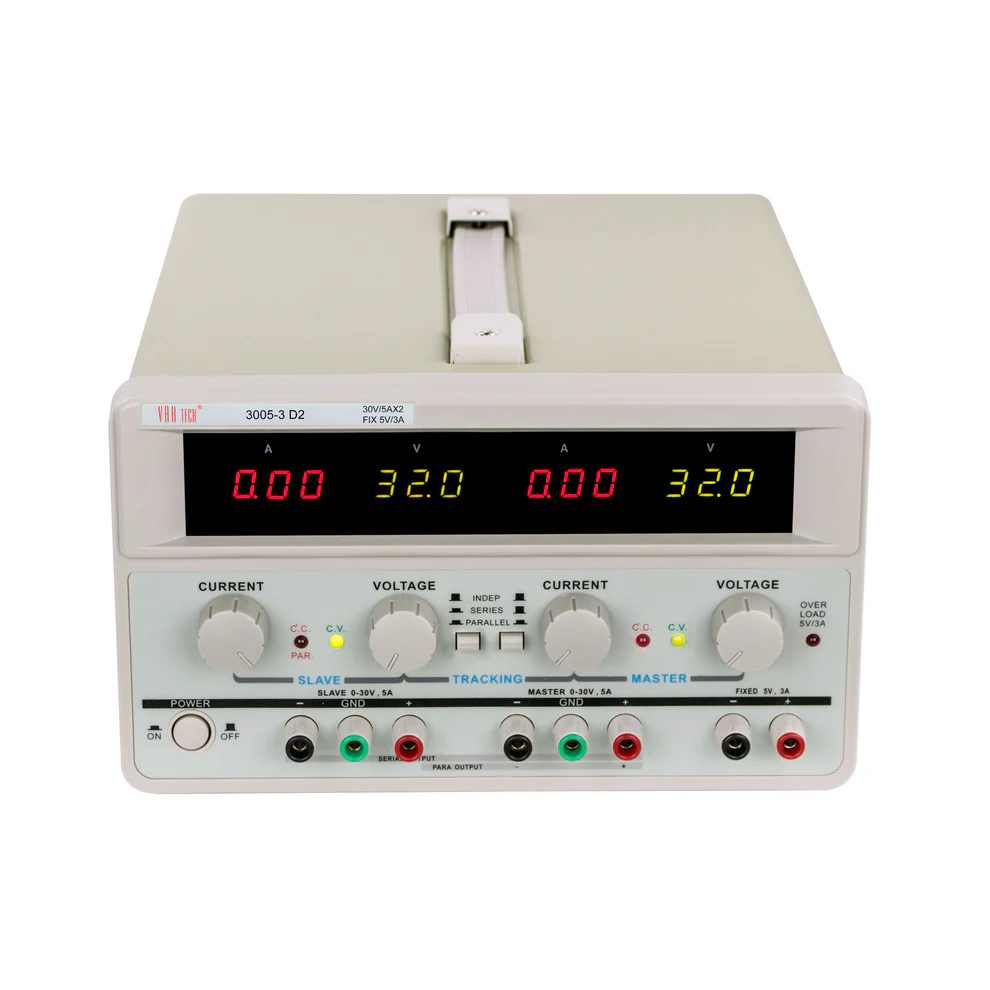

The Vartech 3005-3 D2 is a triple-output transformer-based linear DC regulated power supply with three independent channels: two fully variable 0–30 V / 0–5 A channels and one fixed 5 V / 3 A output. A 5-turn multiturn potentiometer provides precise voltage control on the variable channels. Outputs can be used independently, in series or in parallel. The unit features 4 LED DPMs, Output On/Off switch, and automatic CV/CC switching on the variable channels.
Key Features
- 3 independent channels: 0–30 V / 0–5 A × 2 variable + 5 V / 3 A fixed
- 5-turn multiturn potentiometer for precise voltage control
- Independent, series and parallel operation of variable channels
- Linear (transformer-based) — heavy duty
- Auto CV/CC on variable channels
- 4 LED DPMs — V and I of 3-digit resolution
- Output On/Off switch
Technical Specifications
| Variable Output (Ch 1 & 2) | 0–30 V, 0–5 A × 2 |
| Fixed Output | 5 V, 3 A (1 channel) |
| Type | Linear (transformer-based), Triple output |
| CV Line Regulation | ≤ 0.01 % + 3 mV |
| CV Load Regulation | ≤ 0.01 % + 3 mV (I ≤ 3 A) | ≤ 0.02 % + 5 mV (I ≥ 3 A) |
| CC Line Regulation | ≤ 0.2 % + 3 mA |
| CC Load Regulation | ≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I ≥ 3 A) |
| Ripple & Noise (CV) | ≤ 1 mV rms (I ≤ 3 A) | ≤ 2 mV rms (I ≥ 3 A) |
| Ripple & Noise (CC) | ≤ 3 mA rms (I ≤ 3 A) | ≤ 6 mA rms (I ≥ 3 A) |
| Voltage Control | 5-turn (multiturn) potentiometer for precise adjustment |
| Protection | Constant current, overload and reverse-polarity protection |
| Display | 4 LED DPMs — V and I (3 digits each) |
| Indication Accuracy | ± (1 % + 2 digits) |
| Power Supply | 220 V ±10 %, 50 Hz ±2 Hz |
| Operating Environment | 0–40 °C | RH < 80 % |
| Dimensions & Weight | 255 × 155 × 330 mm | Approx. 9 kg |
| Accessories | Power cord & instruction manual |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
