3005-4 30V / 5A (×2) + 2.2–15V / 1A Quad-Output Linear DC Regulated Power Supply
4-channel linear DC supply — 0–30 V / 0–5 A × 2 (main) + 2.2–15 V / 1 A × 2 (auxiliary), with 4 LED meters, preset V & I and Output On/Off.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

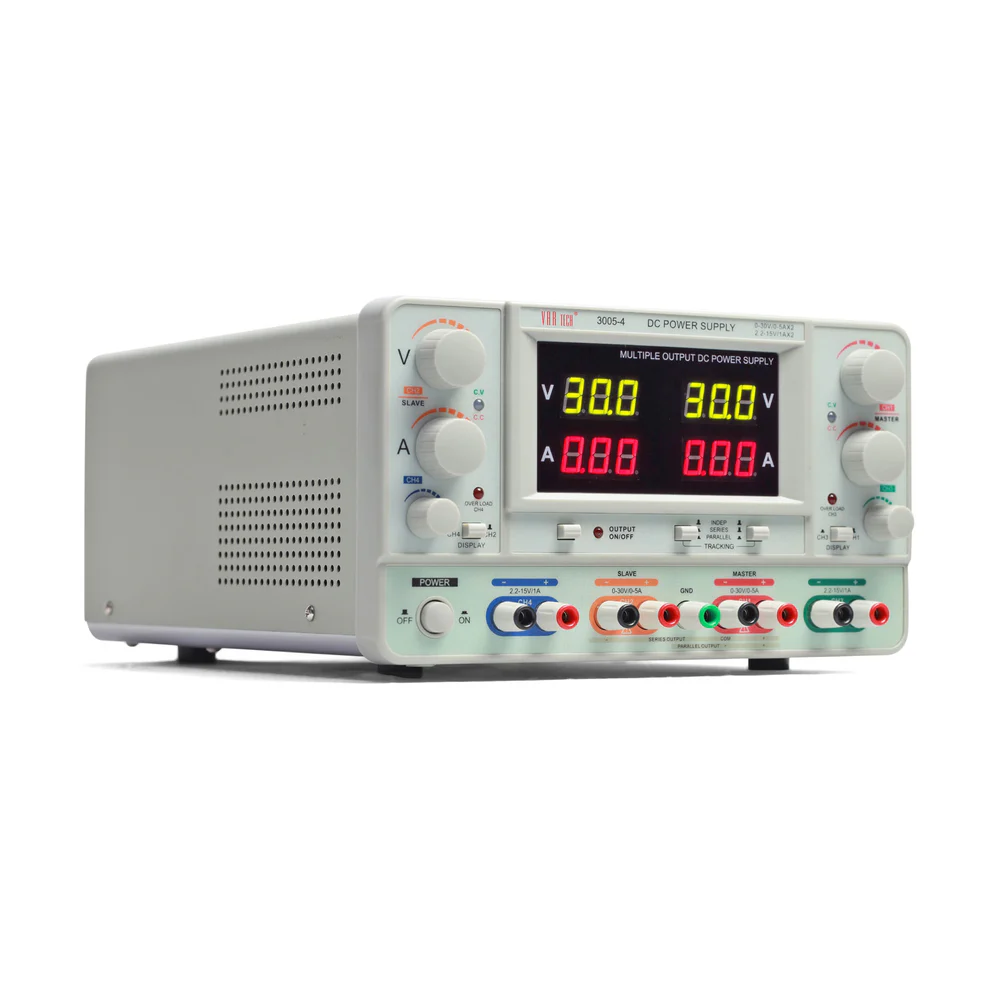

The Vartech 3005-4 is a quad-output transformer-based linear DC regulated power supply. It provides two fully variable channels (0–30 V / 0–5 A, Ch 1 & 2) and two auxiliary channels (2.2–15 V / 1 A, Ch 3 & 4). Four LED meters display V and I for the main variable channels. Preset voltage and current facility is included, along with Output On/Off switch. Designed for industrial and laboratory applications requiring multiple independent supply rails. Note: a lower-current variant (3003-4, 30 V / 3 A for Ch 1 & 2) is also available in the same chassis.
Key Features
- 4 independent output channels
- Ch 1 & 2: 0–30 V / 0–5 A (fully variable)
- Ch 3 & 4: 2.2–15 V / 1 A (auxiliary variable)
- Preset V & I facility
- Linear (transformer-based) — heavy duty
- 4 LED DPMs for V and I of the main channels
- Output On/Off switch | Auto CV/CC
Technical Specifications
| Ch 1 & 2 Output | 0–30 V, 0–5 A (fully variable) × 2 |
| Ch 3 & 4 Output | 2.2–15 V, 1 A × 2 |
| Type | Linear (transformer-based), Quad output |
| CV Line Reg (Ch 1 & 2) | ≤ 0.01 % + 3 mV |
| CV Load Reg (Ch 1 & 2) | ≤ 0.01 % + 3 mV (I ≤ 3 A) | ≤ 0.02 % + 5 mV (I > 3 A) |
| CC Line Reg (Ch 1 & 2) | ≤ 0.2 % + 3 mA |
| CC Load Reg (Ch 1 & 2) | ≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I > 3 A) |
| Ripple & Noise (Ch 1 & 2 CV) | ≤ 1 mV rms (I ≤ 3 A) | ≤ 2 mV rms (I > 3 A) |
| Ripple & Noise (Ch 1 & 2 CC) | ≤ 3 mA rms (I ≤ 3 A) | ≤ 6 mA rms (I > 3 A) |
| Load Reg / Ripple (Ch 3 & 4) | ≤ 25 mV load regulation | ≤ 2 mV rms ripple |
| Protection | Overload and reverse-polarity protection |
| Display | 4 LED DPMs — 3-digit resolution (V and I for Ch 1 & 2) |
| Display Resolution | 100 mV / 10 mA |
| Display Accuracy (real) | ± (1 % reading + 2 digits) |
| Display Accuracy (preset) | ± (1 % reading + 8 digits) |
| Power Supply | AC 110 V / 220 V ±10 % selectable, 50/60 Hz |
| Operating Environment | 0 °C–40 °C | ≤ 80 % RH |
| Dimensions & Weight | 250 W × 150 H × 310 D mm | 10 kg |
| Accessories | Power cord & operation manual |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
