— Vartech® DC Power Supplies
6005 S 60V / 5A Slim SMPS DC Regulated Power Supply (300W)
0–60 V, 0–5 A, 300 W slim SMPS power supply — OVP/OCP/OPP/OTP, panel lock, output On/Off, coarse & fine control.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

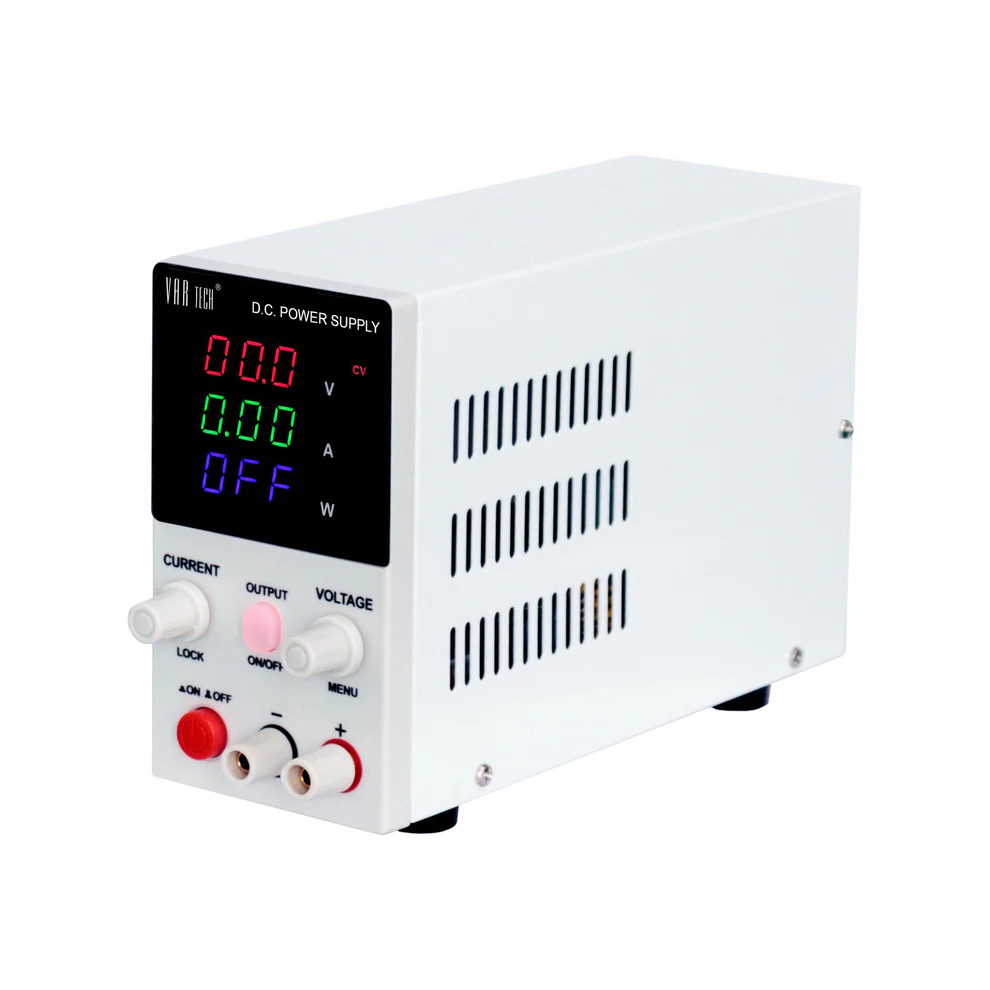

The Vartech 6005 S is a slim, lightweight SMPS-based DC regulated power supply rated at 0–60 V, 0–5 A (300 W). In the same compact 73 × 140 × 205 mm chassis as the 3005 S and 3010 S, it delivers up to 60 V output — useful for higher-voltage bench testing where a lightweight supply is required. Adjustable OVP (up to 74.4 V), OCP and OPP, panel lock, beeper, output On/Off and preset V/I are all included.
Key Features
- 0–60 V, 0–5 A, 300 W rated output
- Slim design — 73 × 140 × 205 mm, ~1 kg
- SMPS post-stage voltage regulation — efficiency > 85 %
- Auto CV / CC switching | Coarse & Fine controls
- Adjustable OVP (up to 74.4 V), OCP and OPP | OTP protection
- Panel lock | Beeper alarm | Output On/Off
- Preset voltage and current when output is OFF
Technical Specifications
| Rated Output | 60 V, 5 A |
| Rated Power | 300 W |
| Max Display | 62 V, 5.1 A |
| OVP Range | 0.1 V–74.4 V |
| OCP Range | 0.01 A–5.61 A |
| OPP Range | 0.1 W–347 W |
| Line Regulation | CV ≤ 0.2 % of rated voltage | CC ≤ 0.2 % of rated current |
| Load Regulation | CV ≤ 0.2 % of rated voltage | CC ≤ 0.2 % of rated current |
| Ripple & Noise | CV ≤ 0.5 % FS rms | CC ≤ 0.5 % FS rms |
| Efficiency | > 85 % |
| Display | 3-digit LED (V, A, W) |
| Display Resolution | Voltage: 0.1 V | Current: 0.01 A | Power: 0.01 W – 0.1 W – 1 W (auto) |
| Display Accuracy | ± (0.1 % reading + 1 digit) |
| Readback Accuracy | ± (0.2 % reading + 1 digit) |
| Protection | OVP, OCP, OPP, OTP and short-circuit |
| Operating Temp. & Humidity | 0 °C–40 °C | ≤ 80 % RH |
| Storage Temp. & Humidity | -10 °C–70 °C | ≤ 70 % RH |
| Power Supply | AC 220 V ±10 %, 50/62 Hz |
| Dimensions & Weight | 73 × 140 × 205 mm | Approx. 1 kg |
| Accessories | Power cord × 1, Operation manual × 1 |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
