— Vartech® DC Power Supplies
6010 60V / 10A Heavy-Duty Linear DC Regulated Power Supply
0–60 V, 0–10 A heavy-duty linear DC supply — 4-digit ammeter, preset V & I, CV/CC, Output On/Off.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

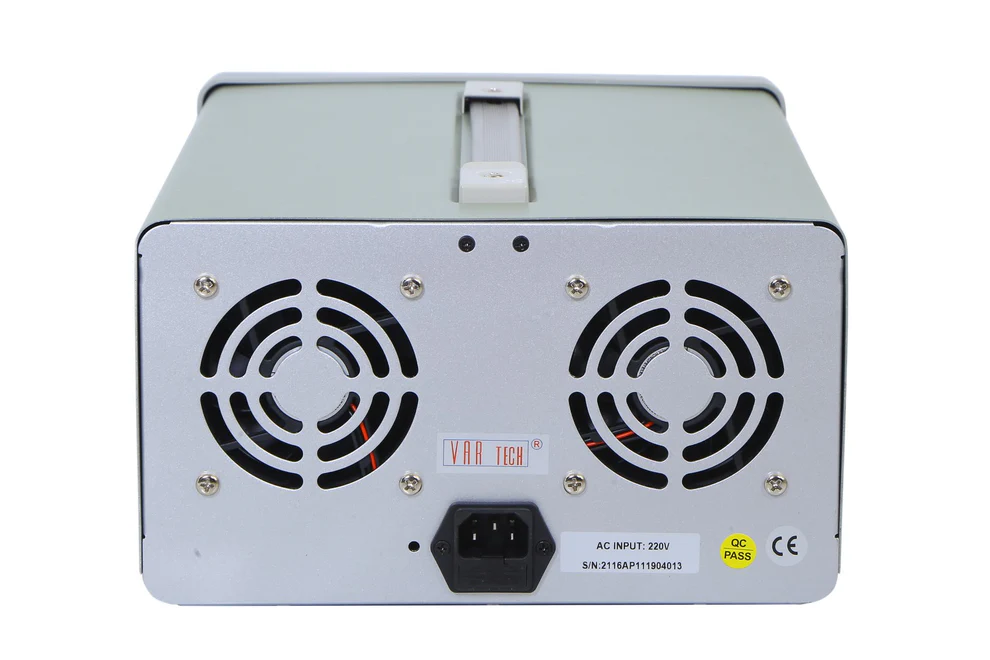

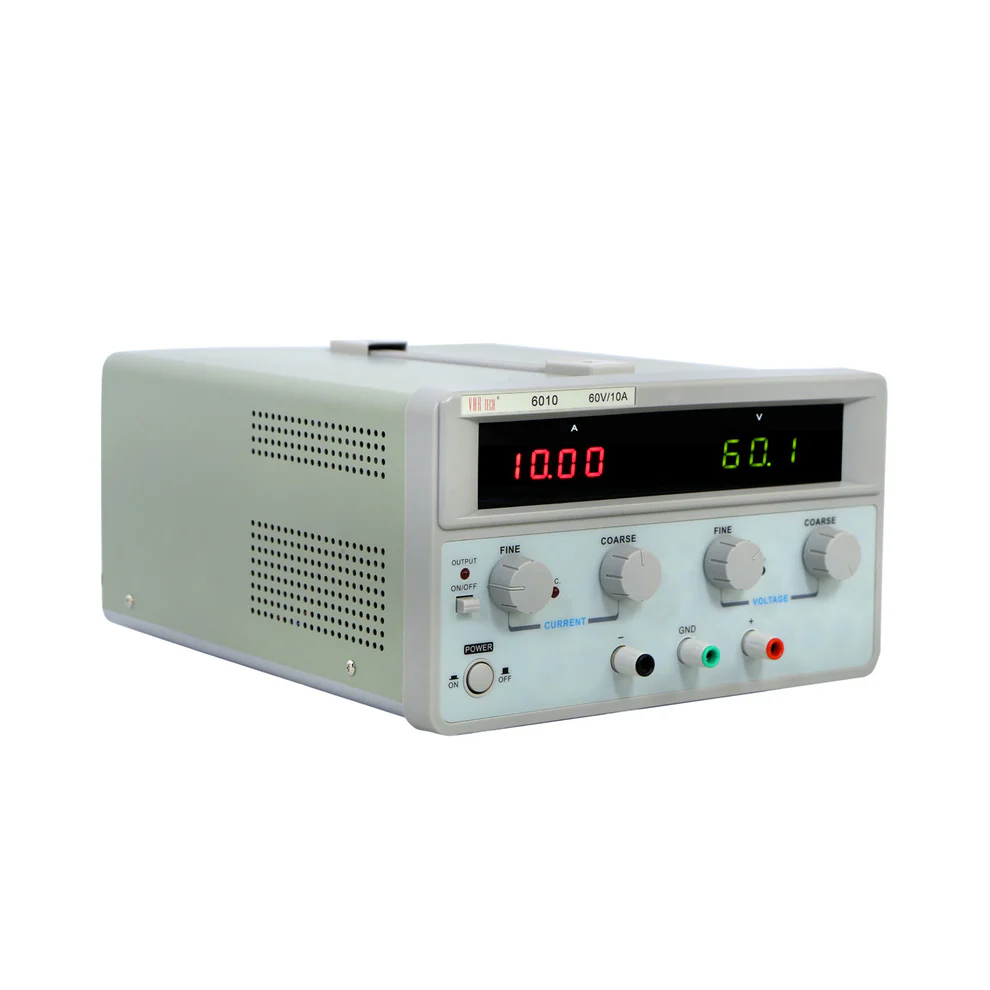

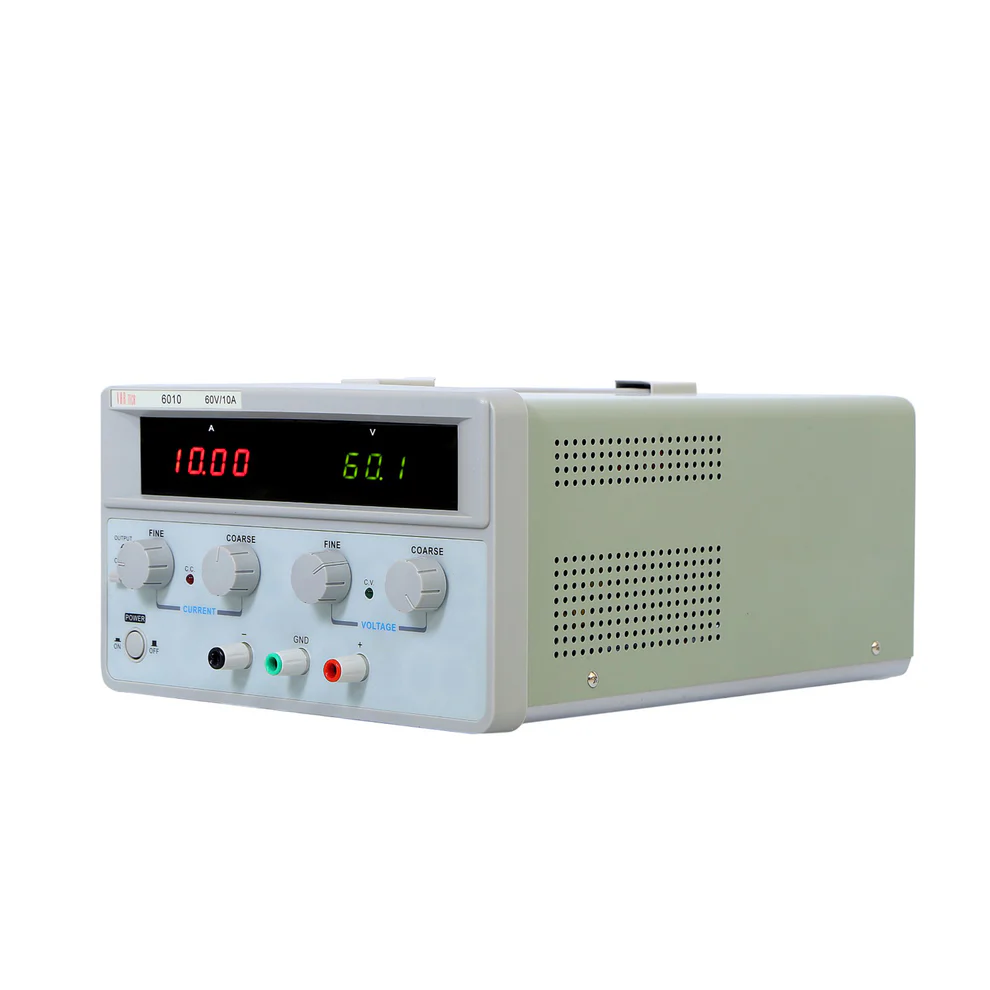

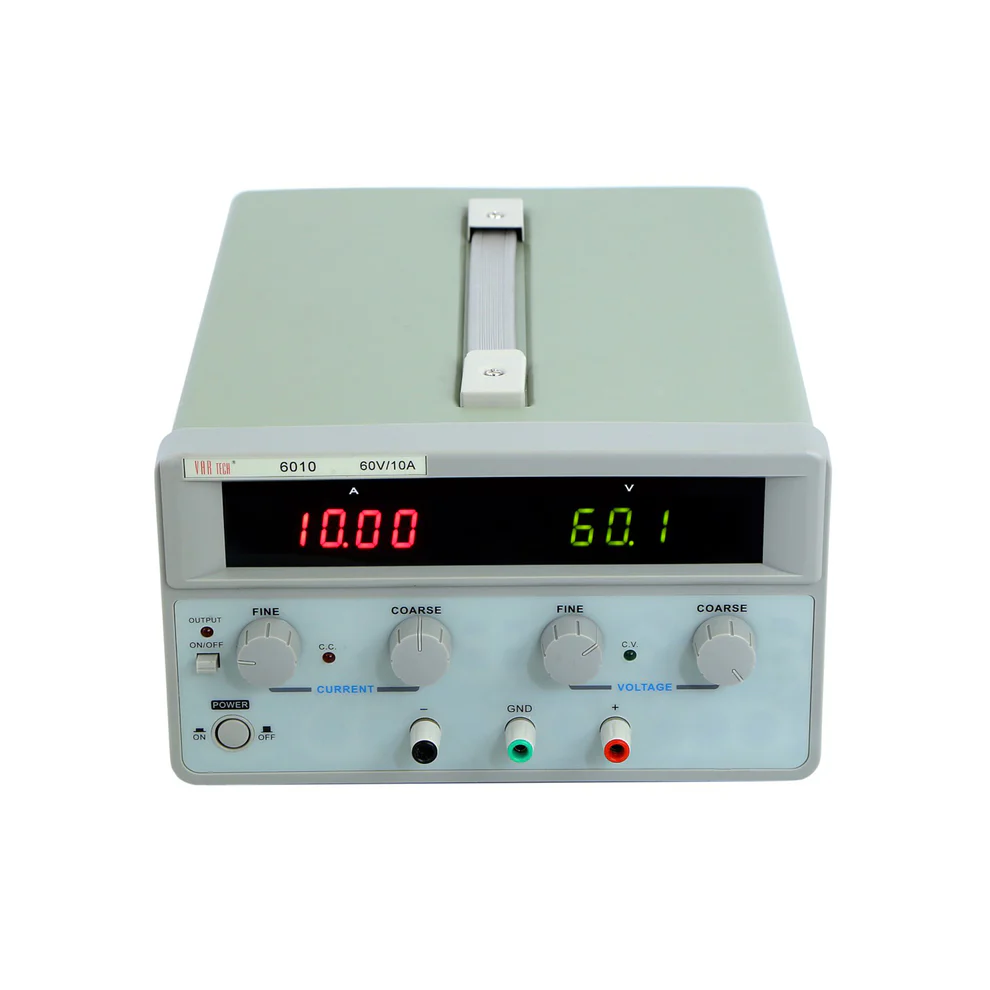

The Vartech 6010 is a heavy-duty single-output transformer-based linear DC regulated power supply rated at 0–60 V, 0–10 A. Like the 3020, it includes preset voltage and current facility in addition to the standard CV/CC, Output On/Off, and 4-digit ammeter LED display. Designed for higher-voltage, higher-current bench and industrial applications.
Key Features
- 0–60 V, 0–10 A — single output, fully variable
- Linear (transformer-based) — heavy duty, very stable
- Preset V & I control facility
- Automatic CV / CC mode switching
- 4-digit ammeter LED display (3 digits for voltage)
- Output On/Off switch
- Constant current and overload protection
Technical Specifications
| Output Voltage | 0–60 V (fully variable) |
| Output Current | 0–10 A (fully variable) |
| Type | Linear (transformer-based), Single output, Heavy duty |
| CV Line Regulation | ≤ 0.01 % + 5 mV |
| CV Load Regulation | ≤ 0.02 % + 5 mV |
| CC Line Regulation | ≤ 0.2 % + 3 mA |
| CC Load Regulation | ≤ 0.2 % + 3 mA (I ≤ 3 A) | ≤ 0.2 % + 5 mA (I > 3 A) | ≤ 0.2 % + 15 mA (I > 10 A) |
| Ripple & Noise (CV) | ≤ 3 mV rms |
| Ripple & Noise (CC) | ≤ 3 mA rms (I ≤ 3 A) | ≤ 10 mA rms (I > 3 A) |
| Preset V & I | Yes |
| Display | 3-digit LED (V) + 4-digit LED (A) |
| Indication Accuracy | Voltage: ±1 % + 2 digits | Current: ±2 % + 2 digits |
| Protection | Constant current and overload protection |
| Power Supply | 230 V ±10 %, 50 Hz ±2 Hz |
| Operating Environment | 0–40 °C | RH < 80 % |
| Dimensions & Weight | 255 × 155 × 330 mm | 14 kg |
| Accessories | Power cord & instruction manual |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
