PPS-6010 S 60V / 10A Programmable SMPS DC Power Supply
0–60 V, 0–10 A programmable SMPS supply — 5 × 4-digit LED displays, USB interface, ModBus-RTU, 6 memories, list mode.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

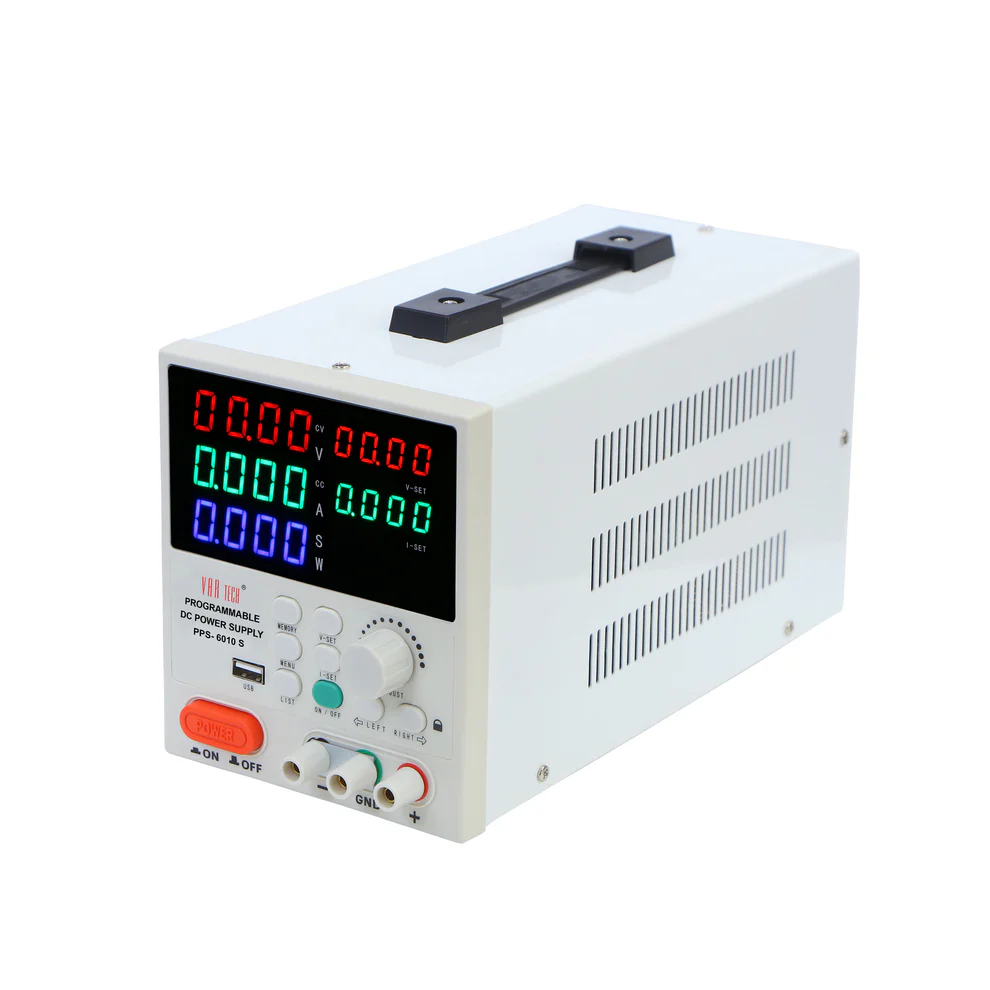

The Vartech PPS-6010 S is a programmable single-output SMPS DC power supply rated 0–60 V / 0–10 A — the highest-current programmable model in the 60 V PPS-S range. Full PPS-S features: five 4-digit LED displays, high-speed rotary dial, panel lock, 6 memories, list mode, output On/Off with delay timer, USB ModBus-RTU interface, and 10 mV / 1 mA display resolution.
Key Features
- Programmable SMPS-based power supply with USB PC interface (ModBus-RTU)
- Five 4-digit multicolour LED displays: V set, I set, V out, I out and Watts
- High resolution: 10 mV / 1 mA
- 6 memory sets — save and recall panel settings
- High-speed rotary dial, Panel Lock, Beeper alarm
- Output ON/OFF function with delay time up to 9999 s
- List mode operation
- OVP, OCP, OTP protections
Technical Specifications
| Output Voltage | 0–60 V |
| Output Current | 0–10 A |
| Type | Programmable SMPS |
| Line & Load Regulation | ≤ 0.2 % FS |
| Ripple & Noise | ≤ 0.5 % FS Vrms |
| Setting & Display Accuracy | ± (0.1 % + 2 digits) at 25 ± 5 °C |
| Display Resolution | 10 mV / 1 mA |
| Power Display Resolution | 0.001 W – 0.01 W – 0.1 W (auto) |
| Display | Five 4-digit LED — V set, I set, V out, I out, Watts |
| PC Interface | USB (ModBus-RTU) |
| Memory | 6 sets |
| Panel Lock | Yes |
| Output ON/OFF | Yes | Delay time: up to 9999 s |
| Protection | OVP, OCP, OTP |
| Power Supply | AC 220 V ±10 %, 50 Hz |
| Dimensions & Weight | 125 × 160 × 260 mm | Approx. 2 kg |
| Accessories | Power cord, Operation manual | USB cable (optional) |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
