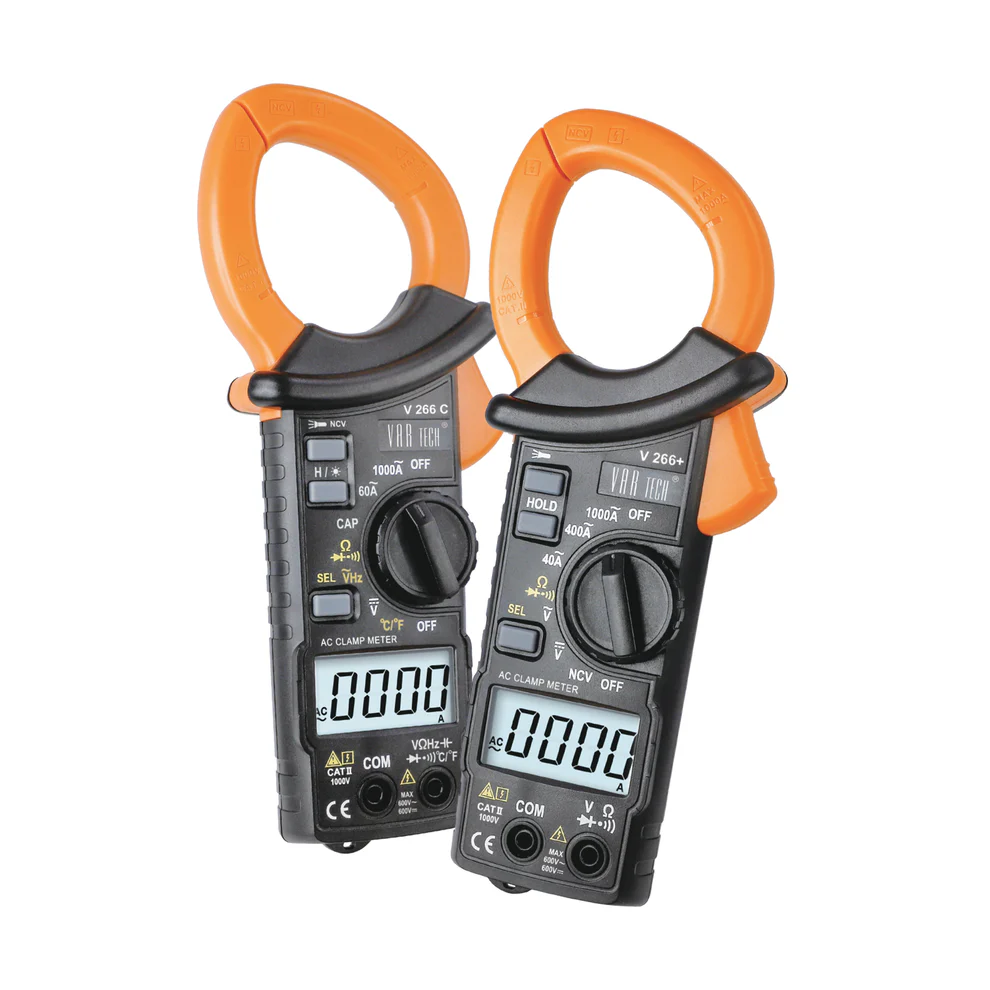

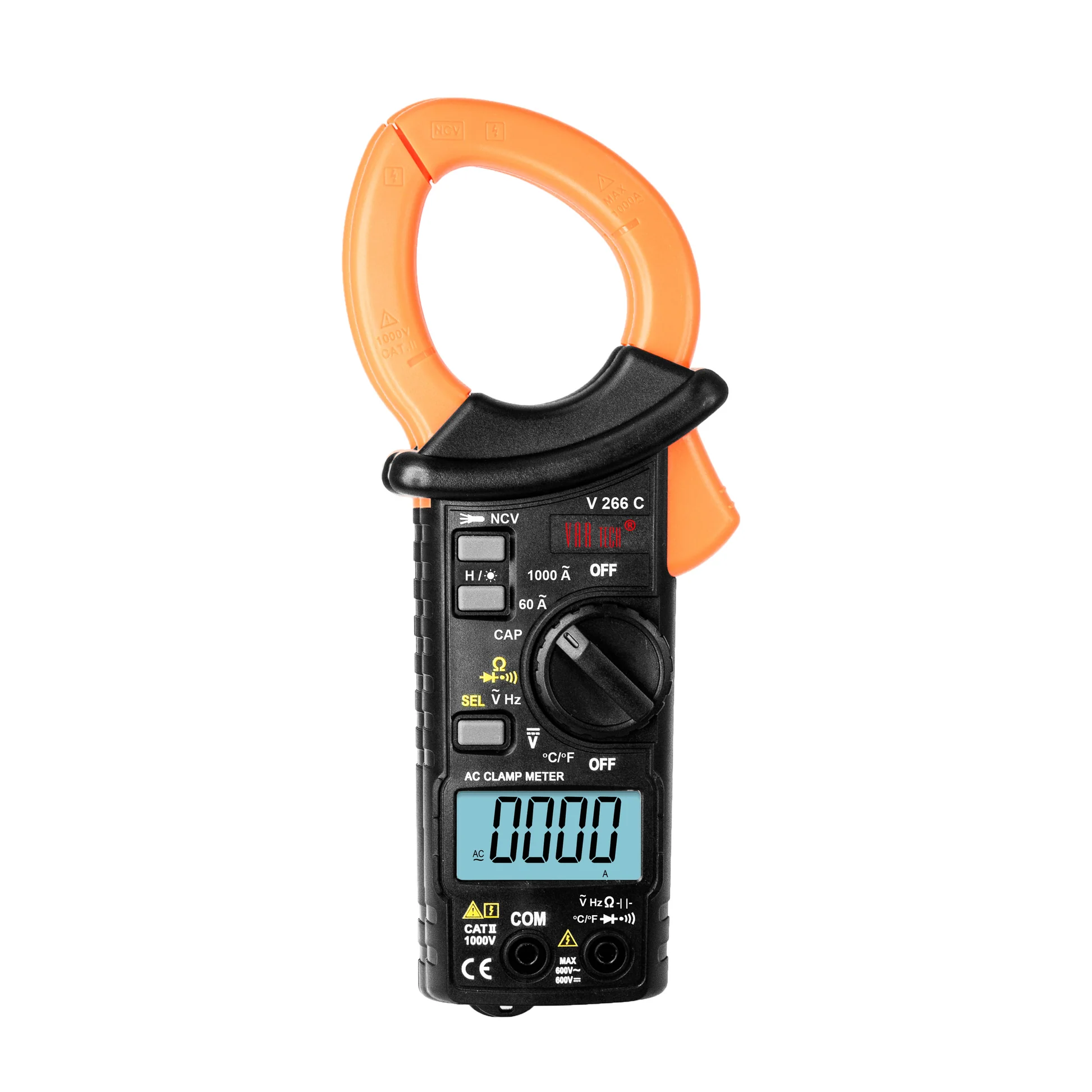

V 266 C Digital Clamp Multimeter with Capacitance Frequency Temperature
6000-count clamp multimeter with capacitance, frequency, temperature measurement and backlit display — the most capable V 266 variant.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument
The Vartech V 266 C is the most feature-complete instrument in the V 266 family — a 6000-count clamp meter that adds capacitance, frequency and temperature measurement to the core current clamp capability, along with a backlit display for working in switchrooms and dark panels. It is the ideal choice for electrical engineers and HVAC technicians who need a single, portable clamp meter capable of electrical, component and environmental measurements without carrying a separate multimeter.
Key Features
- 6000-count backlit display — 50% more resolution than the V 266+ with a readable display in switchrooms, dark panels and poorly-lit site conditions
- Capacitance measurement from 60 nF to 60 mF — test motor start and run capacitors, power factor correction capacitors and electrolytic capacitors without a separate instrument
- Frequency measurement in the ACV range (10 Hz – 1 KHz) — verify supply frequency and detect anomalies directly at panel terminals
- Temperature measurement with probe included — combines electrical and thermal diagnostics in one meter; no need to carry a separate temperature probe
- AC current from 60 A to 1000 A — the lower 60 A range resolves branch circuit and small motor currents with much better accuracy than a 400 A range
- NCV detection, torch and backlight — safe working on live systems, illuminated display and conductor identification all in one instrument
- Superior quality — ISO 9001 certified manufacturing
Technical Specifications
| Display | 3⅚ Digits, 6000 Counts, Backlight |
| Ranging | Manual |
| DC Voltage | 60 mV / 600 mV / 6 V / 60 V / 600 V | Accuracy: ±(0.8% rdg + 2 digits) |
| AC Voltage | 600 mV / 6 V / 60 V / 600 V | Accuracy: ±(1% rdg + 10 digits) |
| AC Current | 60 A / 400 A / 1000 A | Accuracy: ±(2.5% rdg + 10 digits) |
| Resistance | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 60 MΩ | Accuracy: ±(1.2% rdg + 2 digits) |
| Capacitance | 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF |
| Frequency | 10 Hz – 1 KHz (measured in ACV range) |
| Temperature | Provided (probe included) |
| Other Functions | NCV Test, Diode Test, Continuity Test, Torch, Backlight, Data Hold, Low Battery Indication |
| Power | 2 × 1.5 V AAA batteries (optional) |
| Accessories | Test leads, carrying pouch, user manual, battery, temperature probe |
| Dimensions & Weight | 222 × 90 × 35 mm | ~220 g (including battery) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
