— Vartech® Clamp Meters

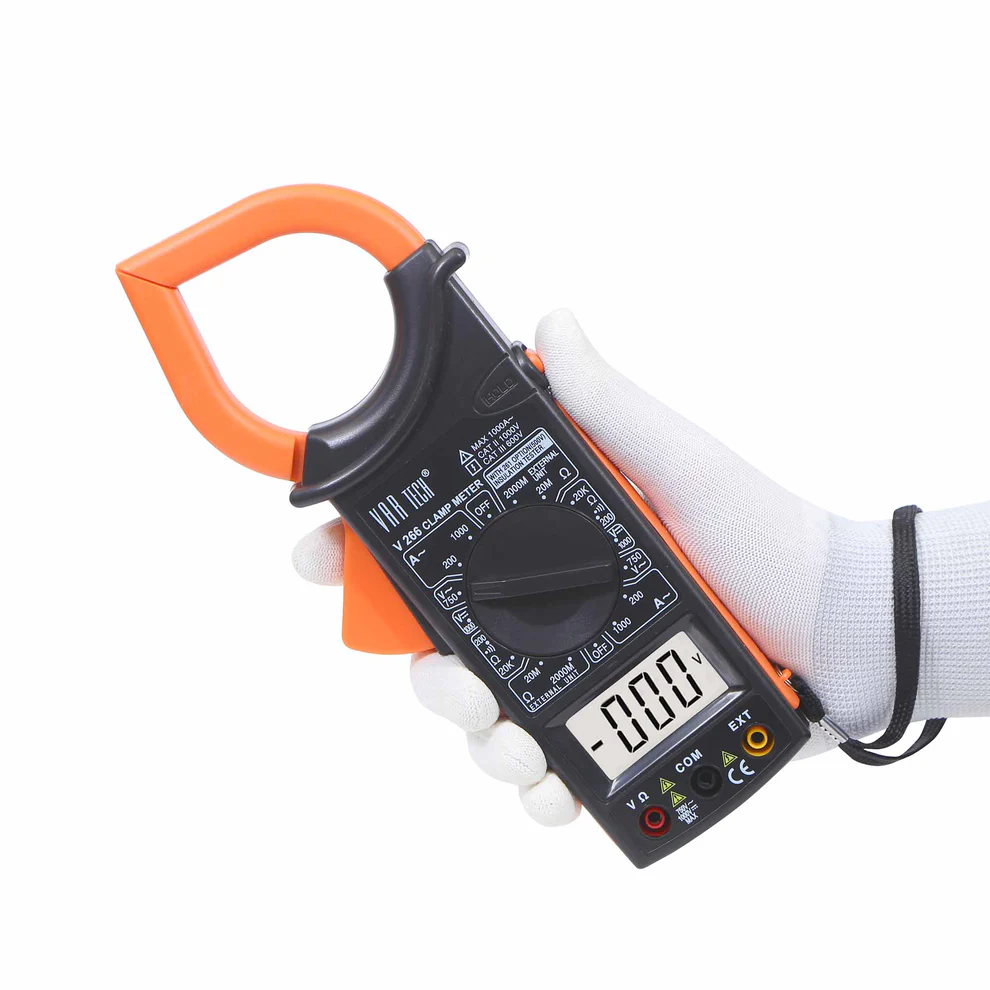

V 266 Digital Clamp Multimeter 1000A AC
India's best-selling digital clamp multimeter — 1000A AC, 1000V DC, 50 mm jaw and optional insulation tester.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument
The Vartech V 266 is India's most popular digital clamp multimeter — a proven workhorse trusted by electricians, electrical contractors and maintenance engineers across the country for its simplicity, reliability and outstanding value. With a 1000 A AC current range, 1000 V DC voltage measurement and a 50 mm jaw that fits standard cable sizes, it covers the core measurements that come up every day on site — without breaking the circuit or shutting down the load. The optional external insulation tester module extends it to 2000 MΩ insulation resistance measurement, making it a two-in-one field instrument.
Key Features
- 1000 A AC clamp current measurement with 50 mm jaw opening — safely measure cable currents up to 1000 A without breaking the circuit or interrupting the load
- Dual current ranges (200 A and 1000 A) — use the 200 A range for motors, lighting and branch circuits for better resolution; switch to 1000 A for panel feeders and mains
- Optional external insulation tester module (20 MΩ to 2000 MΩ) — convert this clamp meter into an insulation tester at will, eliminating the need to carry a separate instrument
- 1000 V DC and 750 V AC voltage measurement — covers the full low-voltage distribution range in a single instrument
- Resistance measurement (200 Ω and 20 KΩ) with audible continuity buzzer — complete tool for electrical fault finding and circuit verification
- Data Hold — freeze the reading on screen so you can record it safely without staying in an awkward position near live conductors
- ISO 9001 certified manufacturing — consistent quality across every unit; simple, robust and built for daily field use
Technical Specifications
| Display | 3½ Digits, 2000 Counts |
| Ranging | Manual |
| Jaw Opening | 50 mm |
| AC Current | 200 A / 1000 A | Accuracy: ±(3% rdg + 5 digits) | ≥800 A: unspecified (reference only) | Freq. response: 50–60 Hz |
| DC Voltage | 1000 V | Accuracy: ±(0.8% rdg + 1 digit) | Input impedance: 9 MΩ |
| AC Voltage | 750 V | Accuracy: ±(1.2% rdg + 4 digits) | Freq. response: 50–400 Hz | Input impedance: 9 MΩ |
| Resistance | 200 Ω | Accuracy: ±(1% rdg + 3 digits) / 20 KΩ | Accuracy: ±(1% rdg + 1 digit) |
| Insulation Resistance (optional ext. unit) | 20 MΩ | ±(2% rdg + 2 digits) / 2000 MΩ | ≤500 MΩ: ±(4% rdg + 2 digits) / ≥500 MΩ: ±(5% rdg + 2 digits) |
| Other Functions | Continuity Test (buzzer <75 Ω), Data Hold |
| Power | 9 V (6F22) |
| Accessories | Test leads, operating manual, carrying case, battery |
| Dimensions & Weight | 230 × 70 × 37 mm | ~310 g (including battery) |
Specifications are sourced from the official Vartech product catalogue. Download the catalogue above for the full datasheet.
