LCM-1 Portable Digital LC Meter
High-precision portable LC meter with wide measurement range - from 1 pF / 1 µH to 100 mF / 100 H in two range modes.
Authorised Distributor - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

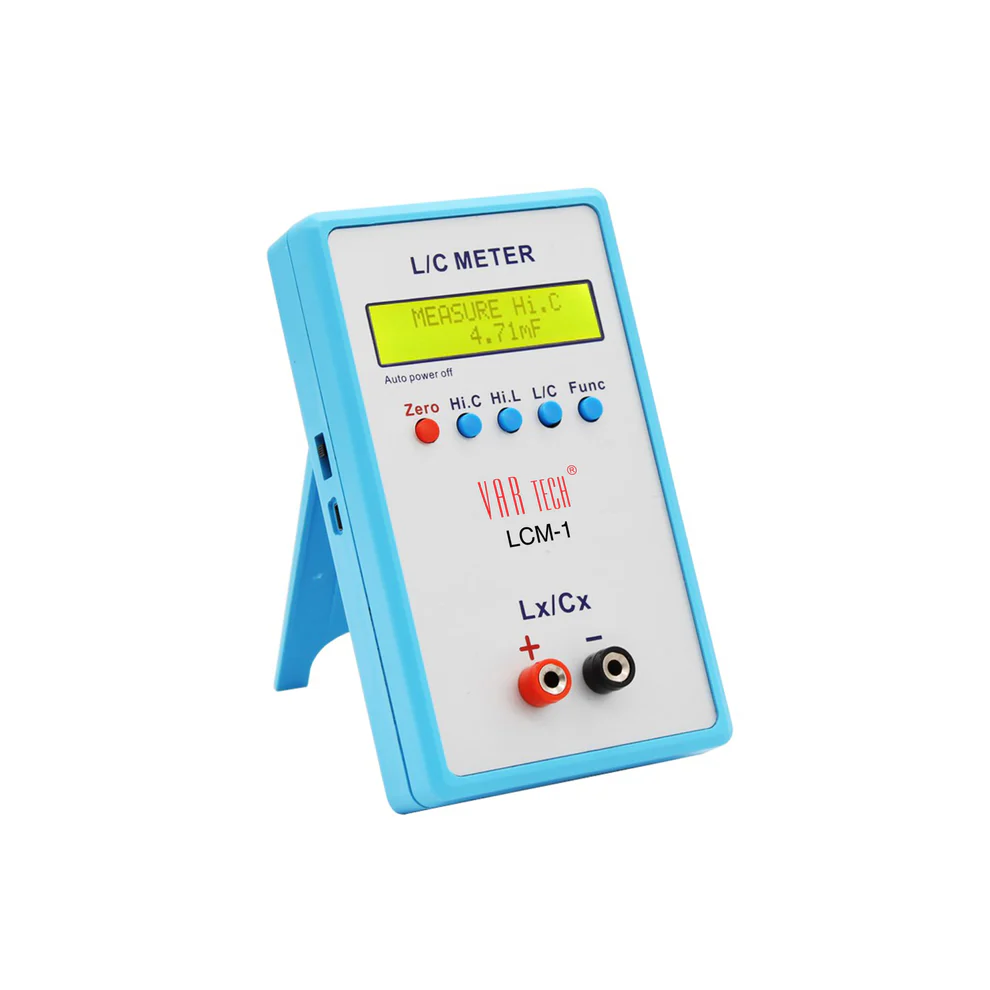

The Vartech LCM-1 is a high-precision portable LC meter with a 4-digit LCD display. It measures inductance and capacitance across a wide range using two modes: Low Range (C: 1 pF to 10 µF, L: 1 µH to 100 mH) at a 500 kHz test frequency, and High Range (C: 1 µF to 100 mF, L: 100 mH to 100 H) at 500 Hz to 50 kHz. A dedicated Zero button nulls out test-lead and fixture offset before measurement, while the Hi.C / Hi.L / L-C mode keys let you switch ranges with a single press - the meter also auto powers-off to save battery when idle. It ships with a pair of alligator-clip test leads plus an SMD/through-hole tweezer probe, so both leaded and surface-mount components can be measured directly without extra accessories. Ideal for incoming component inspection, component sorting, resonant circuit design and general electronics lab work.
Key Features
- Low Range - Capacitance: 1 pF ~ 10 µF; Inductance: 1 µH ~ 100 mH; Test frequency: 500 kHz
- High Range - Capacitance: 1 µF ~ 100 mF; Inductance: 100 mH ~ 100 H; Test frequency: 500 Hz ~ 50 kHz
- 4-digit LCD display - high-resolution readout in both modes
- Zero (null) button - cancels test-lead and fixture offset before measuring
- One-touch Hi.C / Hi.L / L-C mode keys for fast range selection
- Auto power-off - conserves battery during idle periods

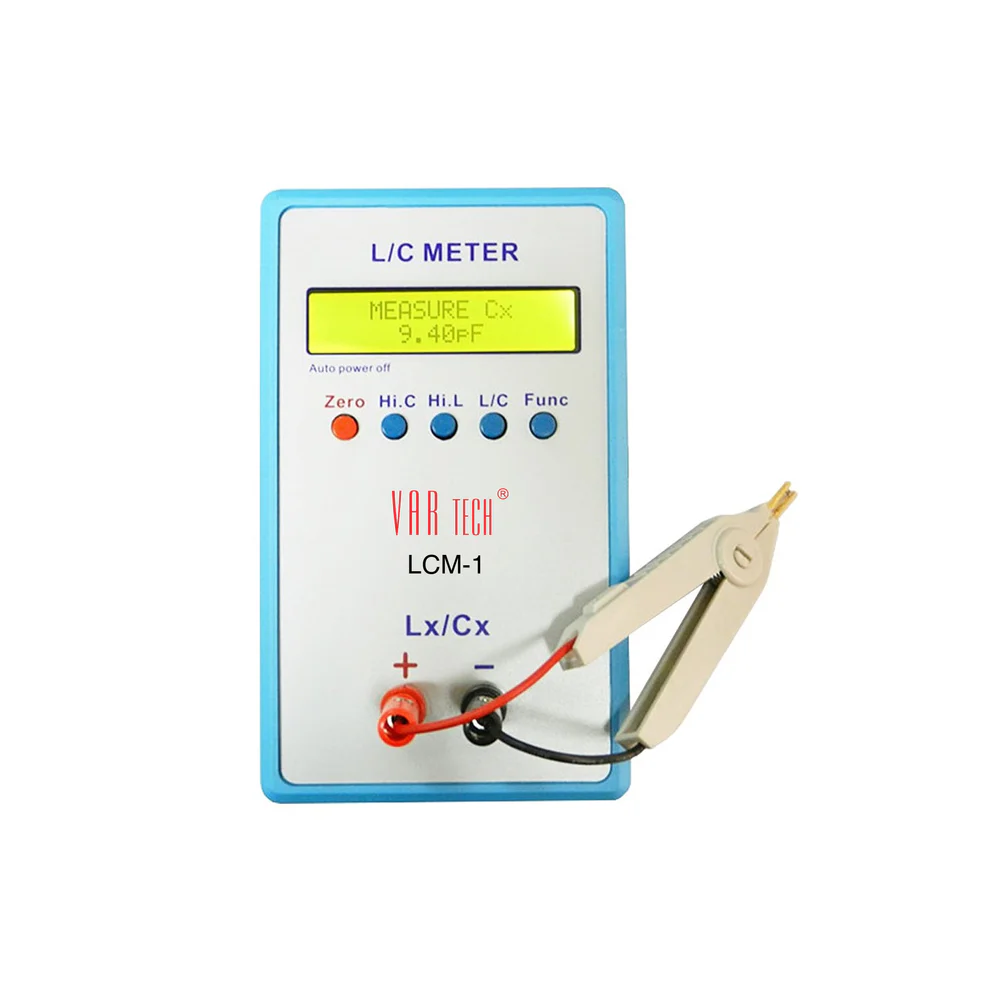

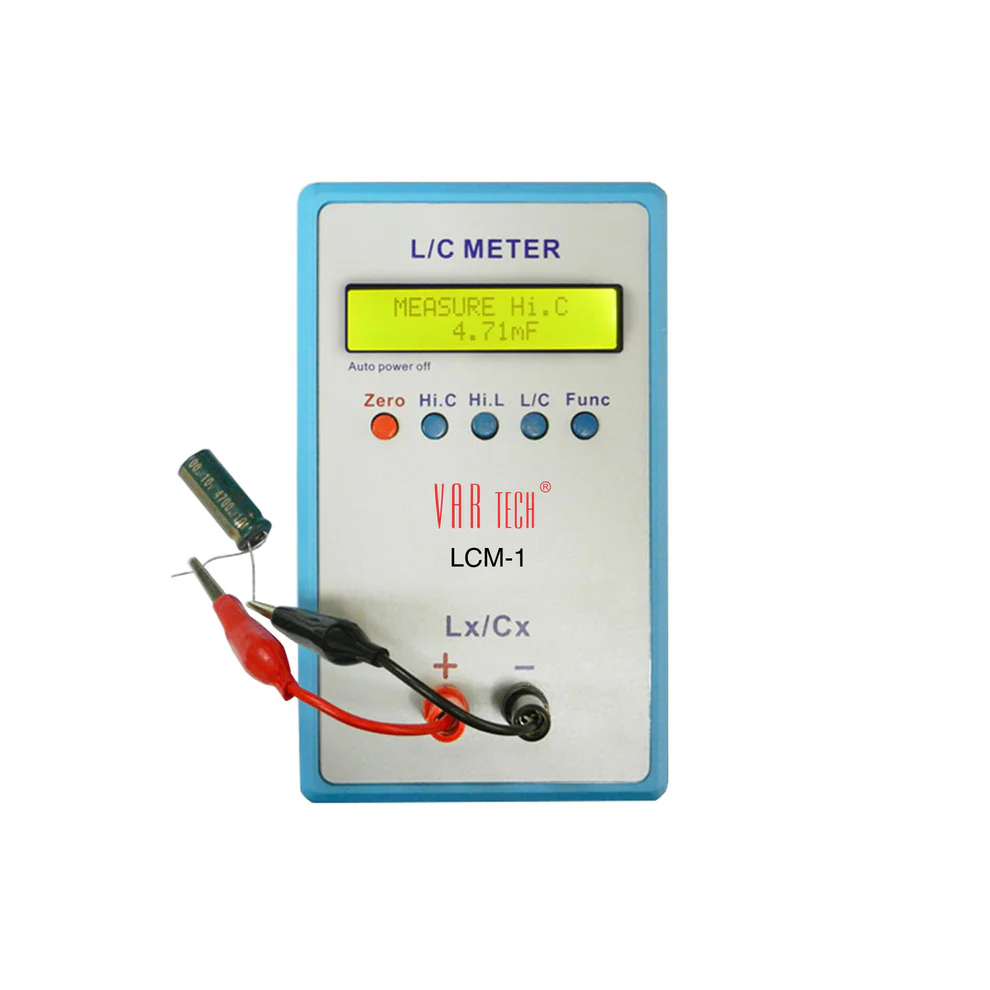

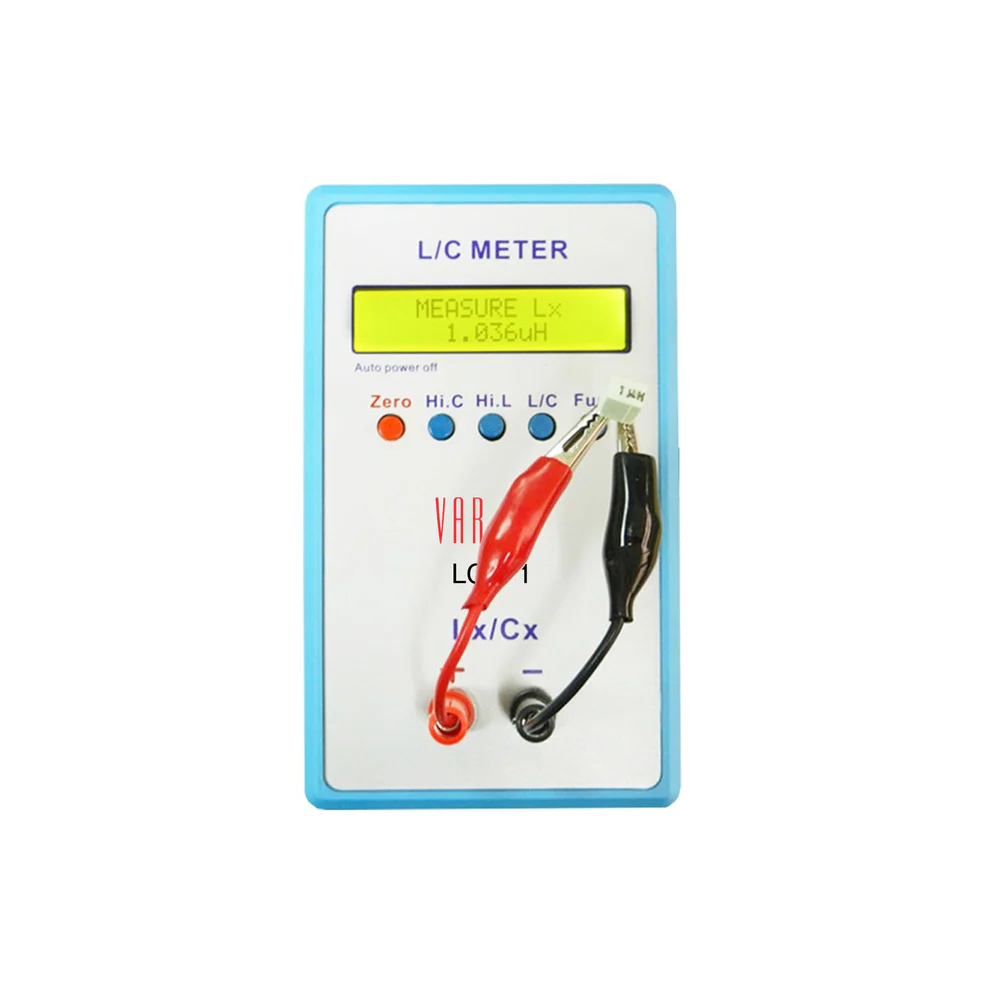

- Supplied with alligator-clip test leads and an SMD/through-hole tweezer probe
- Portable and compact - fits easily in a toolkit or component drawer
- High precision - suitable for component sorting and resonant circuit design
Technical Specifications
| Display | 4-Digit LCD |
| Capacitance - Low Range | 1 pF ~ 10 µF |
| Inductance - Low Range | 1 µH ~ 100 mH |
| Test Frequency - L & C Low Range | 500 kHz |
| Capacitance - High Range | 1 µF ~ 100 mF |
| Inductance - High Range | 100 mH ~ 100 H |
| Test Frequency - High L Range | 500 Hz ~ 50 kHz |
| Zero / Null Adjustment | Yes - dedicated Zero button |
| Mode Selection | Hi.C / Hi.L / L-C one-touch keys |
| Power Saving | Auto power-off |
| Included Accessories | Alligator-clip test leads + SMD/through-hole tweezer probe |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
