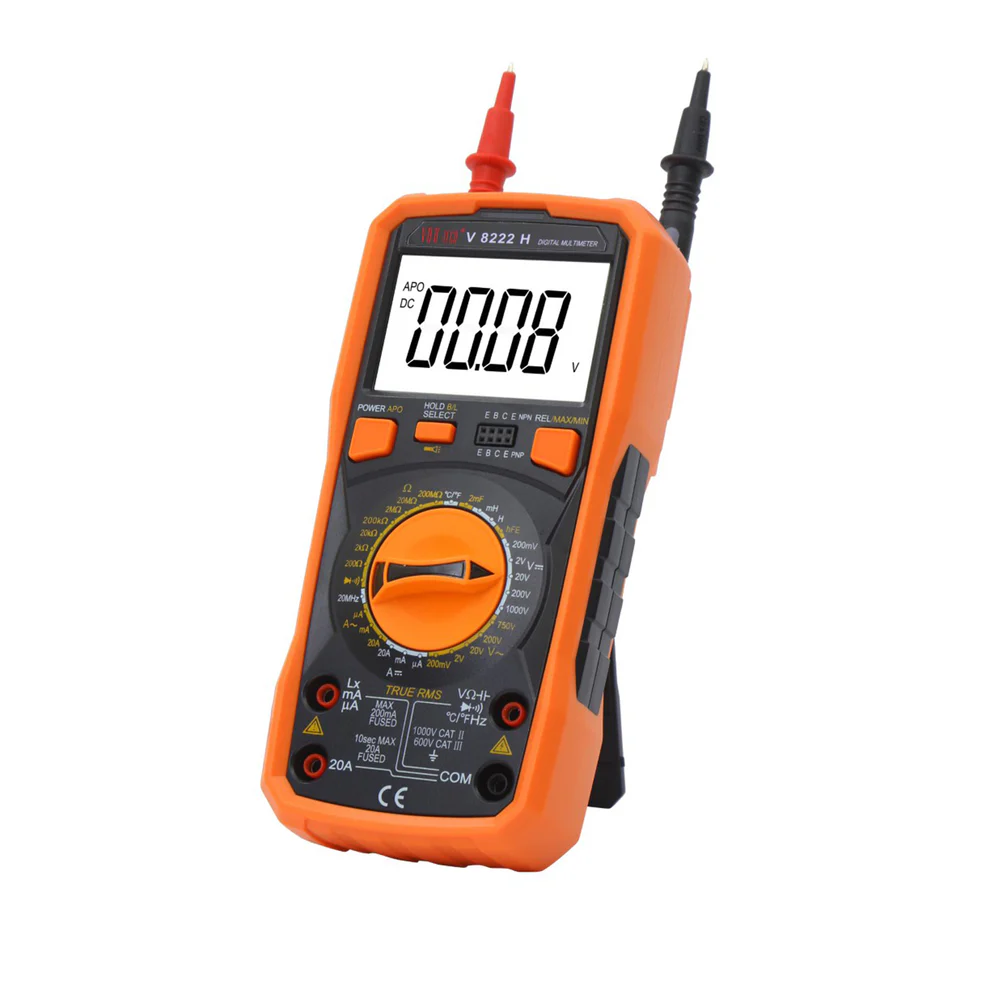

V 8222 H LCR Digital Multimeter — True RMS, 1000 V DC / 750 V AC, 20 A
3½-digit True RMS handheld LCR multimeter — inductance, capacitance, resistance, frequency, temperature and full multimeter in one instrument.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

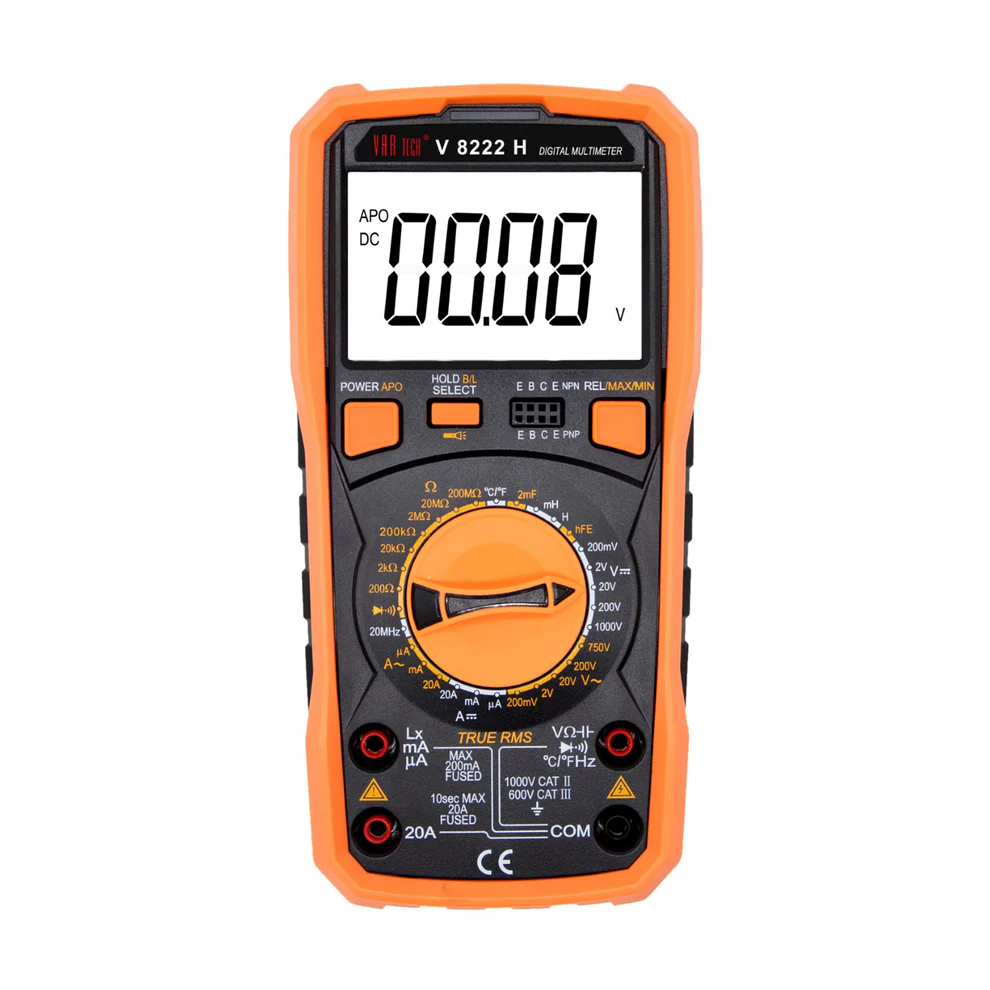

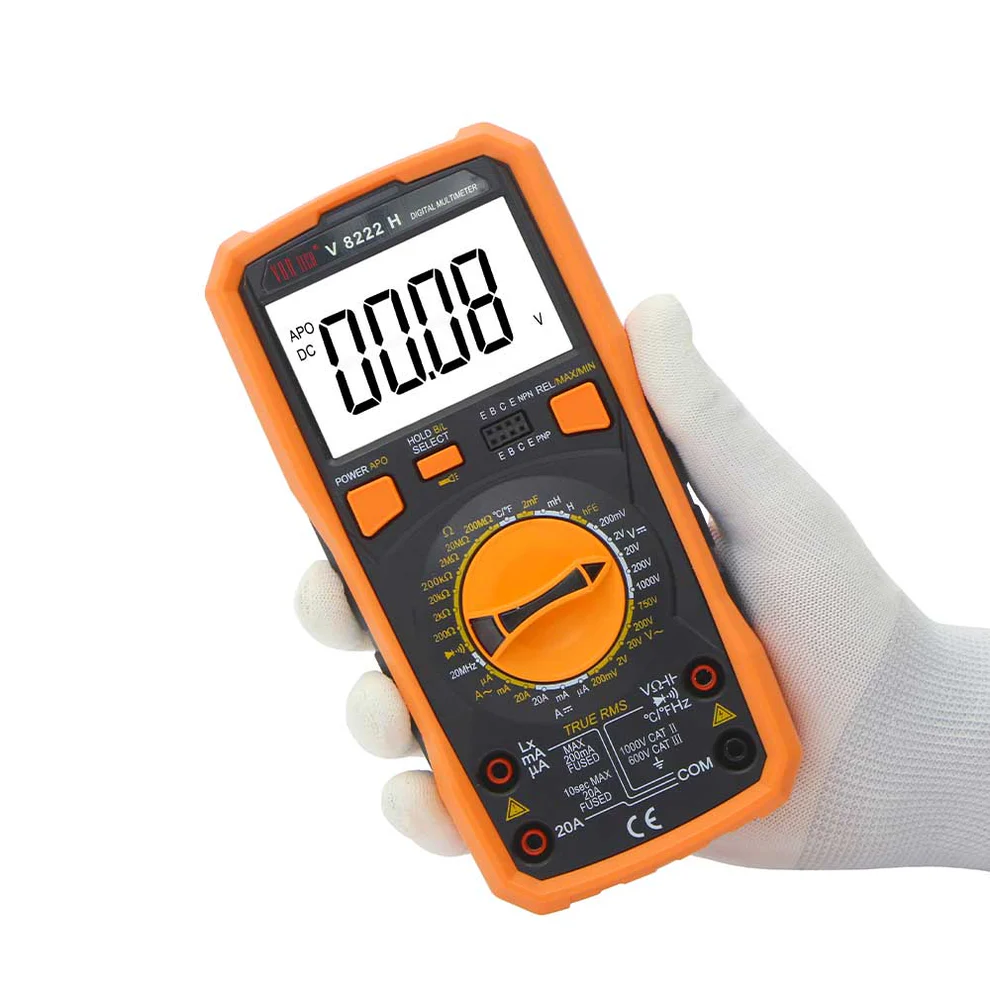

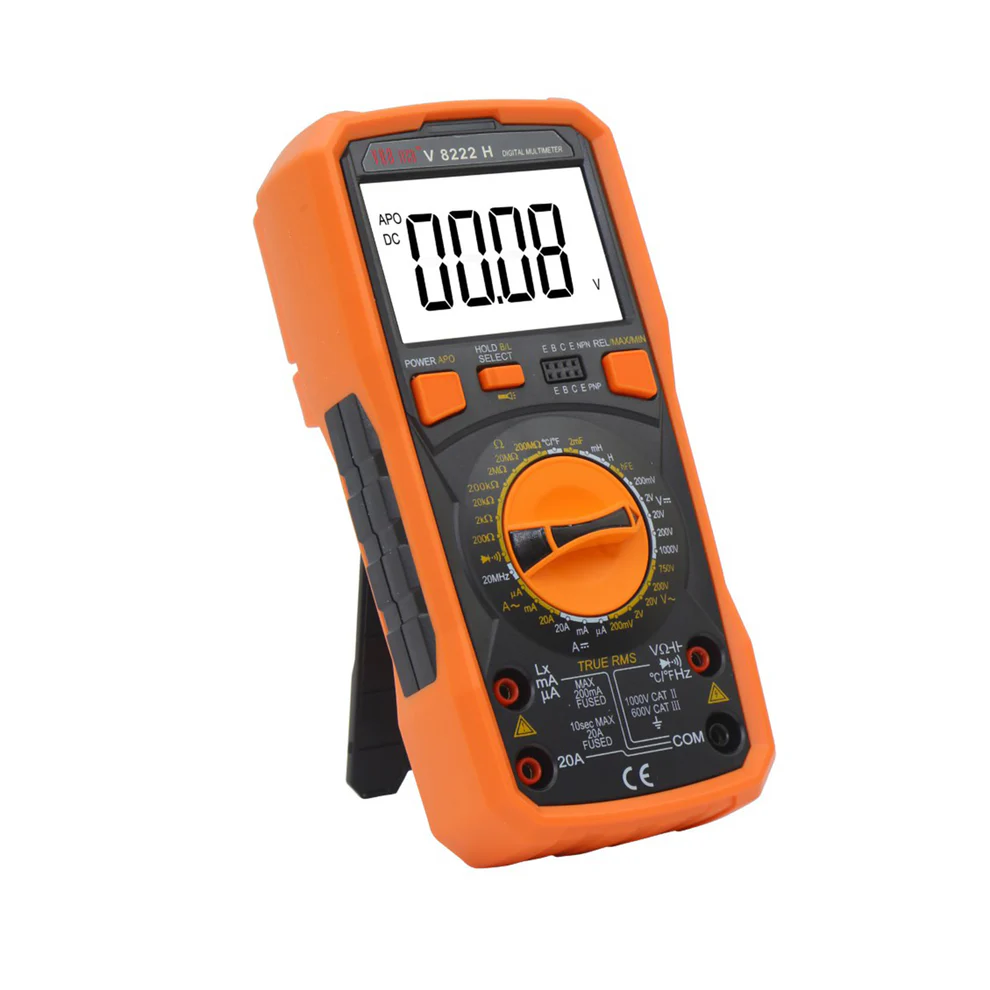

The Vartech V 8222 H is a 3½-digit True RMS handheld digital multimeter with built-in LCR measurement capability. It measures DC and AC voltage up to 1000 V / 750 V, DC and AC current up to 20 A, resistance up to 200 MΩ, capacitance (20 nF to 2 mF, auto-ranging), inductance (2 mH to 20 H in two auto ranges), frequency and duty cycle up to 20 MHz (7 auto ranges), and temperature (−20 °C to 1000 °C). All accuracies are as listed in the official Vartech catalogue.
Key Features
- Inductance — 2 mH to 20 H in 2 auto ranges | Accuracy: ±(2.5% rdg + 30 digits)
- Capacitance — 20 nF to 2 mF, 6 auto ranges | Accuracy: ±(3.5% rdg + 20 digits)
- True RMS — accurate on non-sinusoidal waveforms from VFDs and inverters
- 1000 V DC / 750 V AC and 20 A DC/AC full multimeter capability
- Frequency & duty cycle — 10 Hz to 20 MHz (7 auto ranges)
- Temperature −20 °C to 1000 °C with probe, transistor (hFE), continuity, diode test

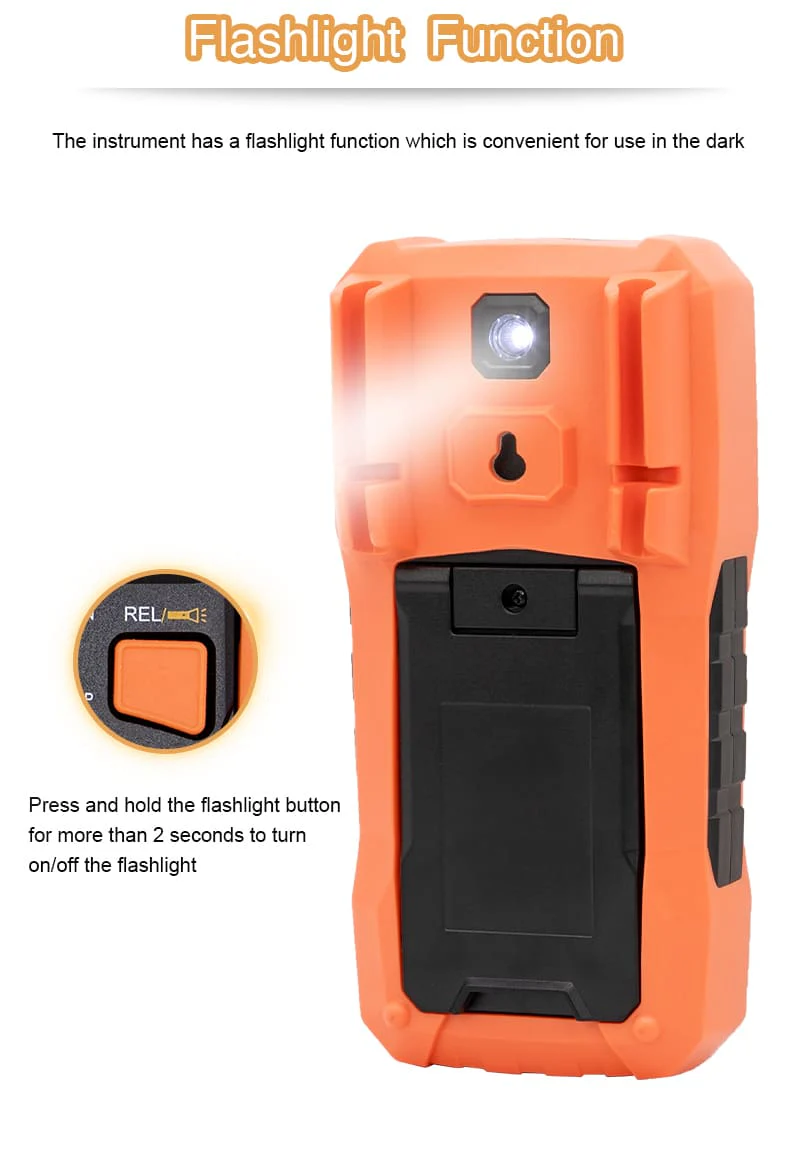

- Backlight, torch, data hold, REL, min/max, auto power off
Technical Specifications

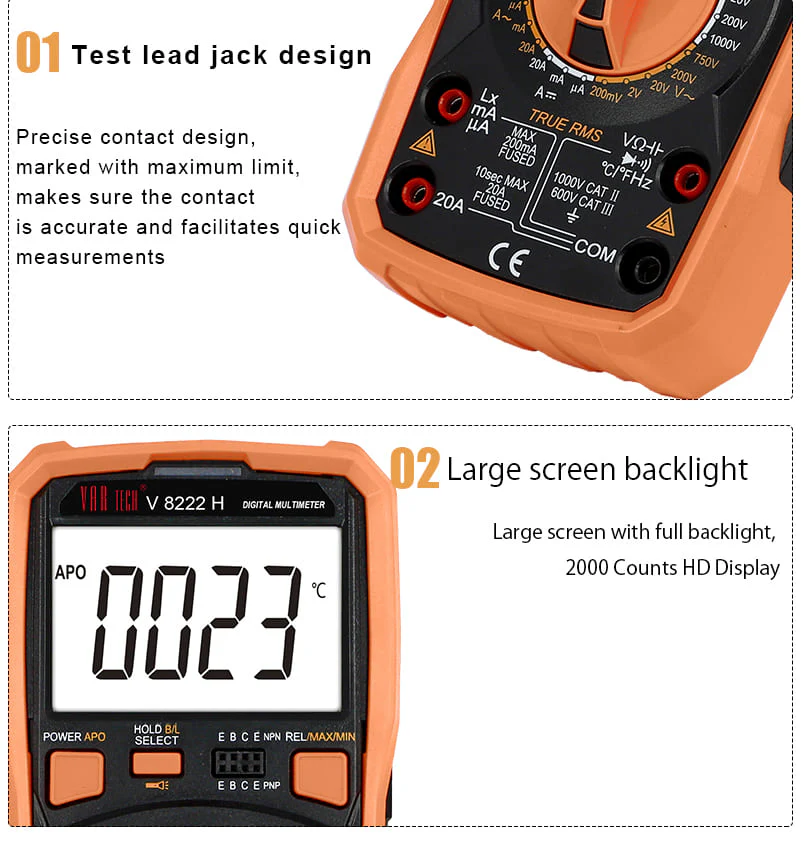

| Display | 3½ Digits, 2000 Counts, with Backlight |
| True RMS | Yes |
| Ranging | Manual (Inductance, Capacitance, Frequency: Auto) |
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V | Accuracy: ±(0.5% rdg + 3 digits) |
| AC Voltage (True RMS) | 200 mV / 2 V / 20 V / 200 V / 750 V | Accuracy: ±(0.8% rdg + 5 digits) | Freq. response: 40 Hz ~ 1 kHz |
| DC Current | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.2% rdg + 8 digits) |
| AC Current (True RMS) | 200 µA / 2 mA / 20 mA / 200 mA / 20 A | Accuracy: ±(1.5% rdg + 15 digits) | Freq. response: 40 Hz ~ 1 kHz |

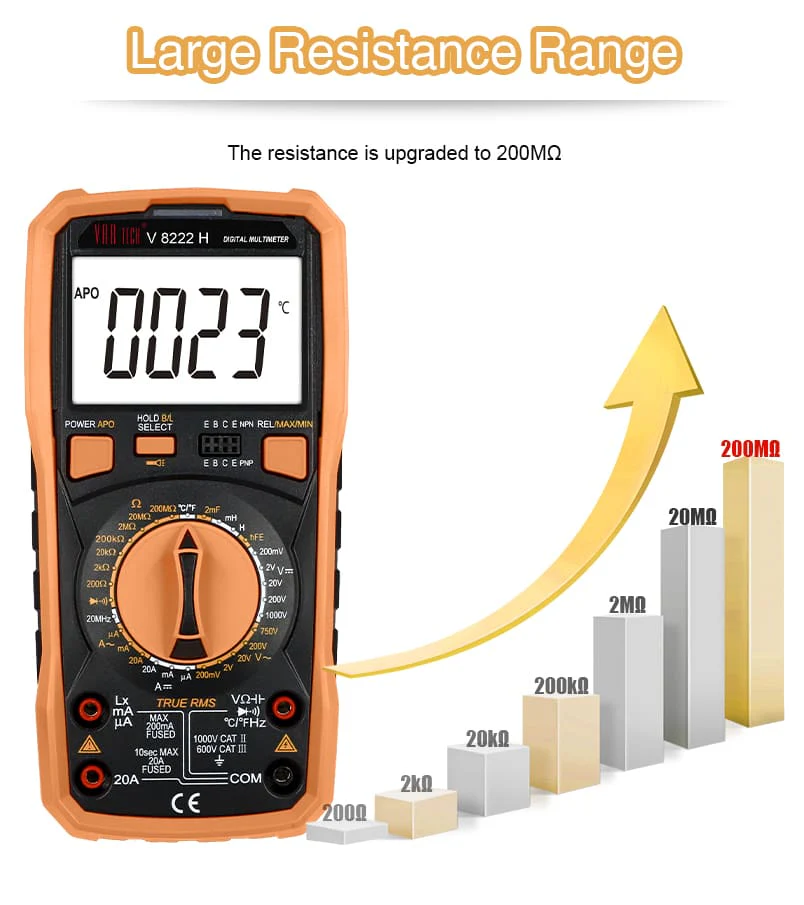

| Resistance | 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ / 200 MΩ | Accuracy: ±(0.8% rdg + 3 digits) |
| Capacitance (Auto) | 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF | Accuracy: ±(3.5% rdg + 20 digits) |
| Inductance (Auto) | 2 mH / 20 mH / 200 mH / 2 H / 20 H (in 2 auto ranges) | Accuracy: ±(2.5% rdg + 30 digits) |
| Frequency & Duty Cycle | 10 Hz ~ 20 MHz (7 auto ranges) | Accuracy: ±(1% rdg + 10 digits) |
| Temperature | −20 °C ~ +1000 °C (−4 °F ~ 1832 °F) |
| Other Functions | Torch, A/V Continuity, Diode Test, Transistor (hFE) Test, Auto Power Off, Backlight, Data Hold, REL Measurement, Min/Max, Low Battery Indicator |

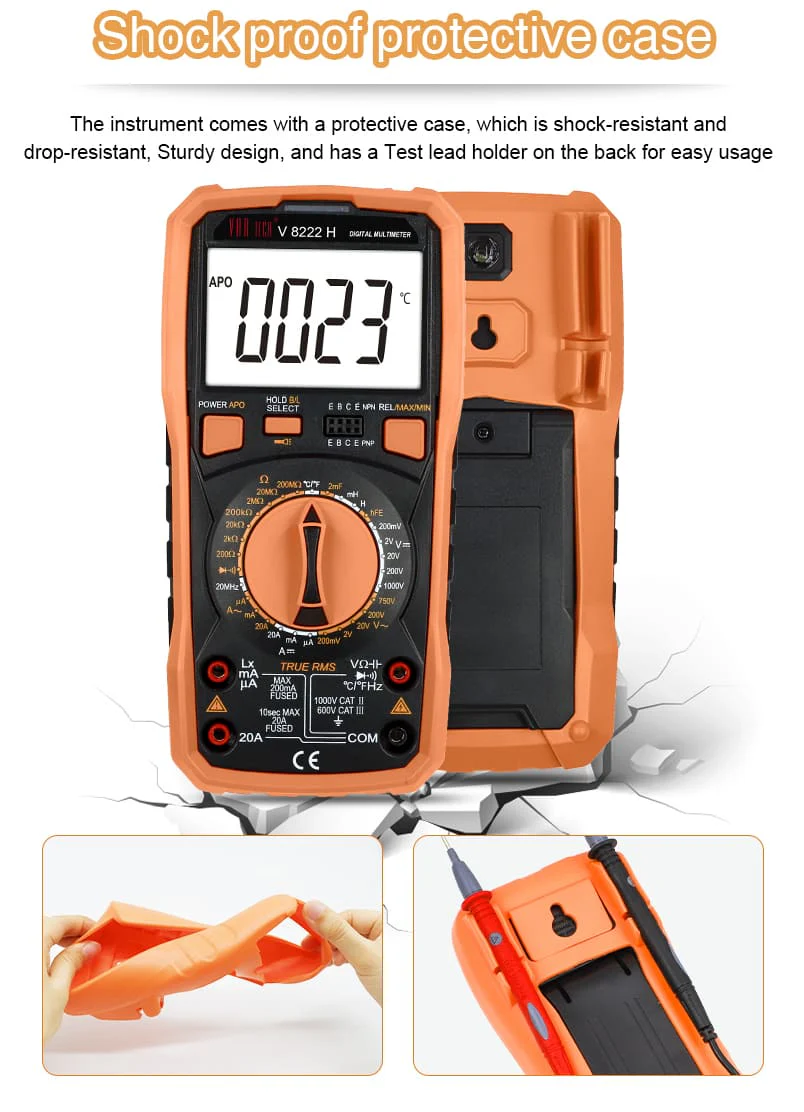

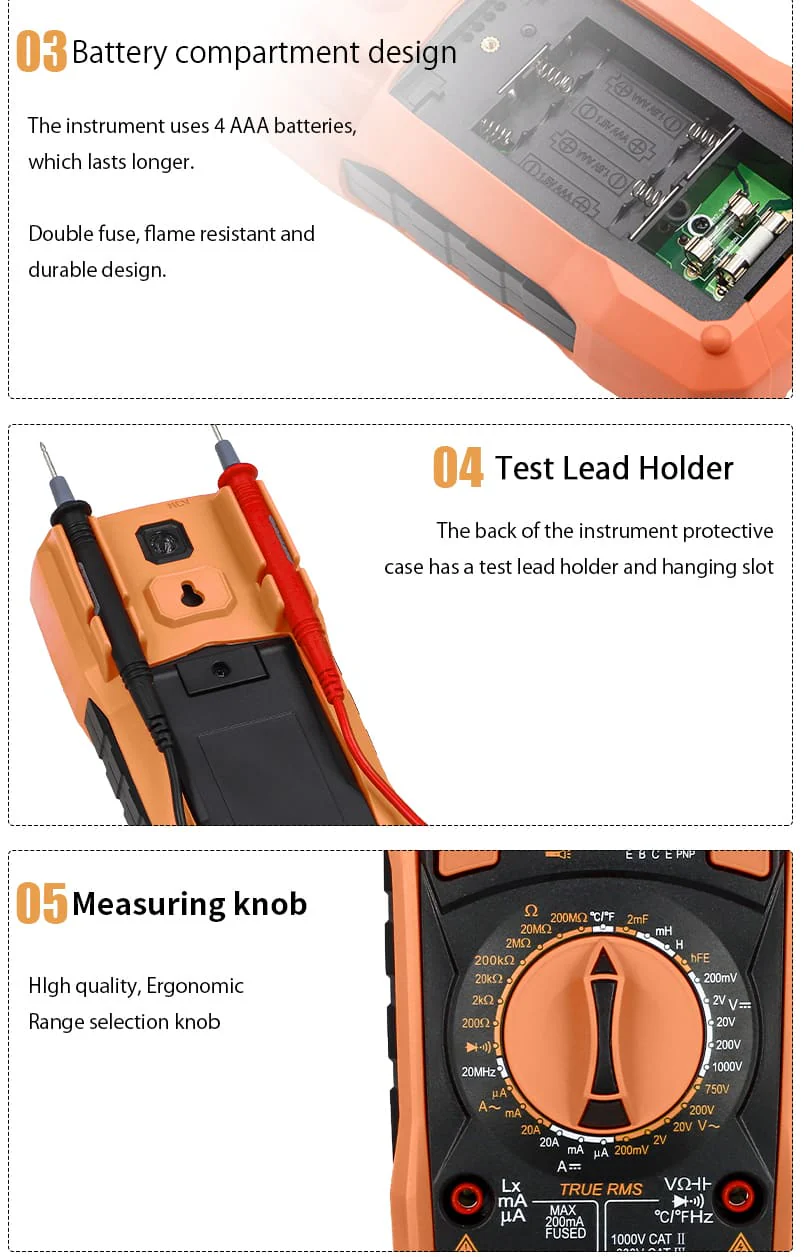

| Accessories | Holster (installed), test leads, user manual, 4×AAA batteries, temperature probe |
| Dimensions & Weight | 186 × 92 × 52 mm | Approx. 400 g (with battery & holster) |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
