LCR-1B Bench Top LCR Meter — 10 Hz to 10 kHz Continuously Variable
5-digit bench LCR meter with continuously variable 10 Hz to 10 kHz test frequency, 0.1% basic accuracy, auto component identification and USB/RS232.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

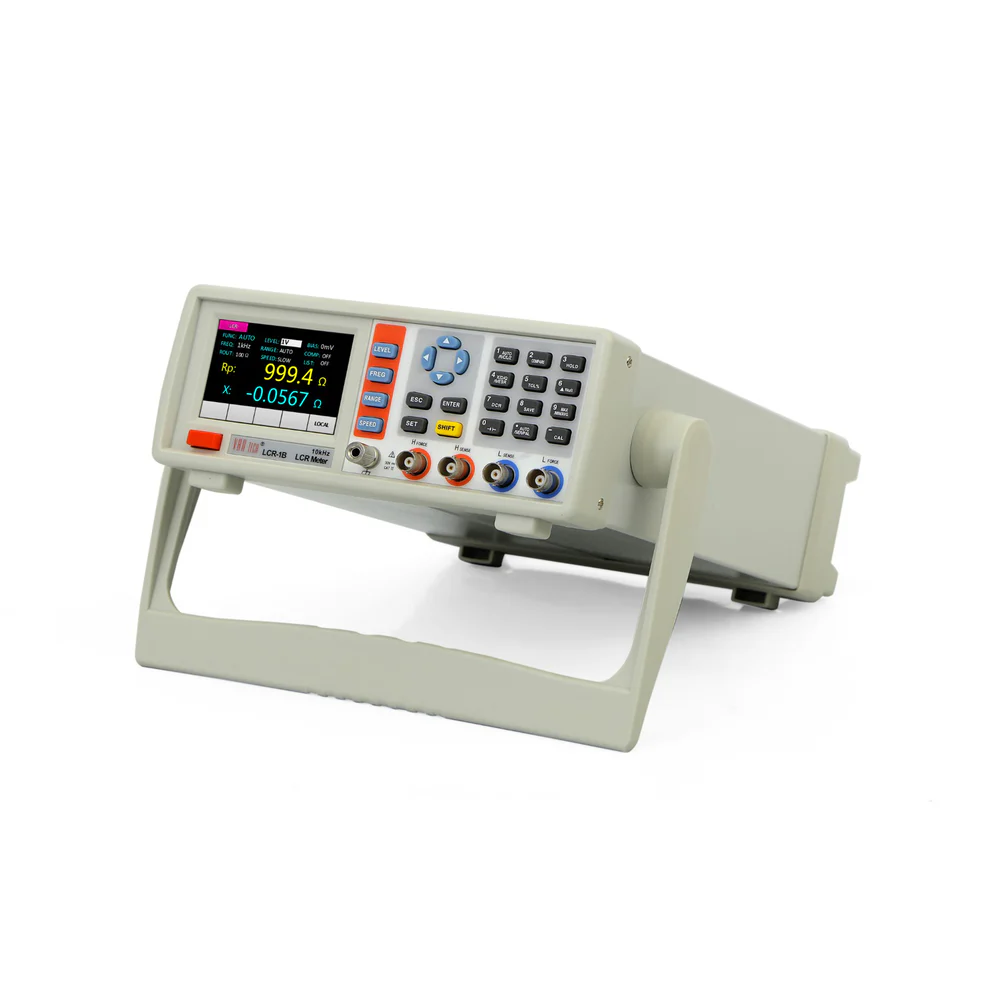

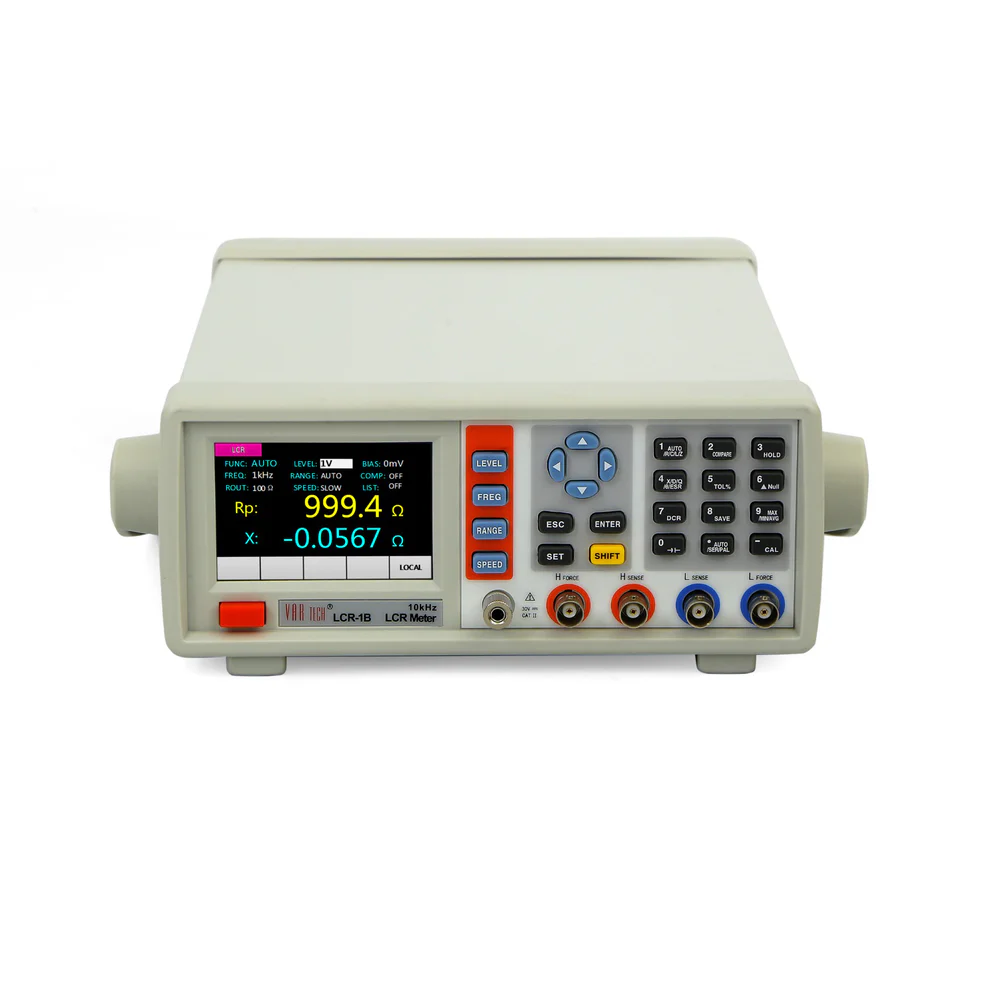

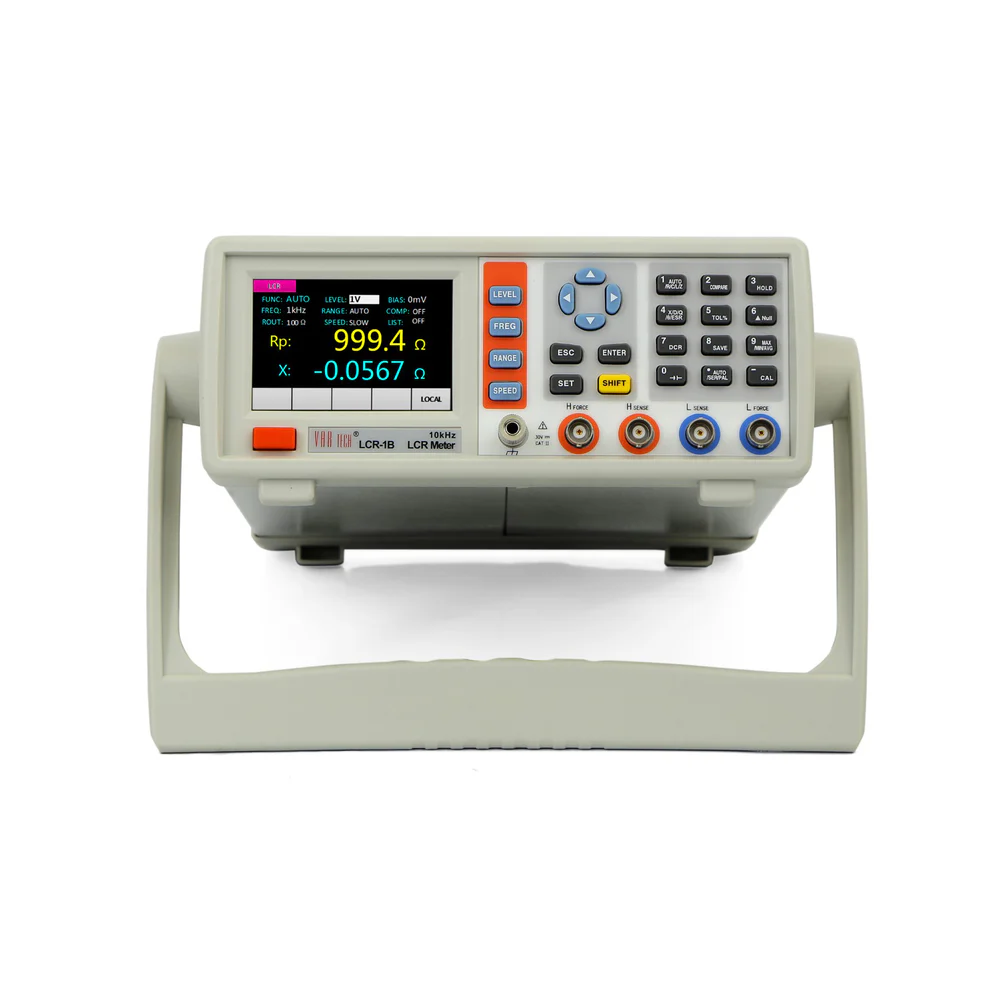

The Vartech LCR-1B is a bench-top LCR meter with a 5-digit 3.5-inch colour LCD display (primary and secondary), mains operation and 0.1% basic accuracy. It measures L, C, R, Z, X, D, Q, θ and ESR with automatic identification of the component type. The test frequency is continuously variable from 10 Hz to 10 kHz in 1 Hz steps — allowing measurement at any standard or custom frequency. Fast measurement speed is 10 times per second. Internal bias is adjustable 0 to 1500 mV; test level (Vrms) is adjustable 100 to 2000 mV. Open/short correction, five-terminal measurement, 5-gear comparator sorting, handler, RS232 and USB interface (optional).
Key Features
- Test parameters: L / C / R / Z / X / D / Q / θ / ESR | Basic accuracy: 0.1%
- 10 Hz ~ 10 kHz continuously variable test frequency in 1 Hz steps
- Automatic identification of component type
- 5-digit display — primary and secondary; 3.5" colour LCD
- Fast measurement: 10 times/second (Medium: 5; Slow: 2)
- Internal bias 0 ~ 1500 mV (1 mV steps); test level 100 ~ 2000 mV (1 mV steps)
- Open/short correction; five measurement terminals; 5-gear comparator sorting
- Handler, RS232 & USB interface (optional); supports SCPI and LabVIEW
Technical Specifications
| Test Parameters | L / C / R / Z / X / D / Q / θ / ESR |
| Basic Accuracy | 0.1% |
| Test Frequency | 10 Hz ~ 10 kHz (continuously variable in 1 Hz steps) |
| Inductance Range | 2 µH ~ 9999 H |
| Capacitance Range | 2 pF ~ 9999 µF |
| Resistance Range | 2 Ω ~ 99.99 MΩ |
| Display | 5 Digits, 3.5" Colour LCD (Primary & Secondary) |
| Measurement Speed | Fast: 10 / Medium: 5 / Slow: 2 (times per second) |
| Internal Bias | 0 ~ 1500 mV (adjustable in 1 mV steps) |
| Test Level (Vrms) | 100 ~ 2000 mV (continuously adjustable in 1 mV steps) |
| Correction | Open / Short |
| Measurement Terminals | Five Terminals |
| Comparator | 5-gear sorting: 3 qualified, 1 failed, 1 ancillary |

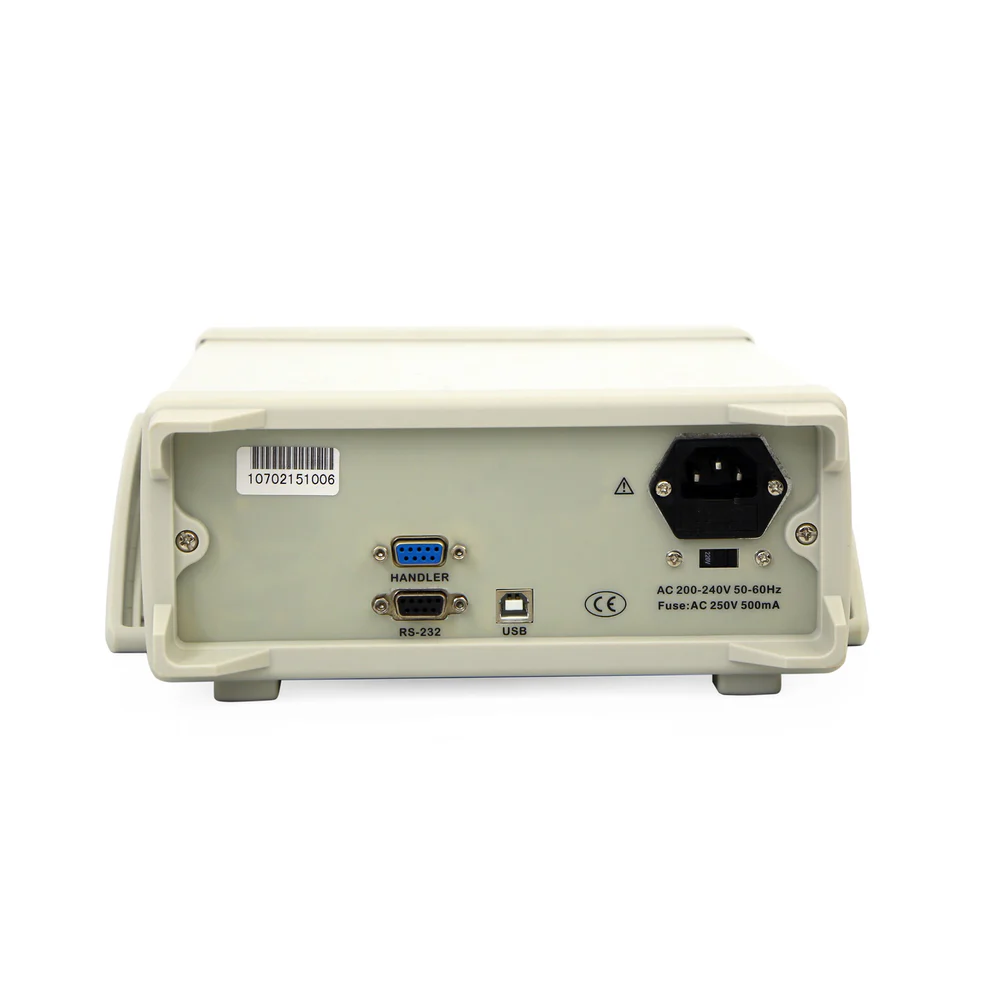

| Interface (Optional) | Handler, RS232 & USB; supports SCPI protocol & LabVIEW |
| Power Supply | 220 V AC ±10%, 50 Hz ±5%, ≤10 W |
| Environment | 0 ~ 40 °C; R.H. <80% |
| Accessories | User's manual, mains cord, 4-terminal Kelvin test leads |
| Dimensions & Weight | 265 (W) × 105 (H) × 305 (D) mm | Approx. 2.3 Kg |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
