LCR-2A Bench Top LCR Meter — 100 Hz to 10 kHz in 10 Steps
5-digit bench LCR meter with 10 fixed test frequencies from 100 Hz to 10 kHz, wider measurement range than LCR-1B and USB/RS232 interface.
Authorised Dealer - Genuine Vartech product
- Expert technical support
- Pan-India delivery
- Competitive pricing
About This Instrument

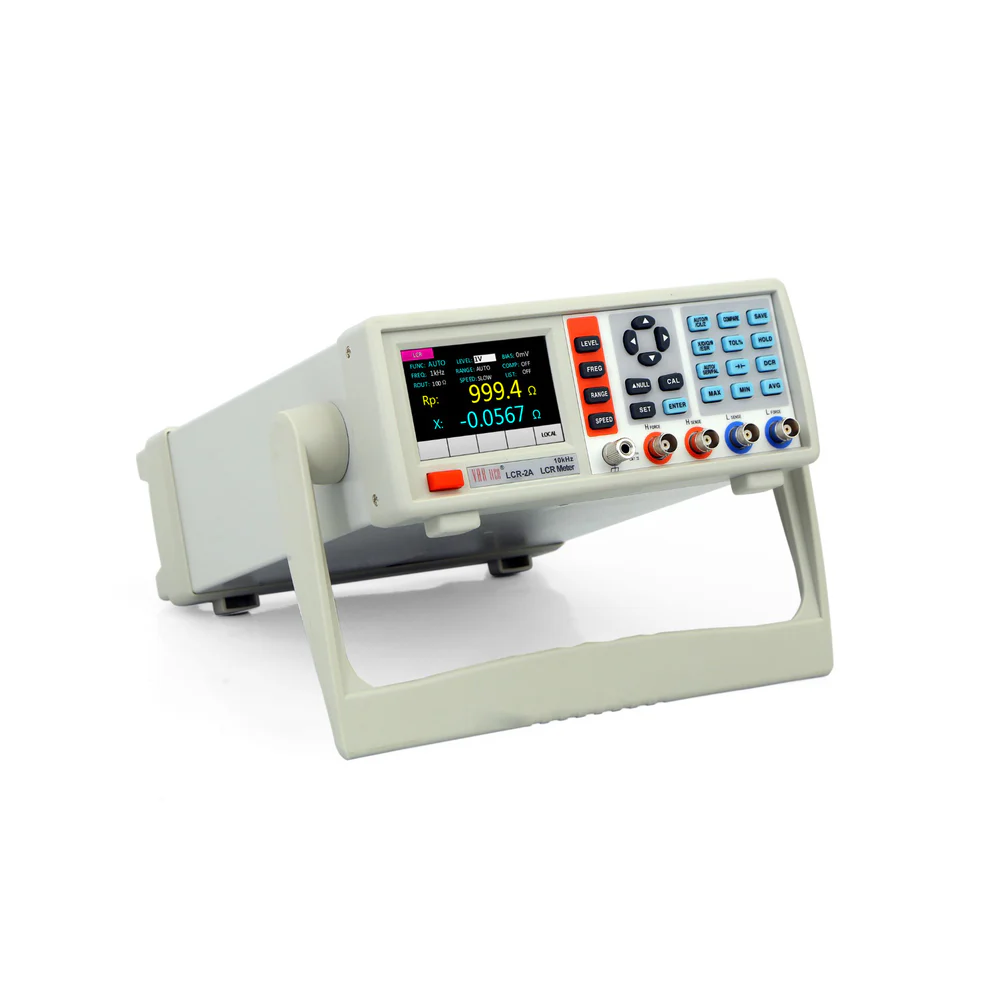

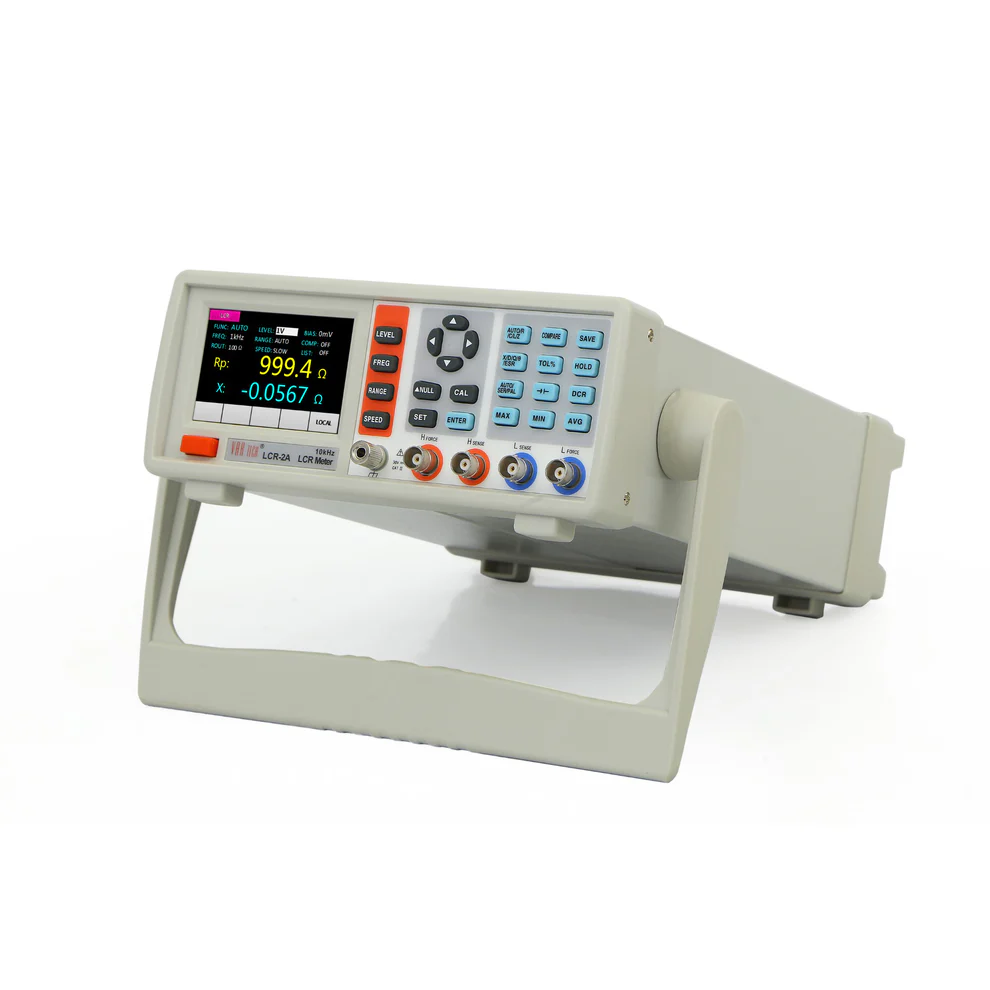

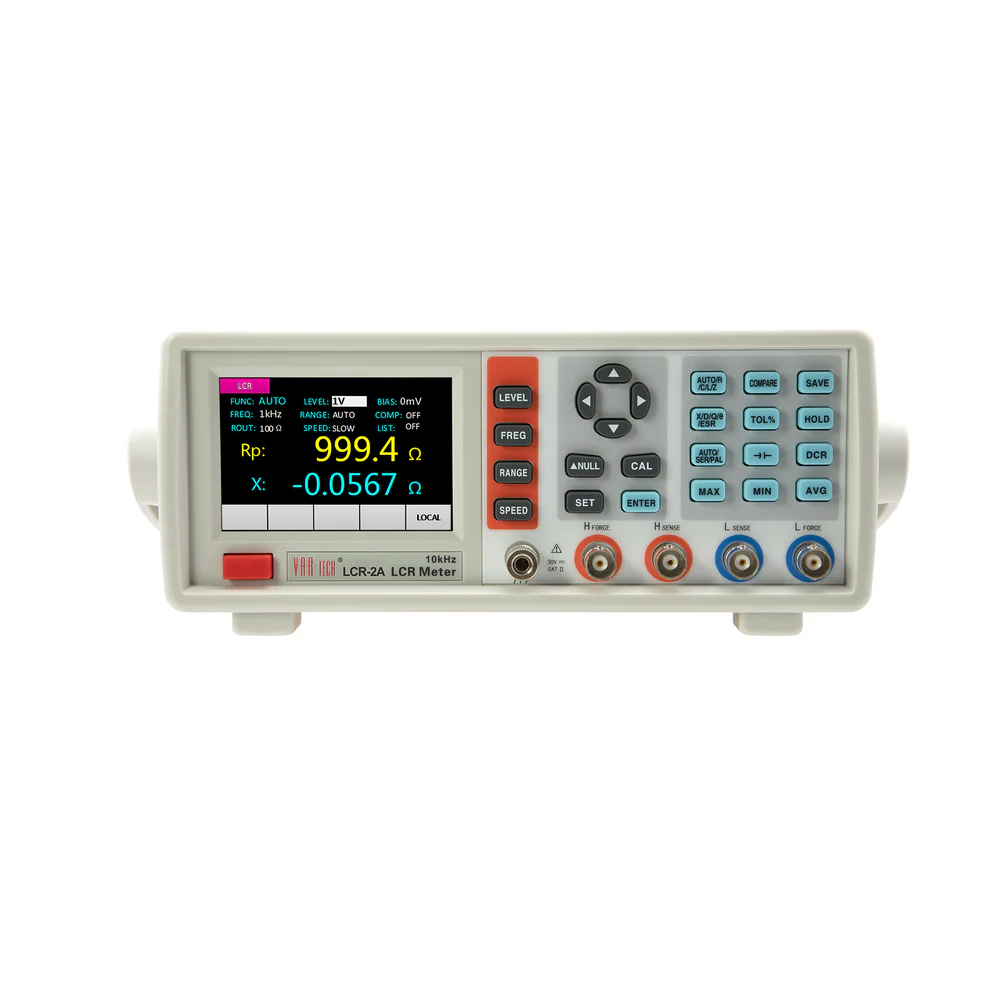

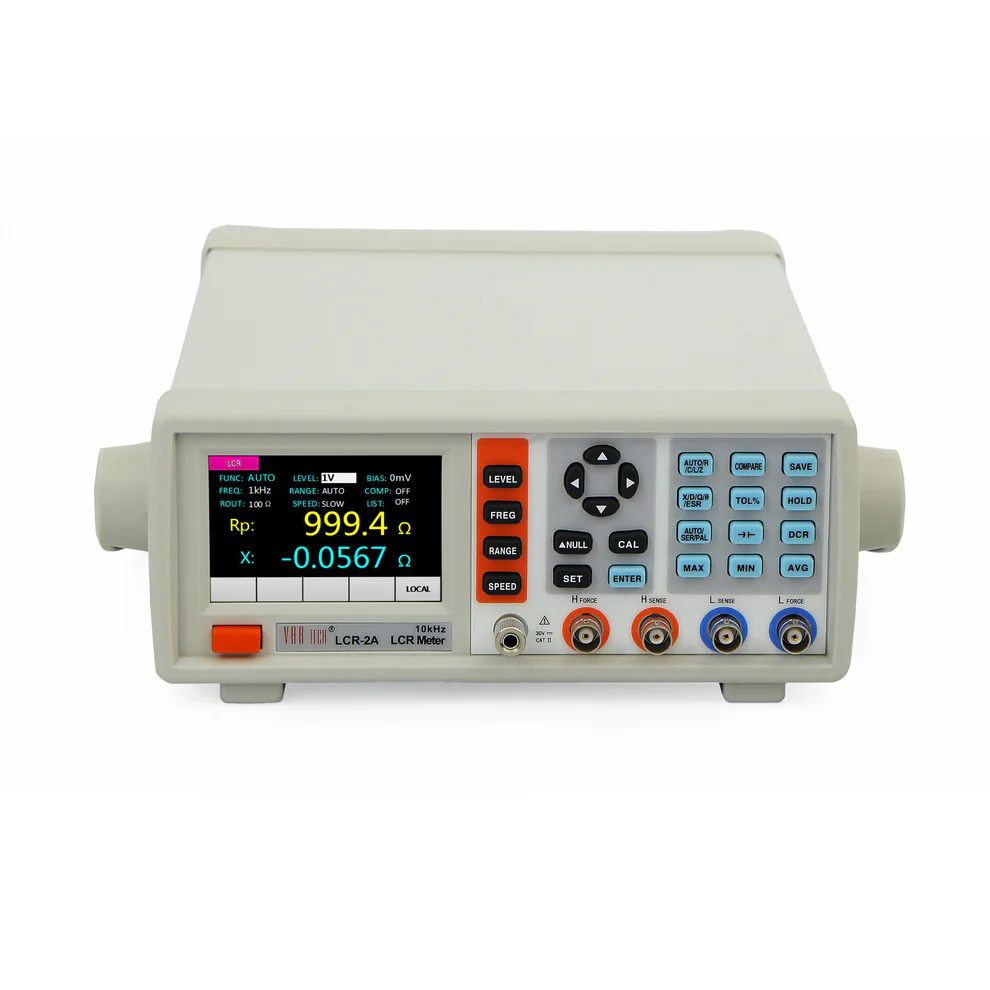

The Vartech LCR-2A is a bench-top LCR meter with a 5-digit 3.5-inch colour LCD, mains operation and 0.1% basic accuracy. It offers a wider measurement range than the LCR-1B — L: 0.001 µH to 9999 H, C: 0.001 pF to 9999 µF, R: 0.0001 Ω to 99.99 MΩ. The test frequency is selectable across 10 fixed steps from 100 Hz to 10 kHz (100, 120, 200, 400, 800 Hz, 1, 2, 4, 8, 10 kHz). Six test levels from 100 to 2000 mV. Open/short correction, five-terminal measurement, 5-gear comparator sorting and optional handler/RS232/USB interface.
Key Features
- Test parameters: L / C / R / Z / X / D / Q / θ / ESR | Basic accuracy: 0.1%
- Test frequency: 10 steps from 100 Hz to 10 kHz (100, 120, 200, 400, 800 Hz, 1K, 2K, 4K, 8K, 10 kHz)
- Wider measurement range than LCR-1B: L to 9999 H, C to 9999 µF, R to 99.99 MΩ
- Automatic identification of component type
- 5-digit display — primary and secondary; 3.5" colour LCD
- Internal bias 0 ~ 1500 mV; six test level options: 100 / 300 / 600 / 1000 / 1500 / 2000 mV
- Open/short correction; five measurement terminals; 5-gear comparator sorting
- Optional handler, RS232 & USB; supports SCPI and LabVIEW
Technical Specifications
| Test Parameters | L / C / R / Z / X / D / Q / θ / ESR |
| Basic Accuracy | 0.1% |
| Test Frequency | 100 Hz / 120 Hz / 200 Hz / 400 Hz / 800 Hz / 1 KHz / 2 KHz / 4 KHz / 8 KHz / 10 KHz (10 steps) |
| Inductance Range | 0.001 µH ~ 9999 H |
| Capacitance Range | 0.001 pF ~ 9999 µF |
| Resistance Range | 0.0001 Ω ~ 99.99 MΩ |
| Display | 5 Digits, 3.5" Colour LCD (Primary & Secondary) |
| Measurement Speed | Fast: 10 / Medium: 5 / Slow: 2 (times per second) |
| Internal Bias | 0 ~ 1500 mV (adjustable in 1 mV steps) |
| Test Level (Vrms) | 100 / 300 / 600 / 1000 / 1500 / 2000 mV |
| Correction | Open / Short |
| Measurement Terminals | Five Terminals |
| Comparator | 5-gear sorting: 3 qualified, 1 failed, 1 ancillary |

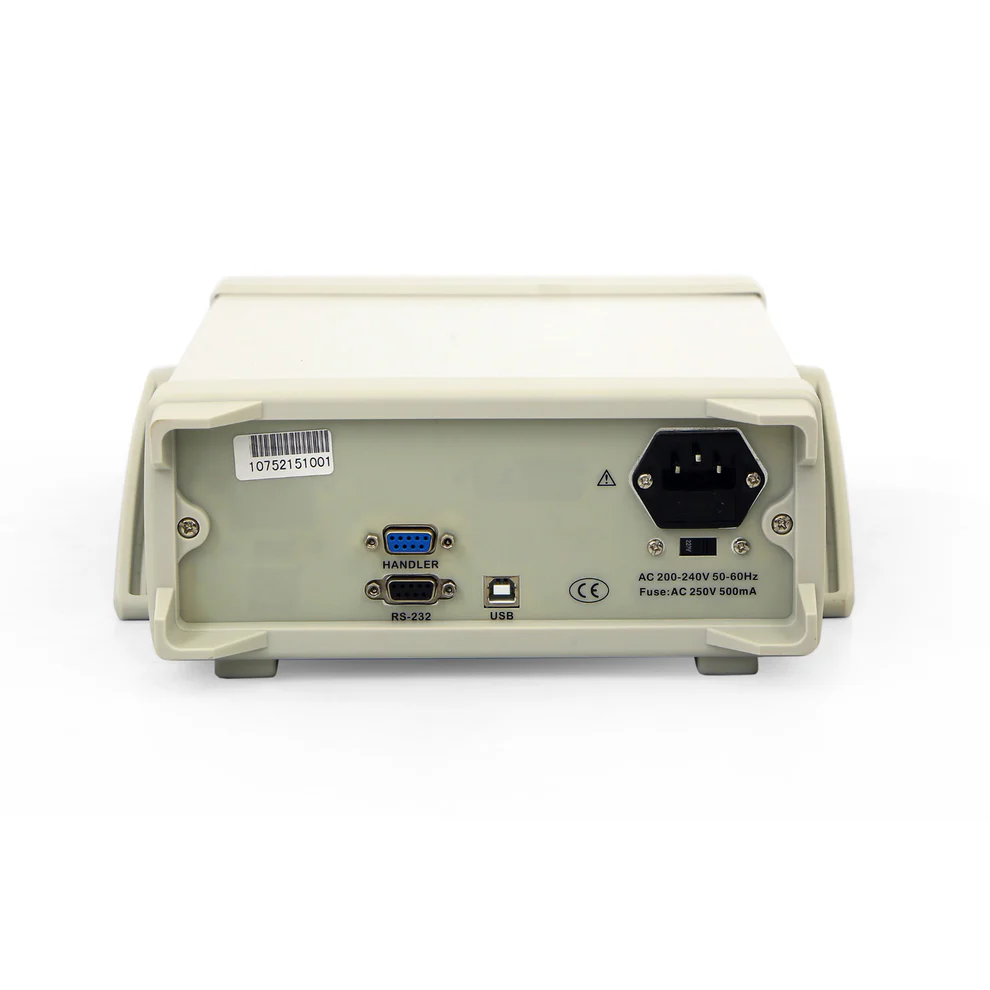

| Interface (Optional) | Handler, RS232 & USB; supports SCPI protocol & LabVIEW |
| Power Supply | 220 V AC ±10%, 50 Hz ±5%, ≤10 W |
| Environment | 0 ~ 40 °C; R.H. <80% |
| Accessories | User's manual, mains cord, 4-terminal Kelvin test leads |
| Dimensions & Weight | 265 (W) × 105 (H) × 305 (D) mm | Approx. 2.3 Kg |
Specifications sourced from the official Vartech product catalogue. Download above for the full datasheet.
