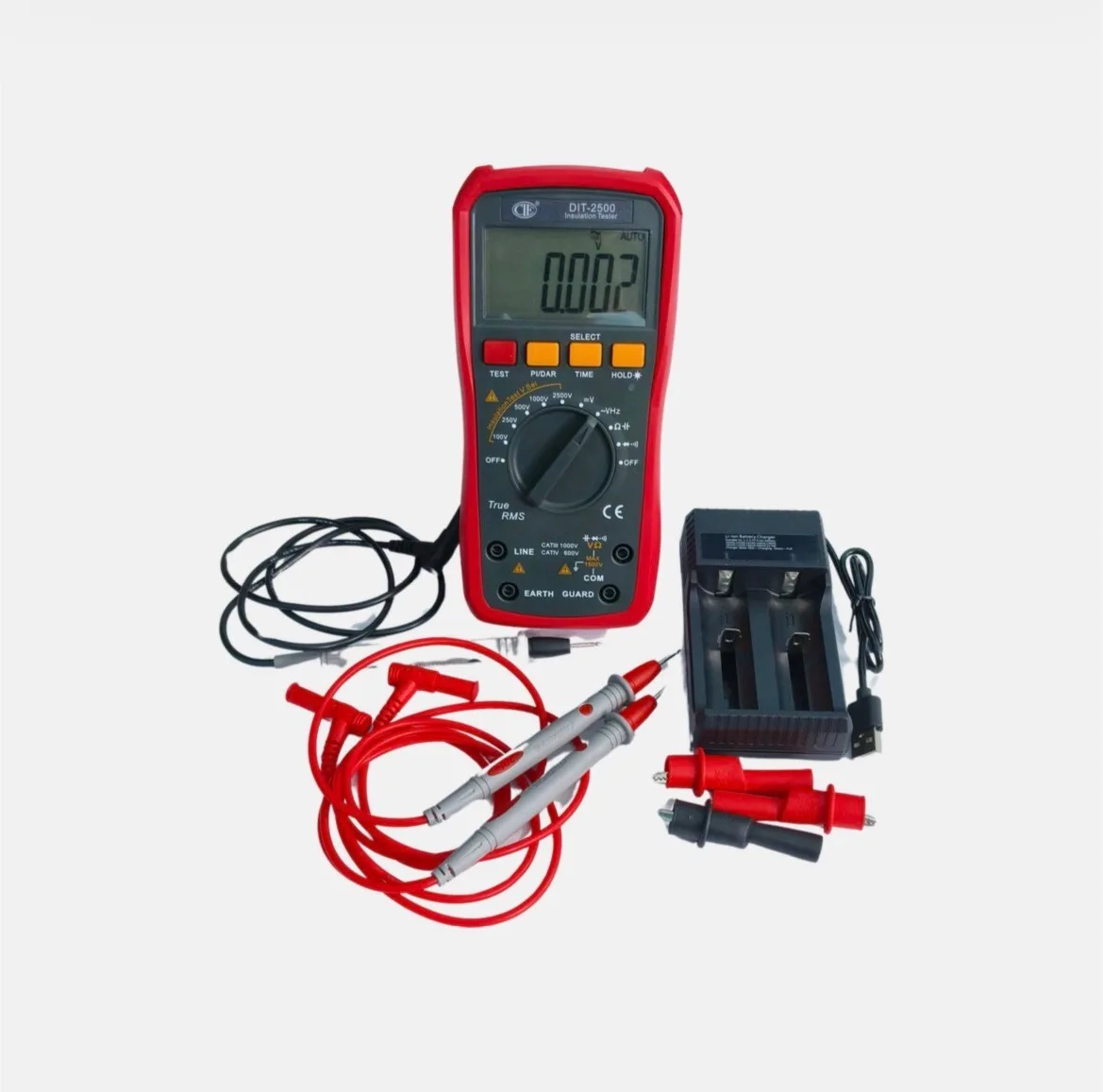

DIT-2500 Digital Insulation Tester + Multimeter - up to 2500 V

Combined digital insulation tester (100, 250, 500, 1000 and 2500 V, up to 50 GΩ) and True-RMS multimeter with DAR, PI, capacitance, frequency and diode test. CAT III 1000 V / CAT IV 600 V.

Download Catalogue (PDF) Request a Quote Enquire on WhatsApp

CIE® Guarantee

CIE® Registered Trade Mark
Calibrated Before Despatch
12-Month Warranty
Made in India
Custom Ranges Available

About This Instrument

The DIT-2500 combines a digital insulation resistance tester with a full-function True-RMS digital multimeter in one handheld instrument. Insulation testing at five selectable voltages (100, 250, 500, 1000 and 2500 V) with resistance measurement up to 50 GΩ at 2500 V, including Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests with timer. Also functions as a general-purpose multimeter: AC/DC voltage up to 1500 V, resistance to 60 MΩ, capacitance to 100 mF, frequency, continuity and diode test. Powered by rechargeable Li-ion batteries (3.7 V × 2). Safety rated CAT III 1000 V / CAT IV 600 V. Features data hold, backlight and auto power-off. Dimensions: 189 × 89 × 55 mm. Weight: approx. 380 g including battery.

Technical Specifications

Specification	Value
Insulation Test Voltage	100 V / 250 V / 500 V / 1000 V / 2500 V
Insulation Resistance Range	By test voltage - 0.1 MΩ – 2 GΩ at 100 V, up to 50 GΩ at 2500 V (see table)
Insulation Accuracy	±(3% + 5) to 399.9 MΩ · ±(5% + 5) 0.4 – 2 GΩ · ±(10% + 5) 2.001 – 50 GΩ
Open Circuit Voltage	90% – 110% of rated test voltage
Short Circuit Current	≥ 1 mA
DAR	1 min : 15 s and 1 min : 30 s
PI	10 min : 60 s
Test Timer	15 s / 30 s / 1 min / 10 min (selectable)
DC Voltage	6 V – 600 V ±(0.5% + 5) · 1500 V ±(1% + 5)
AC Voltage (True-RMS)	6 V – 600 V ±(1.2% + 5) · 1500 V ±(2% + 5), 40 Hz – 1 kHz
Resistance	600 Ω – 60 MΩ
Capacitance	10 nF – 100 mF
Frequency	10 Hz – 20 kHz (ACV 1 – 600 V)
Diode / Continuity	Diode test · continuity buzzer below approx. 50 Ω
Display	LCD, backlit, max. 3999 / 5999 counts, auto-ranging
Terminals	LINE, EARTH, GUARD (insulation) · VΩ, COM (multimeter, max. 1500 V)
Battery	Li-ion 14500, 3.7 V × 2 (rechargeable)
Safety Category	CAT III 1000 V / CAT IV 600 V
Operating Temperature	0 – 40 °C, below 75% RH
Dimensions (L×W×H)	189 × 89 × 55 mm
Weight	Approx. 380 g (incl. battery)
Warranty	12 months against manufacturing defects only

Insulation Resistance Range by Test Voltage

Test Voltage	Measurement Range
100 V	0.1 MΩ – 2 GΩ
250 V	0.25 MΩ – 5 GΩ
500 V	0.5 MΩ – 10 GΩ
1000 V	1 MΩ – 20 GΩ
2500 V	2.5 MΩ – 50 GΩ

Key Applications

Insulation resistance testing on motors, transformers, and cables
DAR and PI testing for insulation quality assessment
General electrical maintenance requiring both insulation and multimeter functions
Switchgear, panel, and cable commissioning

12-Month Warranty · Direct After-Sales Support

Every CIE® instrument carries a 12-month warranty against manufacturing defects only. After-sales support is handled directly by CIE - not a distributor network. Non-standard ranges or custom specifications can be manufactured to your requirement.
